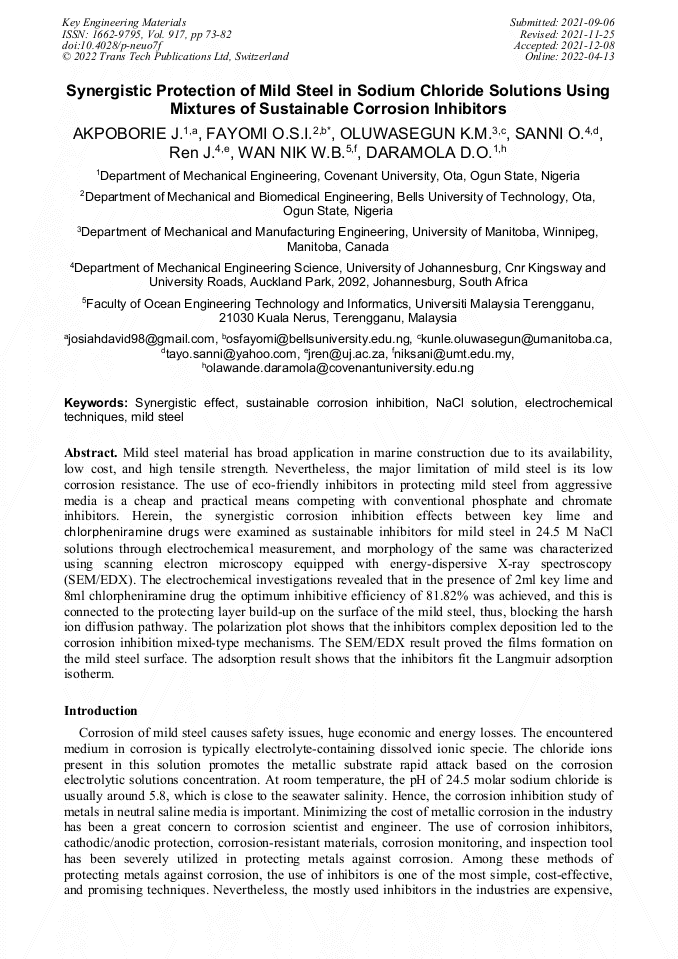

Synergistic Protection of Mild Steel in Sodium Chloride Solutions Using Mixtures of Sustainable Corrosion Inhibitors

Abstract:

Mild steel material has broad application in marine construction, due to their availability, low cost, and high tensile strength. Nevertheless, the major limitation of mild steel is its low corrosion resistance. The use of eco-friendly inhibitors in protecting mild steel from aggressive media is one of the cheap and practical means competing with conventional phosphate and chromate inhibitors. Herein, the synergism corrosion inhibition effects between key lime and chlorpheniramine drug were examined as sustainable inhibitors for mild steel in 24.5 M NaCl solutions through electrochemical measurement, and morphology of the same was characterized using scanning electron microscopy equipped with energy-dispersive X-ray spectroscopy (SEM/EDX). The electrochemical investigations revealed that in the presence of 2ml key lime and 8ml chlorpheniramine drug the optimum inhibitive efficiency of 81.82% was achieved, this is connected to the protecting layer build-up on the surface of the mild steel, thus, blocking the harsh ion diffusion pathway. The polarization plot shows that the inhibitors complex the deposition led to the corrosion inhibition mixed-type mechanisms. The films formed on the mild steel surface were proved by the SEM/EDX result. The adsorption result shows that the inhibitors fit the Langmuir adsorption isotherm. Keywords: Synergistic effect, sustainable corrosion inhibition, NaCl solution, electrochemical techniques, mild steel

• Periodical: Key Engineering Materials (Volume 917)
• Pages: 73-82
• DOI: https://doi.org/10.4028/p-neuo7f
• Online since: April 2022
• Authors: J. Akpoborie, Ojo Sunday Isaac Fayomi*, K.M. Oluwasegun, Omotayo Sanni, J. Ren, Wan Nik Wan Mohd Norsani, D.O. Daramola
• Keywords: Electrochemical Techniques, Mild Steel, NaCl Solution, Sustainable Corrosion Inhibition, Synergistic Effect

References

[1] O. Sanni, A. Popoola, and O. Fayomi, Temperature effect, activation energies and adsorption studies of waste material as stainless steel corrosion inhibitor in sulphuric acid 0.5 M, Journal of Bio-and Tribo-Corrosion. 5(2019) 1-8.

DOI: 10.1007/s40735-019-0280-2

[2] O. Sanni, A. Popoola, and O. Fayomi, Enhanced corrosion resistance of stainless steel type 316 in sulphuric acid solution using eco-friendly waste product, Results in Physics. 9(2018) 225-230.

DOI: 10.1016/j.rinp.2018.02.001

[3] O. Sanni, C. Loto, and A. Popoola, Inhibitive tendency of zinc gluconate for aluminium alloy in sulphuric acid solution, Polish Journal of Chemical Technology. 15(2013) 60-64.

DOI: 10.2478/pjct-2013-0069

[4] D. S. Chauhan, M. Quraishi, A. Sorour, S. K. Saha, and P. Banerjee, Triazole-modified chitosan: a biomacromolecule as a new environmentally benign corrosion inhibitor for carbon steel in a hydrochloric acid solution, RSC advances. 9(2019) 14990-15003.

DOI: 10.1039/c9ra00986h

[5] K. C. d. S. de Lima, V. M. Paiva, D. Perrone, B. Ripper, G. Simoes, M. L. M. Rocco, et al., Glycine max meal extracts as corrosion inhibitor for mild steel in sulphuric acid solution, Journal of Materials Research and Technology. (2020) 912756-12772.

DOI: 10.1016/j.jmrt.2020.09.019

[6] A. Fouda, M. Hegazi, and A. El-Azaly, Henna extract as green corrosion inhibitor for carbon steel in hydrochloric acid solution, Int. J. Electrochem. Sci. 14 (2019) 4668-4682.

DOI: 10.20964/2019.05.47

[7] S. Chen, B. Zhu, and X. Liang, Corrosion inhibition performance of coconut leaf extract as a green corrosion inhibitor for X65 steel in hydrochloric acid solution, Int. J. Electrochem. Sci. 15 (2020) 1-15.

DOI: 10.20964/2020.01.39

[8] X. Zhang, W. Li, G. Yu, X. Zuo, W. Luo, J. Zhang, et al., Evaluation of Idesia polycarpa Maxim fruits extract as a natural green corrosion inhibitor for copper in 0.5 M sulfuric acid solution, Journal of Molecular Liquids, vol. 318, p.114080, (2020).

DOI: 10.1016/j.molliq.2020.114080

[9] M. Belghiti, S. Bouazama, S. Echihi, A. Mahsoune, A. Elmelouky, A. Dafali, et al., Understanding the adsorption of newly Benzylidene-aniline derivatives as a corrosion inhibitor for carbon steel in hydrochloric acid solution: Experimental, DFT and molecular dynamic simulation studies, Arabian Journal of Chemistry. 13 (2020) 1499-1519.

DOI: 10.1016/j.arabjc.2017.12.003

[10] W. Zhang, H.-J. Li, Y. Liu, D. Wang, L. Chen, L. Xie, et al., Stevioside–Zn2+ system as an eco-friendly corrosion inhibitor for C1020 carbon steel in hydrochloric acid solution, Colloids and Surfaces A: Physicochemical and Engineering Aspects. 612 (2021) 126010.

DOI: 10.1016/j.colsurfa.2020.126010

[11] B. Tan, B. Xiang, S. Zhang, Y. Qiang, L. Xu, S. Chen, et al., Papaya leaves extract as a novel eco-friendly corrosion inhibitor for Cu in H2SO4 medium, Journal of Colloid and Interface Science, 582 (2021) 918-931.

DOI: 10.1016/j.jcis.2020.08.093

[12] H. Li, Y. Qiang, W. Zhao, and S. Zhang, A green Brassica oleracea L extract as a novel corrosion inhibitor for Q235 steel in two typical acid media, Colloids and Surfaces A: Physicochemical and Engineering Aspects. 616 (2021) 126077.

DOI: 10.1016/j.colsurfa.2020.126077

[13] S. Javadian, A. Yousefi, and J. Neshati, Synergistic effect of mixed cationic and anionic surfactants on the corrosion inhibitor behavior of mild steel in 3.5% NaCl, Applied Surface Science. 285 (2013) 674-681.

DOI: 10.1016/j.apsusc.2013.08.109

[14] H. Gao, Q. Li, Y. Dai, F. Luo, and H. Zhang, High efficiency corrosion inhibitor 8-hydroxyquinoline and its synergistic effect with sodium dodecylbenzenesulphonate on AZ91D magnesium alloy, Corrosion Science. 52 (2010) 1603-1609.

DOI: 10.1016/j.corsci.2010.01.033

[15] M. Mobin, R. Aslam, and J. Aslam, Non toxic biodegradable cationic gemini surfactants as novel corrosion inhibitor for mild steel in hydrochloric acid medium and synergistic effect of sodium salicylate: Experimental and theoretical approach, Materials Chemistry and Physics. 191(2017) 151-167.

DOI: 10.1016/j.matchemphys.2017.01.037

[16] H. K. Moudgil, S. Yadav, R. Chaudhary, and D. Kumar, Synergistic effect of some antiscalants as corrosion inhibitor for industrial cooling water system, Journal of applied electrochemistry, 39 (2009) 1339-1347.

DOI: 10.1007/s10800-009-9807-4

[17] S. Wu, Q. Zhang, D. Sun, J. Luan, H. Shi, S. Hu, et al., Understanding the synergistic effect of alkyl polyglucoside and potassium stannate as advanced hybrid corrosion inhibitor for alkaline aluminum-air battery, Chemical Engineering Journal. 383 (2020) 123162.

DOI: 10.1016/j.cej.2019.123162

[18] A. Popoola, O. Sanni, C. Loto, and O. Popoola, Corrosion inhibition: synergistic influence of gluconates on mild steel in different corrosive environments. Synergetic interactions of corrosion inhibition tendency of two different gluconates on mild steel in different corrosive environments, Portugaliae Electrochimica Acta. 33 (2015) 353-370.

DOI: 10.4152/pea.201506353

[19] A. Thoume, A. Elmakssoudi, D. B. Left, N. Benzbiria, F. Benhiba, M. Dakir, et al., Amino acid structure analog as a corrosion inhibitor of carbon steel in 0.5 M H2SO4: Electrochemical, synergistic effect and theoretical studies, Chemical Data Collections. 30 (2020) 100586.

DOI: 10.1016/j.cdc.2020.100586

[20] M. Khadiri, R. Idouhli, M. A. Bennouna, A. Aityoub, A. Abouelfida, and A. Benyaïch, Contribution to understanding synergistic effect of Punica granatum extract and potassium iodide as corrosion inhibitor of S355 steel, Corrosion Reviews. 39 (2021) 137-148.

DOI: 10.1515/corrrev-2020-0042

[21] M. Ahangar, M. Izadi, T. Shahrabi, and I. Mohammadi, The synergistic effect of zinc acetate on the protective behavior of sodium lignosulfonate for corrosion prevention of mild steel in 3.5 wt% NaCl electrolyte: Surface and electrochemical studies, Journal of Molecular Liquids. 314, (2020) 113617.

DOI: 10.1016/j.molliq.2020.113617

[22] L. Kaghazchi, R. Naderi, and B. Ramezanzadeh, Synergistic mild steel corrosion mitigation in sodium chloride-containing solution utilizing various mixtures of phytic acid molecules and Zn2+ ions, Journal of Molecular Liquids, 323 (2021) 114589.

DOI: 10.1016/j.molliq.2020.114589

[23] S. S. Rao, B. A. Rao, S. R. Kiran, and B. Sreedhar, Lactobionic Acid as a New Synergist in Combination with Phosphonate–Zn (II) System for Corrosion Inhibition of Carbon Steel, Journal of Materials Science & Technology. 30 (2014) 77-89.

DOI: 10.1016/j.jmst.2013.10.003

[24] S. Abrishami, R. Naderi, and B. Ramezanzadeh, Fabrication and characterization of zinc acetylacetonate/Urtica Dioica leaves extract complex as an effective organic/inorganic hybrid corrosion inhibitive pigment for mild steel protection in chloride solution, Applied Surface Science. 457 (2018) 487-496.

DOI: 10.1016/j.apsusc.2018.06.190

[25] J. Komotori, N. Hisamori, and Y. Ohmori, The corrosion/wear mechanisms of Ti–6Al–4V alloy for different scratching rates, Wear. 263 (2007) 412-418.

DOI: 10.1016/j.wear.2006.11.025

[26] S. Bashir, A. Thakur, H. Lgaz, I.-M. Chung, and A. Kumar, Corrosion inhibition efficiency of bronopol on aluminium in 0.5 M HCl solution: Insights from experimental and quantum chemical studies, Surfaces and Interfaces. 20 (2020) 100542.

DOI: 10.1016/j.surfin.2020.100542

[27] A. Fouda, M. El-morsi, M. Gaber, and M. Fakeeh, A comparative study of the corrosion inhibition of carbon steel in HCl solution by 1‐[(5‐mercapto‐1H‐1, 2, 4‐triazole‐3‐yl) diazenyl] naphthalene‐2‐ol (HL) and its manganese complex, Chemical Data Collections. vol. 28 (2020) 100479.

DOI: 10.1016/j.cdc.2020.100479
