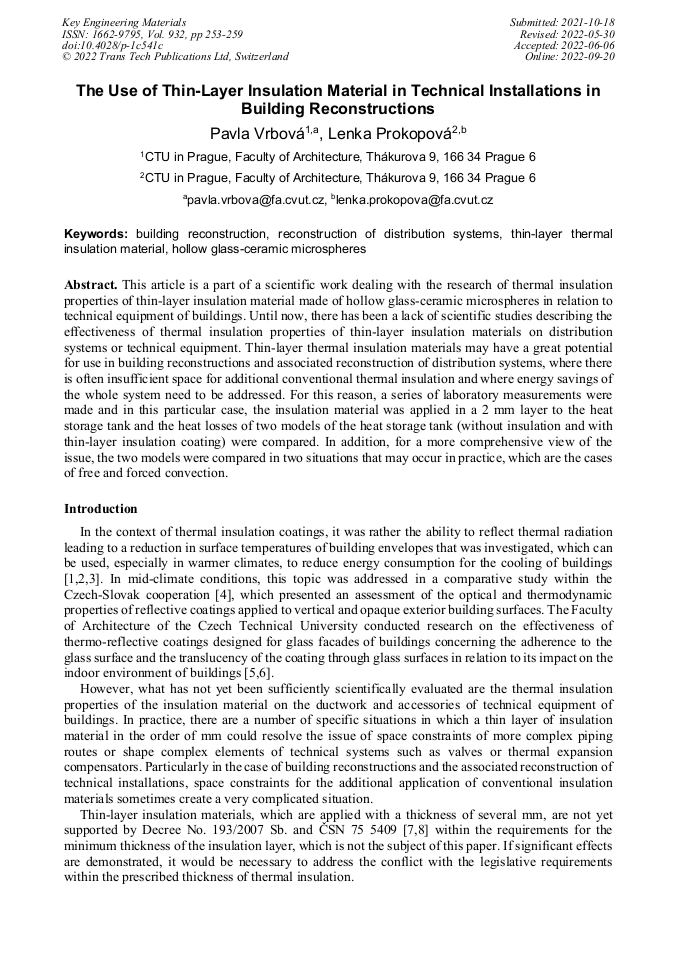

The Use of Thin-Layer Insulation Material in Technical Installations in Building Reconstructions

Abstract:

This article is a part of a scientific work dealing with the research of thermal insulation properties of thin-layer insulation material made of hollow glass-ceramic microspheres in relation to technical equipment of buildings. Until now, there has been a lack of scientific studies describing the effectiveness of thermal insulation properties of thin-layer insulation materials on distribution systems or technical equipment. Thin-layer thermal insulation materials may have a great potential for use in building reconstructions and associated reconstruction of distribution systems, where there is often insufficient space for additional conventional thermal insulation and where energy savings of the whole system need to be addressed. For this reason, a series of laboratory measurements were made and in this particular case, the insulation material was applied in a 2 mm layer to the heat storage tank and the heat losses of two models of the heat storage tank (without insulation and with thin-layer insulation coating) were compared. In addition, for a more comprehensive view of the issue, the two models were compared in two situations that may occur in practice, which are the cases of free and forced convection.

• Periodical: Key Engineering Materials (Volume 932)
• Pages: 253-259
• DOI: https://doi.org/10.4028/p-1c541c
• Online since: September 2022
• Authors: Pavla Vrbová*, Lenka Prokopová
• Keywords: Building Reconstruction, Hollow Glass-Ceramic Microspheres, Reconstruction of Distribution Systems, Thin-Layer Thermal Insulation Material

References

[1] H. Shen, H. Tan and A. Tzempelikos: The effect of reflective coatings on building surface temperatures, indoor environment and energy consumption—An experimental study. Energy and Buildings. Vol. 43 (2011), pp.573-580.

DOI: 10.1016/j.enbuild.2010.10.024

[2] H. Akbari, S. Konopacki and M. Pomerantz: Cooling energy savings potential of reflective roofs for residential and commercial buildings in the United States. Energy. Vol. 24 (1999), pp.391-407.

DOI: 10.1016/s0360-5442(98)00105-4

[3] H. Akbari: Measured energy savings from the application of reflective roofs in two small non-residential buildings. Energy. Vol. 28 (2003), pp.953-967.

DOI: 10.1016/s0360-5442(03)00032-x

[4] M. Čekon, M. Kalousek, J. Hraška and R. Ingeli: Spectral optical properties and thermodynamic performance of reflective coatings in a mild climate zone. Energy and Buildings. Vol. 77 (2014), pp.343-354.

DOI: 10.1016/j.enbuild.2014.04.005

[5] L. Prokopová and D. Bošová: Glass micro bubbles on polycarbonate skylight. Proceedings of the 22nd International Conference Light. 2017, pp.188-193.

[6] F. Novotný, L. Prokopová and D. Bošová: Glass micro-bubbles as additional thermal insulation/shielding for translucent and non-transparent materials. Sanace a rekonstrukce staveb 2017. 2017, pp.110-111.

DOI: 10.4028/www.scientific.net/kem.776.140

[7] ČSN 75 5409: Vnitřní vodovody. Praha, ÚNMZ, (2013).

[8] Vyhláška č. 193/2007 Sb. kterou se stanoví podrobnosti účinnosti užití energie při rozvodu tepelné energie a vnitřním rozvodu tepelné energie a chladu.

[9] ČSN EN 12897+A1: Zásobování vodou – Nepřímo ohřívané tlakové (uzavřené) zásobníkové ohřívače vody. Praha, ÚNMZ, (2020).

[10] ČSN EN 60379: Metody měření funkce elektrických akumulačních ohřívačů vody pro domácnost a podobné účely. Praha, ÚNMZ, (2004).

[11] ČSN EN 15332: Kotle pro ústřední vytápění – Stanovení energetické náročnosti zásobníků na teplou vodu. Praha, ÚNMZ, (2020).

[12] ČSN EN 12977-3: Tepelné solární soustavy a součásti – Soustavy stavěné na zakázku – Část 3: Metody zkoušení parametrů solárních zásobníků pro ohřev vody. Praha, ÚNMZ, (2018).

[13] ČSN EN 12977-4: Tepelné solární soustavy a součásti – Soustavy stavěné na zakázku – Část 4: Metody zkoušení parametrů solárních kombinovaných zásobníků. Praha, ÚNMZ, (2018).

[14] Information on https://vytapeni.tzb-info.cz/teorie-a-schemata/16177-zkouseni-tepelne-ztraty- zasobniku.
