For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Preface
Briquetting Pressure Roles in Selective Reduction Process of Limonitic Nickel Laterite
p.3
Microstructure and Properties of High Frequency Pulse MAG Butt Welded Joints of S355 Steel with Different Diameters
p.11
Toughness Recovery of Welded Pipe API 5L Grade B through Quenching and Tempering Treatment
p.19
The Portevin-Le Chatelier Type for 316L(N) SS at Low Deformation Rate
p.25
Mechanical Properties, Microstructural, and Deep Drawing Formability Analysis on the Annealed CuZn35 Brass Alloy for Cartridge Application
p.31
Straightness Geometric Error Assessment for CNC Milling Machine
p.39
Optimization of Mixing Speed Parameter for Homogeneous Cu-Sn Composite
p.49
Investigation of the Dwelling Time and Compaction Pressure Effect on Mechanical Properties and Microstructure of the Cu-Sn Composite
p.57

The Portevin-Le Chatelier Type for 316L(N) SS at Low Deformation Rate

Article Preview

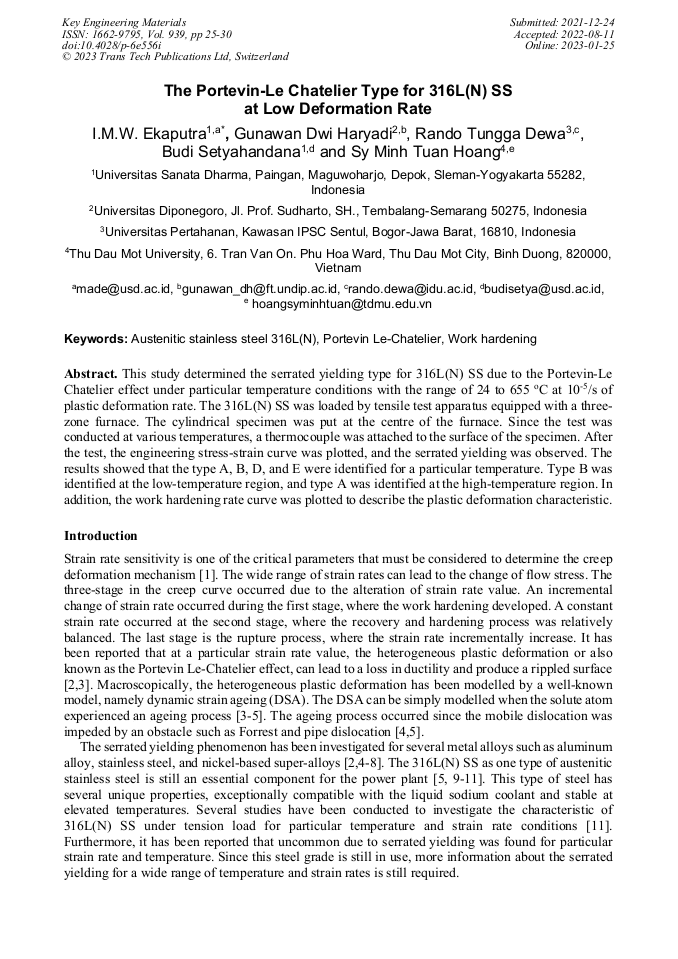

Abstract:

This study determined the serrated yielding type for 316L(N) SS due to the Portevin-Le Chatelier effect under particular temperature conditions with the range of 24 to 655 °C at 10-5/s of plastic deformation rate. The 316L(N) SS was loaded by tensile test apparatus equipped with a three-zone furnace. The cylindrical specimen was put at the centre of the furnace. Since the test was conducted at various temperatures, a thermocouple was attached to the surface of the specimen. After the test, the engineering stress-strain curve was plotted, and the serrated yielding was observed. The results showed that the type A, B, D, and E were identified for a particular temperature. Type B was identified at the low-temperature region, and type A was identified at the high-temperature region. In addition, the work hardening rate curve was plotted to describe the plastic deformation characteristic.

You might also be interested in these eBooks
Mechanical Engineering (ICOME 5th edition) View Preview
Applied Energy Research and Metallurgy View Preview

Info:

Periodical:

Key Engineering Materials (Volume 939)

Pages:

25-30

DOI:

https://doi.org/10.4028/p-6e556i

Citation:

Cite this paper

Online since:

January 2023

Authors:

I Made Wicaksana Ekaputra*, Gunawan Dwi Haryadi, Rando Tungga Dewa, Budi Setyahandana, Hoang Sy Minh Tuan

Keywords:

Austenitic Stainless Steel 316L(N), Portevin Le-Chatelier, Work Hardening

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2023 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] A. K. Gosh, On the measurement of strain-rate sensitivity for deformation mechanism in conventional and ultra-fine grain alloys, Mater. Sci. Eng. A. 463 (2007) 36–40.

Google Scholar

[2] S. Tamimi, A. Andrade-Campos, J. Pinho-da-Cruz, Modelling the Portevin-Le Chatelier effects in aluminium alloys: a review, J. Mech. Behav. Mater. 24 (3–4) (2015) 67–78.

DOI: 10.1515/jmbm-2015-0008

Google Scholar

[3] R. C. Picu, A mechanism for the negative strain-rate sensitivity of dilute solid solutions, Acta Mater. 52 (2004) 3447–3458.

DOI: 10.1016/j.actamat.2004.03.042

Google Scholar

[4] H. Ovri, E. T. Lilleodden, New insights into plastic instability in precipitation strengthened Al–Li alloys, Acta Mater. 89 (2015) 88–97.

DOI: 10.1016/j.actamat.2015.01.065

Google Scholar

[5] I. M. W. Ekaputra, W. G. Kim, J. Y. Park, S. J. Kim, E. S. Kim, Influence of dynamic strain aging on tensile deformation behavior of alloy 617, Nucl. Eng. Technol. 48 (2016) 1387–1395.

DOI: 10.1016/j.net.2016.06.013

Google Scholar

[6] H. Halim, D. S. Wilkinson, M. Niewczas, The Portevin–Le Chatelier (PLC) effect and shear band formation in an AA5754 alloy, Acta Mater. 55 (2007) 4151–4160.

DOI: 10.1016/j.actamat.2007.03.007

Google Scholar

[7] K. K. Alaneme, M. O. Bodunrin, E. A. Okotete, On the nanomechanical properties and local strain rate sensitivity of selected aluminium based composites reinforced with metallic and ceramic particles. J. King Saud Univ. Eng. Sci. (2021).

DOI: 10.1016/j.jksues.2021.02.011

Google Scholar

[8] S. Yang, L. Xue, W. Lu, X. Ling, Experimental study on the mechanical strength and dynamic strain aging of Inconel 617 using small punch test, J. Alloys Compd. 815 (2020) 1–8.

DOI: 10.1016/j.jallcom.2019.152447

Google Scholar

[9] H. D. Kweon, J. W. Kim, O. Song, D. Oh, Determination of true stress-strain curve of type 304 and 316 stainless steels using a typical tensile test and finite element analysis, Nucl. Eng. Technol. 53 (2021) 647–656.

DOI: 10.1016/j.net.2020.07.014

Google Scholar

[10] X. Sun, R. Xing, W. Yu, X. Chen, Uniaxial ratcheting deformation of 316LN stainless steel with dynamic strain aging: experiments and simulation. Int. J. Solids Struct. 207(15) (2020) 196–205.

DOI: 10.1016/j.ijsolstr.2020.10.017

Google Scholar

[11] D. R. Palaparti, V. Ganesan, J. Christopher, G. P. V. Reddy, Tensile flow analysis of austenitic type 316LN stainless steel: effect of nitrogen content. J. Mater. Eng. Perform. 3 (2021).

DOI: 10.1007/s11665-021-05484-y

Google Scholar

[12] ASTM E8 / E8M-21, Standard Test Methods for Tension Testing of Metallic Materials, ASTM International, West Conshohocken, PA (2021).

Google Scholar

[13] ASTM E21-20, Standard Test Methods for Elevated Temperature Tension Tests of Metallic Materials, ASTM International, West Conshohocken, PA (2020).

Google Scholar

[14] P. Rodriguez, Serrated plastic flow. Bull. Mater. Sci. 6 (1984) 653–663.

Google Scholar

[15] E. I. Samuel, B. K. Choudary, K. B. S. Rao, Influence of temperature and strain rate on tensile work hardening behaviour of type 316 LN austenitic stainless steel. Scr. Mater. 46 (2002) 507–512.

DOI: 10.1016/s1359-6462(02)00023-4

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
