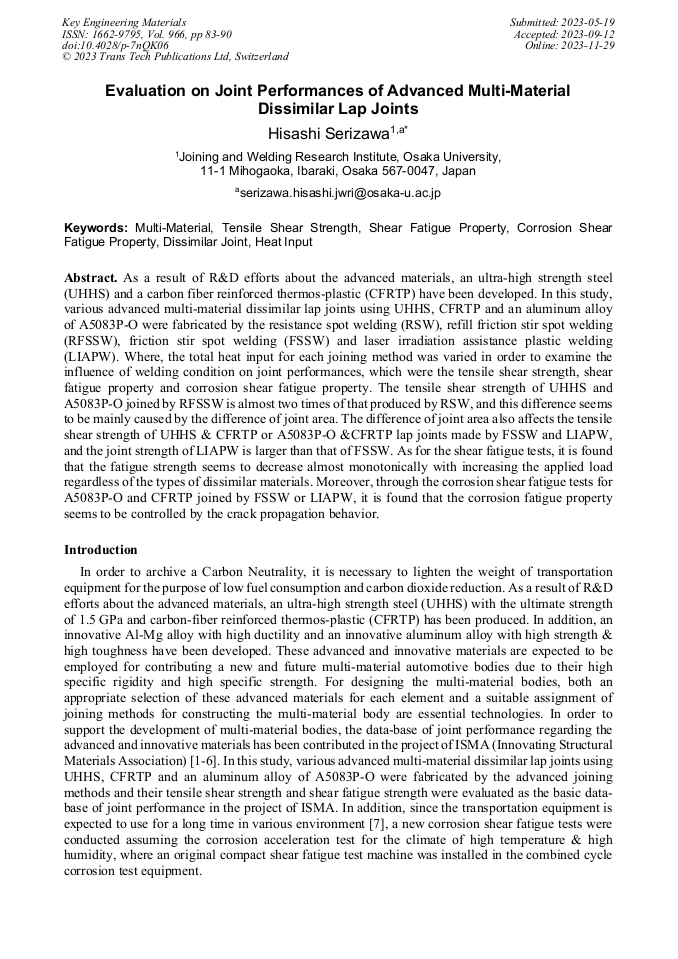

Evaluation on Joint Performances of Advanced Multi-Material Dissimilar Lap Joints

Abstract:

As a result of R&D efforts about the advanced materials, an ultra-high strength steel (UHHS) and a carbon fiber reinforced thermos-plastic (CFRTP) have been developed. In this study, various advanced multi-material dissimilar lap joints using UHHS, CFRTP and an aluminum alloy of A5083P-O were fabricated by the resistance spot welding (RSW), refill friction stir spot welding (RFSSW), friction stir spot welding (FSSW) and laser irradiation assistance plastic welding (LIAPW). Where, the total heat input for each joining method was varied in order to examine the influence of welding condition on joint performances, which were the tensile shear strength, shear fatigue property and corrosion shear fatigue property. The tensile shear strength of UHHS and A5083P-O joined by RFSSW is almost two times of that produced by RSW, and this difference seems to be mainly caused by the difference of joint area. The difference of joint area also affects the tensile shear strength of UHHS & CFRTP or A5083P-O &CFRTP lap joints made by FSSW and LIAPW, and the joint strength of LIAPW is larger than that of FSSW. As for the shear fatigue tests, it is found that the fatigue strength seems to decrease almost monotonically with increasing the applied load regardless of the types of dissimilar materials. Moreover, through the corrosion shear fatigue tests for A5083P-O and CFRTP joined by FSSW or LIAPW, it is found that the corrosion fatigue property seems to be controlled by the crack propagation behavior.

• Periodical: Key Engineering Materials (Volume 966)
• Pages: 83-90
• DOI: https://doi.org/10.4028/p-7nQK06
• Online since: November 2023
• Authors: Hisashi Serizawa*
• Keywords: Corrosion Shear Fatigue Property, Dissimilar Joint, Heat Input, Multi-Material, Shear Fatigue Property, Tensile Shear Strength

References

[1] T. Kishi, New Trends of Research and Development for Structural Materials, Bulletin of the Iron and Steel Institute of Japan, 20-6 (2015) 227-231. (in Japanese)

[2] Y. Hirata, Welding and Joining Technologies in Government Project of Research and Development on Innovative Structural Materials operated by NEDO and ISMA, Journal of the Japan Welding Society, 86-1 (2017) 6-11. (in Japanese)

DOI: 10.2207/jjws.86.6

[3] Hirose, Current Trends and Issues of Dissimilar Materials Joining, Journal of the Japan Welding Society, 87-1 (2018) 5-10. (in Japanese)

[4] Y. Hirata, Comparison of Joint Performances by Various Dissimilar Joining Processes - Research and Development on Welding and Joining Technologies in Government Project Operated by NEDO and ISMA (2) -, Journal of the Japan Welding Society, 89-3 (2020) 181-189. (in Japanese)

DOI: 10.2207/jjws.89.181

[5] T. Kishi, Multi-materials and Materials Integration, Bulletin of the Iron and Steel Institute of Japan, 25-10 (2020) 622-627. (in Japanese)

[6] T. Hyodo and T. Kishi, Research and Development of Innovative Materials and Multi-Materials, Journal of the Japanese Society for Strength and Fracture of Materials, 55, Special Issue (2022) 3-12. (in Japanese)

[7] S. Fujita, T. Kozaki and H. Serizawa, Galvanic Corrosion and its Reliability Evaluation in Joining Dissimilar Materials, Journal of the Japanese Society for Strength and Fracture of Materials, 55, Special Issue (2022) 19-26. (in Japanese)

[8] R. Ohashi, Dissimilar Materials Joining by FSSW, Journal of the Japan Welding Society, 87-1 (2018) 28-32. (in Japanese)

DOI: 10.2207/jjws.87.28

[9] N. Takeoka, T. Miyama, T. Matsuda, T. Ogura, R. Ohashi and A. Hirose, Development of Aluminum Alloy/Galvanized Steel Joining Method Using Refill Friction Stir Spot Welding, Quarterly Journal of the Japan Welding Society, 39-4 (2021) 379-385. (in Japanese)

DOI: 10.2207/qjjws.39.379

[10] Y. Sugimoto, Multi Material Car Body and Dissimilar Material Joining Technologies, Journal of the Japan Welding Society, 87-1 (2018) 66-70. (in Japanese)

DOI: 10.2207/jjws.87.66

[11] Y. Sugimoto and K. Nishiguchi, Effects of Aluminum Surface Treatment on Joining Strength of Aluminum/CFRTP Friction Stir Spot Welding, Journal of the Surface Finishing Society of Japan, 72-12 (2021) 664-667. (in Japanese)

DOI: 10.4139/sfj.72.664

[12] T. Ishizaka, H. Okada, Y. Yusa, K. Chiba, H. Murakawa, H. Serizawa, M. Shibahara and S. Tanaka, Fracture Mechanics Analysis System to Evaluate Failure Mode of Spot Welded Joint, Proceeding of the International Symposium on Visualization in Joining & Welding Science through Advanced Measurements and Simulation (Visual-JW2016), 1 (2016) 243-244.

[13] M. Yasuyama, K. Ogawa and T. Taka, Spot Welding of Aluminum and Steel Sheet with insert of Aluminum Clad Steel Sheet - Spot Welding of Aluminum and Steel Sheet (I) -, Quarterly Journal of the Japan Welding Society, 14-2 (1996) 314-320. (in Japanese).

DOI: 10.2207/qjjws.14.314

[14] E. C. Hartmann and G. W. Stickley, Summary of Results of Tests Made by Aluminum Research Laboratories of Spot-Welded Joints and Structural Elements, Welding Journal, 26-4 (1947) 233s-251s.
