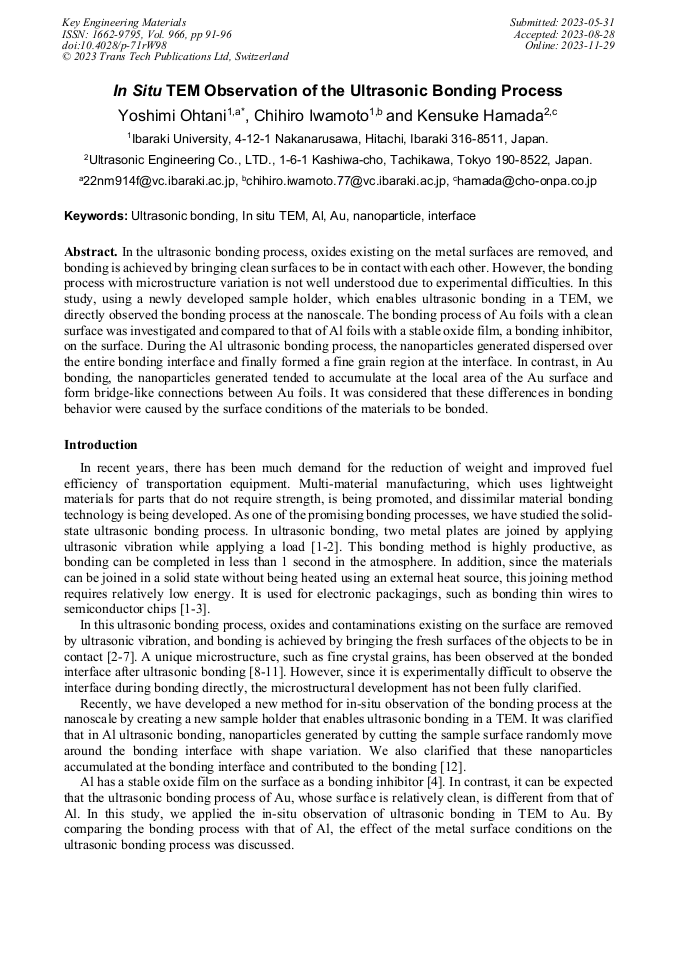

In Situ TEM Observation of the Ultrasonic Bonding Process

Abstract:

In the ultrasonic bonding process, oxides existing on the metal surfaces are removed, and bonding is achieved by bringing clean surfaces to be in contact with each other. However, the bonding process with microstructure variation is not well understood due to experimental difficulties. In this study, using a newly developed sample holder, which enables ultrasonic bonding in a TEM, we directly observed the bonding process at the nanoscale. The bonding process of Au foils with a clean surface was investigated and compared to that of Al foils with a stable oxide film, a bonding inhibitor, on the surface. During the Al ultrasonic bonding process, the nanoparticles generated dispersed over the entire bonding interface and finally formed a fine grain region at the interface. In contrast, in Au bonding, the nanoparticles generated tended to accumulate at the local area of the Au surface and form bridge-like connections between Au foils. It was considered that these differences in bonding behavior were caused by the surface conditions of the materials to be bonded.

• Periodical: Key Engineering Materials (Volume 966)
• Pages: 91-96
• DOI: https://doi.org/10.4028/p-71rW98
• Online since: November 2023
• Authors: Yoshimi Otani*, Chihiro Iwamoto, Kensuke Hamada
• Keywords: Aluminium, Au, In Situ TEM, Interface, Nanoparticle, Ultrasonic Bonding

References

[1] Shuji NAKATA, Micro Joining Technology and Its Application to Assembly of Microelectrenics, The Horological Insitute of Japan, (1986) 116.

[2] G.G. Harman,Wire Bonding in Microelectronics, third ed., McGraw-Hill Professional, 2010.

[3] Welding Handbook ,ninth ed., American Welding Society, 2015.

[4] H.A mohamed, J.WASHBURN,Mechanism of Solid State Pressure Welding , (1975) 302-s.

[5] G. Harman and J. Albers, The Ultrasonic Welding Mechanism as Applied to Aluminum-and Gold-Wire Bonding in Microelectronics, in IEEE Transactions on Parts, Hybrids, and Packaging 13-4 (1977) 406-412.

DOI: 10.1109/tphp.1977.1135225

[6] Krzanowski, J.E., Murdeshwar, N. Deformation and bonding processes in aluminum ultrasonic wire wedge bonding. J. Electron. Mater. 19 (1990) 919–928.

DOI: 10.1007/bf02652917

[7] Yangyang Long, Jens Twiefel, Jörg Wallaschek,Contact mechanics and friction processes in ultrasonic wire bonding - Basic theories and experimental investigations,Journal of Sound and Vibration 468 (2020) 115021.

DOI: 10.1016/j.jsv.2019.115021

[8] J. E. Krzanowski,A transmission electron microscopy study of ultrasonic wire bonding,in IEEE Transactions on Components, Hybrids, and Manufacturing Technology 13-1 (1990) 176-181.

DOI: 10.1109/33.52867

[9] Yang, J.,Cao, B.,Lu, Q. The Effect of Welding Energy on the Microstructural and Mechanical Properties of Ultrasonic-Welded Copper Joints. Materials 10-2 (2017) 193.

DOI: 10.3390/ma10020193

[10] Ninggang Shen, Avik Samanta, Hongtao Ding, Wayne W. Cai,Simulating microstructure evolution of battery tabs during ultrasonic welding,Journal of Manufacturing Processes 23,(2016).

DOI: 10.1016/j.jmapro.2016.04.005

[11] Zhang, Z., Wang, K., Li, J. et al. Investigation of Interfacial Layer for Ultrasonic Spot Welded Aluminum to Copper Joints. Sci Rep 7 (2017) 12505.

DOI: 10.1038/s41598-017-12164-2

[12] Chihiro Iwamoto,Yoshimi Ohtani,Kensuke Hamada,Microstructure variation in the ultrasonic bonding process between Al sheets observed by in-situ transmission electron microscopy,Scripta Materialia 234 (2023) 115560.

DOI: 10.1016/j.scriptamat.2023.115560

[13] E. Ide, S. Angata, A. Hirose, K.F. Kobayashi,Metal–metal bonding process using Ag metallo-organic nanoparticles,Acta Materialia 53-8 (2005) 2385-2393.

DOI: 10.1016/j.actamat.2005.01.047
