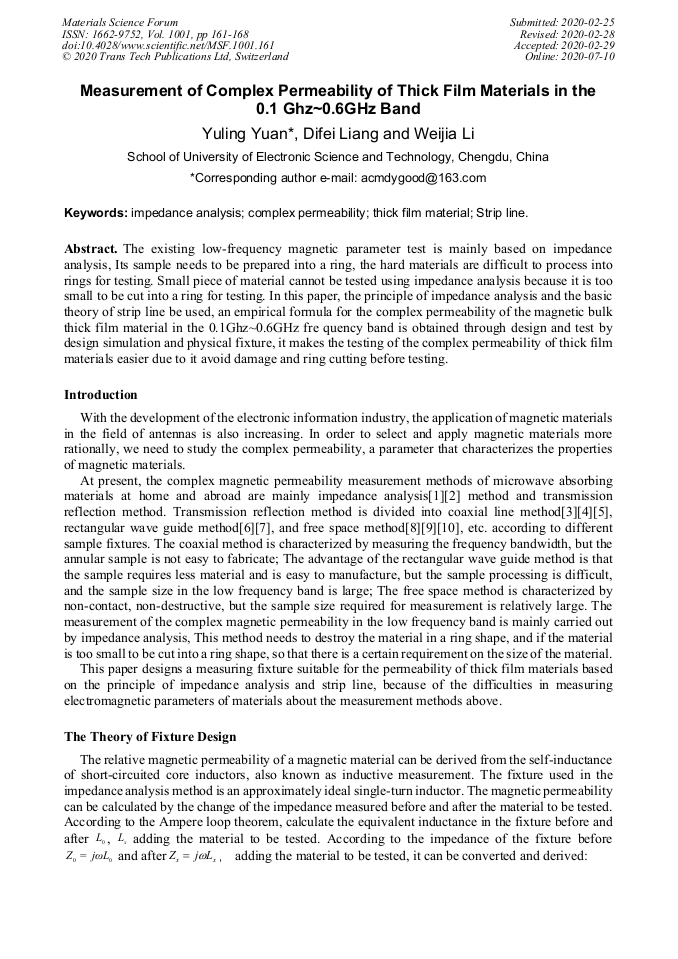

Measurement of Complex Permeability of Thick Film Materials in the 0.1 GHz~0.6GHz Band

Abstract:

The existing low-frequency magnetic parameter test is mainly based on impedance analysis,Its sample needs to be prepared into a ring,the hard materials are difficult to process into rings for testing. Small piece of material cannot be tested using impedance analysis because it is too small to be cut into a ring for testing. In this paper, the principle of impedance analysis and the basic theory of strip line be used, an empirical formula for the complex permeability of the magnetic bulk thick film material in the 0.1Ghz~0.6GHz frequency band is obtained through design and test by design simulation and physical fixture, it makes the testing of the complex permeability of thick film materials easier due to it avoid damage and ring cutting before testing.

• Periodical: Materials Science Forum (Volume 1001)
• Pages: 161-168
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1001.161
• Online since: July 2020
• Authors: Yu Ling Yuan*, Di Fei Liang, Wei Jia Li
• Keywords: Complex Permeability, Impedance Analysis, Strip Line, Thick Film Materials

References

[1] Solutions for Measuring Permittivity and Permeability with LCR Meters and Impedance Analyzers. Keysight Technologies, https://literature.cdn.keysight.com/litweb/pdf/5980-2862CHCN.pdf?id=1000002028:epsg:apn.

[2] Keysight Technologies Basics of Measuring the Dielectric Properties of Materials Application Note. Keysight Technologies, https://literature.cdn.keysight.com/litweb/pdf/5989-2589CHCN.pdf?id=670519.

[3] Standard test method for measuring relative complex permittivity and relative magnetic permeability of solid materials. ASTM Standard D7449/D7449M-08.

DOI: 10.1520/d5568-14

[4] Smith D.R, Schultz S, Markos P, third ed., Determination of Effective Permittivity and Permeability of Metamaterials from Reflection and Transmission Coefficients,J. Phys.rev.b, 2001, 65(19):195104.

DOI: 10.1103/physrevb.65.195104

[5] Dai Yaqi, 2015 Automatic Measurement System of Complex Permittivity and Permeability for Microwave Absorbing Materials Using Coaxial Transmission/Reflection Method, D.

[6] Li Tao, 2015 Test technology of electromagnetic properties of materials based on rectangular waveguide transmission line, D.

[7] Kai Jinxin, 2013 Measurement of properties of microwave materials by transmission/reflection algorithm based on rectangular waveguide over K & Ka band, D.

[8] D.K. GHODGAONKAR, V.V.VARADAN and V.K.VARADAN, Free- Space measurement of complex permit-tivity and complex permeability of magnetic materials atmi-crowave frequencies. IEEE Transactions on Instrumentationand Measurement, Vol.39, No.2, April, (1990).

DOI: 10.1109/19.52520

[9] Wang Y C, Guo G F, Wang J, third ed., 2014 Aerospace Materials & Technology (in Chinese).

[10] Wang J 2013 Free Sace Measurement of Complex Permittivity and Complex Permeability at Microwave Frequencies, D.

[11] David M. Pozar, 2015 Microwave Engineering 3nd edn.
