For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Preface
Enlarged Zn, Mg Contents with a same Zn/Mg Ratio Improve Fatigue Crack Propagation Resistance of Al-Zn-Mg-Cu Alloys with T7651 State
p.3
Residual Stress Distribution of Non-Uniform Quenching in Al-Zn-Mg-Cu Aluminum Alloy Thick Plate
p.11
Flow Stress Behavior of Al-3.5Cu-1.0Li-0.4Mg-0.6Zn-0.3Ag Alloy under Hot Tension
p.20
Effect of Solution Heat Treatment on Microstructure and Mechanical Properties of Al-Mg-Si Alloy
p.26
Severe Plastic Deformation-Key Features, Methods and Application
p.31
Study on the Precipitation Behavior of Precipitates of 7075 Aluminum Alloy Friction Stir Welding Joint
p.37
The Influence of Controlled Rolling and Cooling on Microstructure and Mechanical Properties of Marine Steel
p.47
Effect of Cooling Methods on Microstructure and Mechanical Properties of Ti-3573 Alloy after Solution Treatment
p.54

Flow Stress Behavior of Al-3.5Cu-1.0Li-0.4Mg-0.6Zn-0.3Ag Alloy under Hot Tension

Article Preview

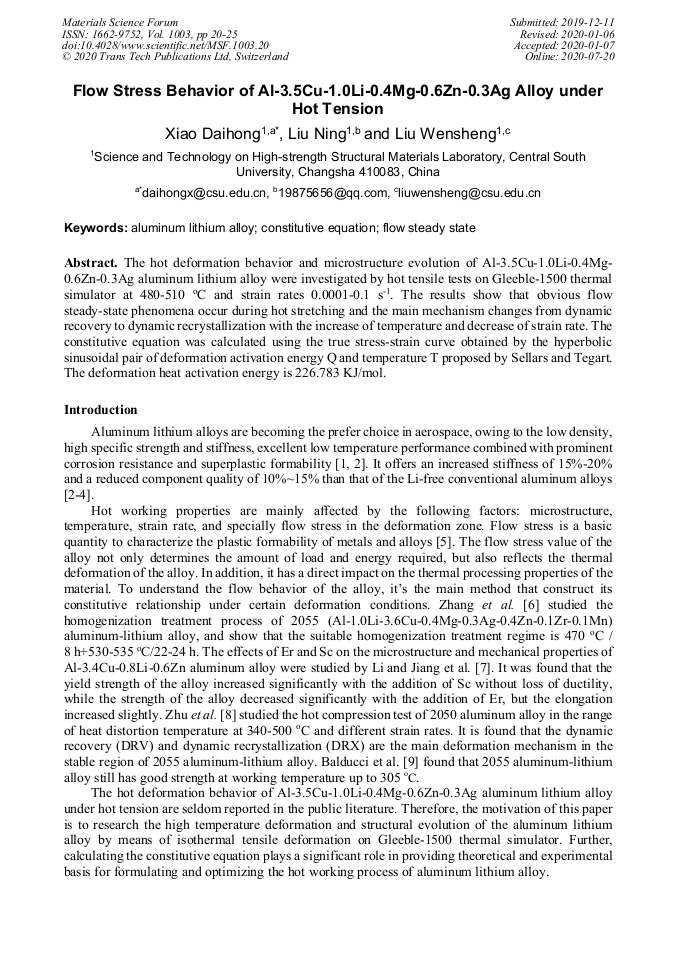

Abstract:

The hot deformation behavior and microstructure evolution of Al-3.5Cu-1.0Li-0.4Mg- 0.6Zn-0.3Ag aluminum lithium alloy were investigated by hot tensile tests on Gleeble-1500 thermal simulator at 480-510 °C and strain rates 0.0001-0.1 s-1. The results show that obvious flow steady-state phenomena occur during hot stretching and the main mechanism changes from dynamic recovery to dynamic recrystallization with the increase of temperature and decrease of strain rate. The constitutive equation was calculated using the true stress-strain curve obtained by the hyperbolic sinusoidal pair of deformation activation energy Q and temperature T proposed by Sellars and Tegart. The deformation heat activation energy is 226.783 KJ/mol.

You might also be interested in these eBooks
Materials for Modern Technologies VI View Preview

Info:

Periodical:

Materials Science Forum (Volume 1003)

Pages:

20-25

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.1003.20

Citation:

Cite this paper

Online since:

July 2020

Authors:

Dai Hong Xiao*, Ning Liu, Wen Sheng Liu

Keywords:

Aluminum Lithium Alloy, Constitutive Equation, Flow Steady State

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2020 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] R.J. Rioja, Fabrication methods to manufacture isotropic Al-Li alloys and products for space and aerospace applications, Mater. Sci. Eng. A 257 (1998) 100-107.

DOI: 10.1016/s0921-5093(98)00827-2

Google Scholar

[2] E. Starke Jr., J. Staley, Application of modern aluminum alloys to aircraft, Prog. Aerosp. Sci. 32 (1996) 131-172.

Google Scholar

[3] R. Rioja, C. Giummarra, S. Cheong, The role of crystallographic texture on the performance of flat rolled aluminum products for aerospace applications, in: Light Metals-warrandale -Proceedings, TMS, 2008, p.1065.

Google Scholar

[4] Z. Li, R. Mirshams, E. Kenik, P. Hartley, Effect of stretching prior to aging on mechanical properties in Al-Cu-Li (2195) alloy, Light Weight Alloys Aerosp. Appl. IV (1997) 117-127.

Google Scholar

[5] X. Huan, Cryogenic tank and application of aluminium-lithium alloy, Missiles Space Veh. 6 (2001) 008.

Google Scholar

[6] W. Tack, L. Loechel, Weldalite™ 049: applicability of a new high strength, weldable Al-Li-Cu alloy, aluminum-lithium alloys V, in: E.A. Starke, T.H. Sanders (Eds.), Materials and Component Engineering Publication, Birmingham, England, 1989, pp.1457-1467.

Google Scholar

[7] T. Warner, Recently-developed aluminium solutions for aerospace applications, Mater. Sci. Forum Trans. Tech. Publ. (2006) 1271-1278.

DOI: 10.4028/www.scientific.net/msf.519-521.1271

Google Scholar

[8] G.T. Kridli, A.S. El-Gizawy, R. Lederich, Development of process maps for superplastic forming of Weldalite™ 049, Mater. Sci. Eng. A 244 (1998) 224-232.

DOI: 10.1016/s0921-5093(97)00545-5

Google Scholar

[9] V. Jain, K. Jata, R. Rioja, J. Morgan, A. Hopkins, Processing of an experimental Aluminum lithium alloy for controlled microstructure, J. Mater. Process. Technol. 73 (1998) 108-118.

DOI: 10.1016/s0924-0136(97)00219-7

Google Scholar

[10] H. Yin, H. Li, X. Su, D. Huang, Processing maps and microstructural evolution of isothermal compressed AleCueLi alloy, Mater. Sci. Eng. A 586 (2013) 115-122.

DOI: 10.1016/j.msea.2013.07.084

Google Scholar

[11] G.J. Reddy, N. Srinivasan, A.A. Gokhale, B. Kashyap, Processing map for hot working of spray formed and hot isostatically pressed AleLi alloy (UL40), J. Mater. Process. Technol. 209 (2009) 5964e5972.

DOI: 10.1016/j.jmatprotec.2009.07.016

Google Scholar

[12] N. Nayan, S.V.S.N. Murty, A.K. Jha, B. Pant, S. Sharma, K.M. George, G. Sastry, Processing and characterization of Al-Cu-Li alloy AA2195 undergoing scale up production through the vacuum induction melting technique, Mater. Sci. Eng. A 576 (2013) 21-28.

DOI: 10.1016/j.msea.2013.03.054

Google Scholar

[13] N. Nayan, S.V.S.N. Murty, S.C. Sharma, K. Sreekumar, P.P. Sinha, Optimization of homogenization parameters of Al-Cu-Li alloy cast ingots using calorimetry and metallographic techniques, Mater. Sci. Forum, Trans Tech Publ (2012) 557-562.

DOI: 10.4028/www.scientific.net/msf.710.557

Google Scholar

[14] S.V.S. Narayana Murty, B.Nageswara Rao, On the flow localization concepts in the processing maps of IN718, Mater. Sci. Eng. A 267 (1999) 159-161.

DOI: 10.1016/s0921-5093(99)00122-7

Google Scholar

[15] F. Humphreys, M. Hatherly, Recrystallization and Related Annealing Phenomena, Elsevier, (2004).

Google Scholar

[16] N. Gurao, R. Kapoor, S. Suwas, Deformation behaviour of commercially pure titanium at extreme strain rates, Acta Mater. 59 (2011) 3431-3446.

DOI: 10.1016/j.actamat.2011.02.018

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
