Effect of Different Firing Temperature on Thermal Conductivity of Ceramic Tiles

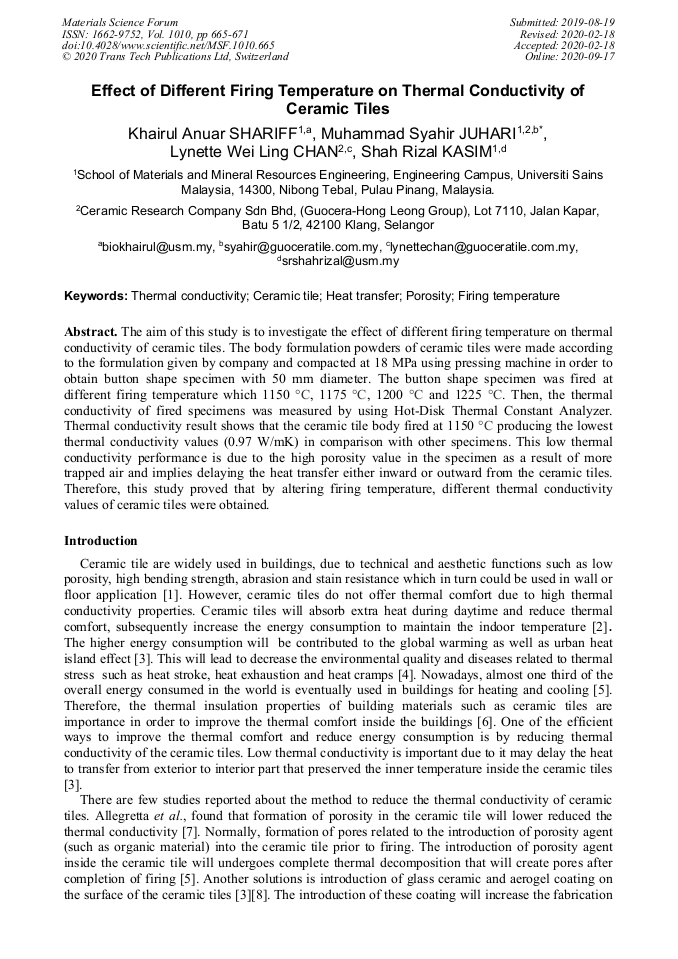

Abstract:

The aim of this study is to investigate the effect of different firing temperature on thermal conductivity of ceramic tiles. The body formulation powders of ceramic tiles were made according to the formulation given by company and compacted at 18 MPa using pressing machine in order to obtain button shape specimen with 50 mm diameter. The button shape specimen was fired at different firing temperature which 1150°C, 1175°C, 1200°C and 1225°C. Then, the thermal conductivity of fired specimens was measured by using Hot-Disk Thermal Constant Analyzer. Thermal conductivity result shows that the ceramic tile body fired at 1150 °C producing the lowest thermal conductivity values (0.97 W/mK) in comparison with other specimens. This low thermal conductivity performance is due to the high porosity value in the specimen as a result of more trapped air and implies delaying the heat transfer either inward or outward from the ceramic tiles. Therefore, this study proved that by altering firing temperature, different thermal conductivity values of ceramic tiles were obtained.

• Periodical: Materials Science Forum (Volume 1010)
• Pages: 665-671
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1010.665
• Online since: September 2020
• Authors: Khairul Anuar Shariff, Muhammad Syahir Juhari*, Lynette Wei Ling Chan, Shah Rizal Kasim
• Keywords: Ceramic Tile, Firing Temperature, Heat Transfer, Porosity, Thermal Conductivity

References

[1] N.T. Selli, Development of anorthite based white porcelain stoneware tile compositions, Ceram. Int. 41 (2015) 7790–7795.

DOI: 10.1016/j.ceramint.2015.02.112

[2] C. Effting, S. Güths, O.E. Alarcon, Evaluation of the thermal comfort of ceramic floor tiles, Mater. Res. 10 (2007) 301–307.

DOI: 10.1590/s1516-14392007000300016

[3] E. Enríquez, V. Fuertes, M.J. Cabrera, J. Seores, D. Muñoz, J.F. Fernández, New strategy to mitigate urban heat island effect: Energy saving by combining high albedo and low thermal diffusivity in glass ceramic materials, Sol. Energy. 149 (2017) 114–124.

DOI: 10.1016/j.solener.2017.04.011

[4] L.M. Schabbach, D.L. Marinoski, S. Güths, A.M. Bernardin, M.C. Fredel, Pigmented glazed ceramic roof tiles in Brazil: Thermal and optical properties related to solar reflectance index, Sol. Energy. 159 (2018) 113–124.

DOI: 10.1016/j.solener.2017.10.076

[5] M. Sutcu, Influence of expanded vermiculite on physical properties and thermal conductivity of clay bricks, Ceram. Int. 41 (2015) 2819–2827.

DOI: 10.1016/j.ceramint.2014.10.102

[6] M.L. Gualtieri, A.F. Gualtieri, S. Gagliardi, P. Ruffini, R. Ferrari, M. Hanuskova, Thermal conductivity of fired clays: Effects of mineralogical and physical properties of the raw materials, Appl. Clay Sci. 49 (2010) 269–275.

DOI: 10.1016/j.clay.2010.06.002

[7] I. Allegretta, G. Eramo, D. Pinto, A. Hein, The effect of mineralogy, microstructure and firing temperature on the effective thermal conductivity of traditional hot processing ceramics, Appl. Clay Sci. 135 (2017) 260–270.

DOI: 10.1016/j.clay.2016.10.001

[8] U. Berardi, Development of glazing systems with silica aerogel, Energy Procedia. 78 (2015) 394–399.

DOI: 10.1016/j.egypro.2015.11.682

[9] Q. Bao, W. Dong, J. Zhou, K. Liu, T. Zhao, Influence of calcite on the microstructure and sintering properties of the porcelain ceramic tiles, p.88, (2017) 881–886.

DOI: 10.2109/jcersj2.17105

[10] F. Contartesi, F.G. Melchiades, A.O. Boschi, Anticipated Overfiring in Porcelain Tiles: Effects of the firing cycle and green bulk density, Bol. La Soc. Esp. Ceram. Y Vidr. (2018) 1–8.

DOI: 10.1016/j.bsecv.2018.07.001

[11] A. Pavese, L. Pagliari, I. Adamo, V. Diella, F. Francescon, Effects of particle size distribution and starting phase composition in Na-feldspar/kaolinite system at high temperature, J. Eur. Ceram. Soc. 35 (2014) 1327–1335.

DOI: 10.1016/j.jeurceramsoc.2014.10.035

[12] E. Eren Gültekin, The effect of heating rate and sintering temperature on the elastic modulus of porcelain tiles, Ultrasonics. 83 (2018) 120–125.

DOI: 10.1016/j.ultras.2017.06.005

[13] J. García-Ten, M.J. Orts, A. Saburit, G. Silva, Thermal conductivity of traditional ceramics: Part II: Influence of mineralogical composition, Ceram. Int. 36 (2010) 2017–(2024).

DOI: 10.1016/j.ceramint.2010.05.013

[14] S. Kitouni, a Harabi, Sintering and mechanical properties of porcelains prepared from algerian raw materials ( Sinterização e propriedades mecânicas de porcelanas, Cerâmica. 57 (2011) 453–460.

DOI: 10.1590/s0366-69132011000400013

[15] Y. Kobayashi, O. Ohira, Y. Ohashi, E. Kato, Effect of Firing Temperature on Bending Strength of Porcelains for Tableware, J. Am. Ceram. Soc. 75 (1992) 1801–1806.

DOI: 10.1111/j.1151-2916.1992.tb07200.x

[16] J.G. Ten, M.J. Orts, A. Saburit, G. Silva, thermal conductivity of traditional ceTramics. Part I: Influence of bulk density and firing temperature, Ceram. Int. 36 (2010) 1951–(1959).

DOI: 10.1016/j.ceramint.2010.05.012

[17] H. Machrafi, G. Lebon, Size and porosity effects on thermal conductivity of nanoporous material with an extension to nanoporous particles embedded in a host matrix, Phys. Lett. Sect. A Gen. At. Solid State Phys. 379 (2015) 968–973.

DOI: 10.1016/j.physleta.2015.01.027

[18] K. Almadhoni, S. Khan, ThermophysicalProperties of Cellular Aluminium andCeramic Particulate / Aluminium Composites ThermophysicalProperties of Cellular Aluminium andCeramic Particulate / Aluminium Composites, 5 (2015) 17–27.
