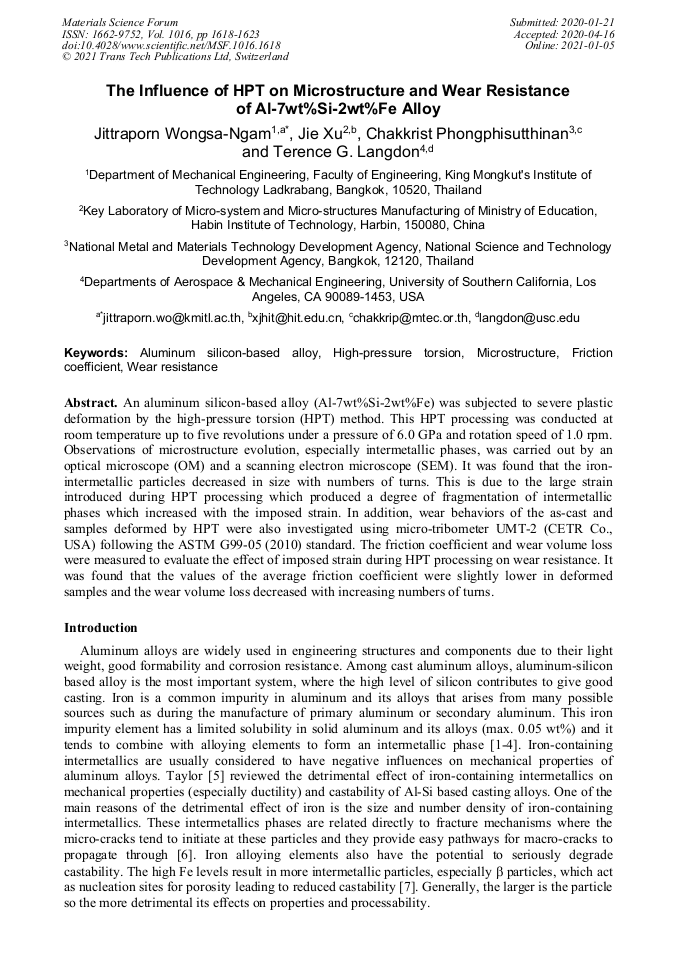

The Influence of HPT on Microstructure and Wear Resistance of Al-7wt%Si-2wt%Fe Alloy

Abstract:

An aluminum silicon-based alloy Al-7wt%Si-2wt%Fe, was processed by severe plastic deformation technique in high-pressure torsion (HPT) at room temperature under a pressure of 6.0 GPa and rotational speed of 1.0 rpm with various numbers of turns up to five. Microstructure evolution, especially iron-containing intermetallic phases, was observed using an optical microscope and a scanning electron microscope (SEM). The microstructure results demonstrate that the large strains introduced by HPT at ambient temperature cause fragmentation of iron-intermetallic particles. The degree of fragmentation increases with increasing numbers of turns so that the intermetallic particles decreased in size with increasing imposed strain. In addition, the wear properties were evaluated using ball-on-disc dry sliding testing for both the as-cast material and the alloy processed by HPT using micro-tribometer UMT-2 (CETR Co., USA) following the ASTM G99-05 (2010) standard. The wear tests were conducted on the surface of the samples at 1.5 mm from the disc center under a normal load of 5 N with a rotational speed of 60 rpm and sliding time of 10 min. The friction coefficient and wear volume loss were examined to evaluate the effect of HPT on wear resistance. The results show that the samples processed by HPT have lower average values for the COF and wear volume loss than that of unprocessed samples.

• Periodical: Materials Science Forum (Volume 1016)
• Pages: 1618-1623
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1016.1618
• Online since: January 2021
• Authors: Jittraporn Wongsa-Ngam*, Jie Xu, Chakkrist Phongphisutthinan, Terence G. Langdon
• Keywords: Aluminum Silicon-Based Alloy, Friction Coefficient, High-Pressure Torsion, Microstructure, Wear Resistance

References

[1] H.W.L. Phillips, Annotated equilibrium diagrams of some aluminium alloy systems. London, Institute of Metals, (1959).

[2] L.F. Mondolfo, Aluminium alloys: structure and properties. London: Boston, Butterworths, (1976).

[3] R.M.X. Young, T.W. Clyne, An Al-Fe intermetallic phase formed during controlled solidification, Scripta Metall. 15 (1981) 1211-1216.

DOI: 10.1016/0036-9748(81)90301-x

[4] S.D. Forder, J.S. Brooks, P.V. Evans, A Mössbauer investigation of phases formed in Al-Fe alloys, Scr. Mater. 35 (1996) 1167-1173.

DOI: 10.1016/1359-6462(96)00273-4

[5] J.A. Taylor., Iron-containing intermetallic phases in Al-Si based casting alloys, Procedia Mater. Sci. 1 (2012) 19-33.

DOI: 10.1016/j.mspro.2012.06.004

[6] C.H. Cáceres, J.A. Taylor, Enhanced ductility in Al-Si-Cu-Mg foundry alloys with high Si content, Metall. Mater. Trans. B 37 (2006) 897-903.

DOI: 10.1007/bf02735011

[7] N. Roy, A. M. Samuel, F.H. Samuel, Porosity formation in Al-9 wt pct Si-3 wt pct Cu alloy systems: Metallographic observations, Metall. Mater. Trans. A 27 (1996) 415-429.

DOI: 10.1007/bf02648419

[8] R.Z Valiev, R.K Islamgaliev, I.V Alexandrov, Bulk nanostructured materials from severe plastic deformation, Prog. Mater. Sci. 45 (2000) 103-189.

DOI: 10.1016/s0079-6425(99)00007-9

[9] R.Z. Valiev, I.V. Alexandrov, Y.T. Zhu, T.C. Lowe, Paradox of strength and ductility in metals processed by severe plastic deformation, J. Mater. Res. 17 (2002) 5-8.

DOI: 10.1557/jmr.2002.0002

[10] M. Kawasaki, Z. Horita, T.G. Langdon, Microstructural evolution in high purity aluminum processed by ECAP, Mater. Sci. Eng. A 524 (2009) 143-145.

DOI: 10.1016/j.msea.2009.06.032

[11] M. Kawasaki, R.B. Figueiredo, T.G. Langdon, An investigation of hardness homogeneity throughout disks processed by high-pressure torsion, Acta. Mater. 59 (2011) 308-316.

DOI: 10.1016/j.actamat.2010.09.034

[12] J. Wongsa-Ngam, T.G. Langdon, Microstructural evolution and grain refinement in a Cu-Zr alloy processed by high-pressure torsion, Mater. Sci. Forum 783-786 (2014) 2635-2640.

DOI: 10.4028/www.scientific.net/msf.783-786.2635

[13] G. Sha, Y.B. Wang, X.Z. Liao, Z.C. Duan, S.P. Ringer, T.G. Langdon, Microstructural evolution of Fe-rich particles in an Al–Zn–Mg–Cu alloy during equal-channel angular pressing, Mater. Sci. Eng. A 527 (2010) 4742-4749.

DOI: 10.1016/j.msea.2010.04.041

[14] O.N Senkov, F.H. Froes, V.V. Stolyarov, R. Z. Valiev, J. Liu, Microstructure of aluminum-iron alloys subjected to severe plastic deformation, Scr. Mater. 38 (1998) 1511-1516.

DOI: 10.1016/s1359-6462(98)00073-6

[15] A.P. Zhilyaev, T.G. Langdon, Using high-pressure torsion for metal processing: Fundamentals and applications, Prog. Mater. Sci. 51 (2008) 893-979.

DOI: 10.1016/j.pmatsci.2008.03.002

[16] R.B. Figueiredo, P.R. Cetlin, T.G. Langdon, Using finite element modeling to examine the flow processes in quasi-constrained high-pressure torsion, Mater. Sci. Eng. A 528 (2011) 8198-8204.

DOI: 10.1016/j.msea.2011.07.040

[17] R.B. Figueiredo, P.H.R. Pereira, M.T.P. Aguilar, P.R. Cetlin, T.G. Langdon, Using finite element modeling to examine the temperature distribution in quasi-constrained high-pressure torsion, Acta Mater. 60 (2012) 3190-3198.

DOI: 10.1016/j.actamat.2012.02.027

[18] M.I.A.E. Aal, H.S. Kim, Wear properties of high pressure torsion processed ultrafine grained Al-7%Si alloy, Material and Design 23 (2014) 373-382.

DOI: 10.1016/j.matdes.2013.07.045

[19] M.I.A.E. Aal, N. E. Mahallawy, F.A. Shehata, M.A.E. Hameed, E.Y. Yoon, H.S. Kim, Wear properties of ECAP-processed ultrafine grained Al-Cu alloys, Mater. Sci. Eng. A 527 (2010) 3726-3732.

DOI: 10.1016/j.msea.2010.03.057

[20] M. Chegini, A. Fallahi, M.H. Shaeri, Effect of equal angular pressing (ECAP) on wear behavior of Al-7075 alloy, Procedia Mater. Sci. 11 (2015) 95-100.

DOI: 10.1016/j.mspro.2015.11.116

[21] K.Edalati, M. Ashida, Z. Horita, T.Matsui, H.Kato, Wear resistance and tribological features of pure aluminum and Al-Al2O3 composites consolidated by high-pressure torsion, Wear 310 (2014) 83-89.

DOI: 10.1016/j.wear.2013.12.022

[22] C. Gode, H. Yilmazer, I. Ozdemir, Y. Todaka, Microstructural refinement and wear property of Al-Si-Cu composite subjected to extrusion and high-pressure torsion, Mater. Sci. Eng. A (2014) 377-384.

DOI: 10.1016/j.msea.2014.09.011

[23] J-K. Han, H-J. Lee, J. Jang, M. Kawasaki, T.G. Langdon, Micro-mechanical and tribological properties of aluminum-magnesium nanocomposites processed by high-pressure torsion, Mater. Sci. Eng. A 684 (2017) 318-327.

DOI: 10.1016/j.msea.2016.12.067

[24] T. Kucukomeroglu, Effect of equal-channel angular extrusion on mechanical and wear properties of eutectic Al-12Si alloy, Materials and Design 31 (2010) 782-789.

DOI: 10.1016/j.matdes.2009.08.004

[25] C.T. Wang, N. Gao, R. J. K. Wood, T.G. Langdon, Wear behavior of an aluminum alloy processed by equal-channel angular pressing, J. Mater. Sci. 46 (2011) 123-130.

DOI: 10.1007/s10853-010-4862-0

[26] E. Avcu, The influence of ECAP on the dry sliding wear behaviour of AA7075 aluminium alloy, Tribology. International 110 (2017) 173-184.

DOI: 10.1016/j.triboint.2017.02.023
