Deformation Property of Dense Oxide Coated Magnesium Alloy Surface

Akira Watazu; Tsutomu Sonoda

doi:10.4028/www.scientific.net/MSF.1016.1591

Paper Titles

Adhesion Properties of Thin Film Multilayers: Comparison of Nanoindentation and Four-Point-Bending Techniques
p.1561

Effect of Strain Rate on Compressive Behavior of a ZrCuNiAl Bulk Metallic Glass at Room Temperature
p.1569

Effect of Cellular Dislocation Structure on the Strength of Additively Manufactured 316L Stainless Steel
p.1576

Syngas Production by Dry Methane Reforming over Mg Doped NiO-ZrO₂ Catalysts
p.1585

Deformation Property of Dense Oxide Coated Magnesium Alloy Surface
p.1591

Remelting of Thermal Spraying Coatings - Technologies, Properties and Applications
p.1597

Processing of Nanostructured Bulk Fe-Cr Alloys by Severe Plastic Deformation
p.1603

Study of the Microstructure and Mechanical Properties Obtained by Laser Boost in SLM Process for the Ti-64 Alloy
p.1611

The Influence of HPT on Microstructure and Wear Resistance of Al-7wt%Si-2wt%Fe Alloy
p.1618

HomeMaterials Science ForumMaterials Science Forum Vol. 1016Deformation Property of Dense Oxide Coated...

Deformation Property of Dense Oxide Coated Magnesium Alloy Surface

Abstract:

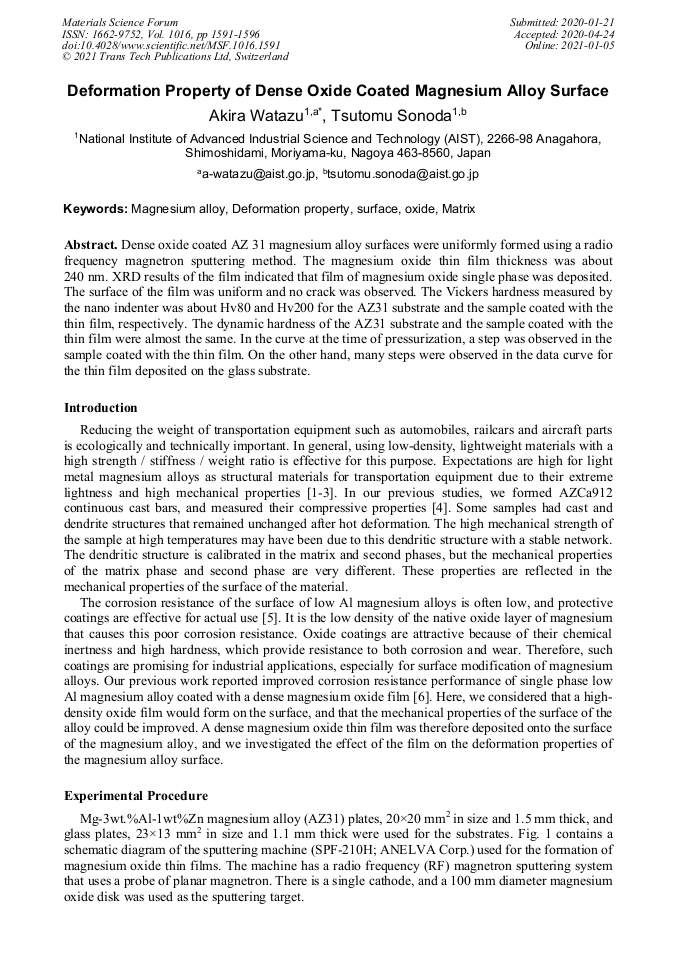

Dense oxide coated AZ 31 magnesium alloy surfaces were uniformly formed using a radio frequency magnetron sputtering method. The magnesium oxide thin film thickness was about 240 nm. XRD results of the film indicated that film of magnesium oxide single phase was deposited. The surface of the film was uniform and no crack was observed. The Vickers hardness measured by the nanoindenter was about Hv80 and Hv200 for the AZ31 substrate and the sample coated with the thin film, respectively. The dynamic hardness of the AZ31 substrate and the sample coated with the thin film were almost the same. In the curve at the time of pressurization, a step was observed in the sample coated with the thin film. On the other hand, many steps were observed in the data curve for the thin film deposited on the glass substrate.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volume 1016)

Pages:

1591-1596

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.1016.1591

Citation:

Cite this paper

Online since:

January 2021

Authors:

Akira Watazu*, Tsutomu Sonoda

Keywords:

Deformation Property, Magnesium Alloy, Matrix, Oxide, Surface

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] E. Krakulak, A review: Past, present and future of grain refining of magnesium castings, J. Magnesium Alloys 7 (2019) 355-369.

DOI: 10.1016/j.jma.2019.05.001

Google Scholar

[2] Y. Ali, D. Qiu, B. Jiang, F. Pan, M-X Zhang, Current research progress in grain refinement of cast magnesium alloys:A review article, J. Alloys Comp. 619 (2015) 539-651.

DOI: 10.1016/j.jallcom.2014.09.061

Google Scholar

[3] H. Friendrich, s. Schumann, Research for a new age of magnesium, in the automotive industry, J. Mater. Process. Technol. 117 (3)(2001) 276-281.

Google Scholar

[4] A. Watazu, N. Omura, K. Miwa, Microstructure of AZCa912 continuous casting bar after hot compression, Mater. Sci. Forum 879 (2016) 2567-2572.

DOI: 10.4028/www.scientific.net/msf.879.2567

Google Scholar

[5] Y. Zhu, W. Gao, H. Huang, W. Chang, S. Zhang, R. Zhang, R. Zhao, Y. Zhang, Investigation of corrosion resistance and formation mechanism of calcium-containing coatings on AZ31B magnesium alloy, Appl. Surf. Sci. 487 (2019) 581-592.

DOI: 10.1016/j.apsusc.2019.05.049

Google Scholar

[6] T. Sonoda, A. Watazu, Proc. of the Fourteenth International Symposium on Sputtering and Plasma Processes. 1 (2017) 229-231.

Google Scholar
