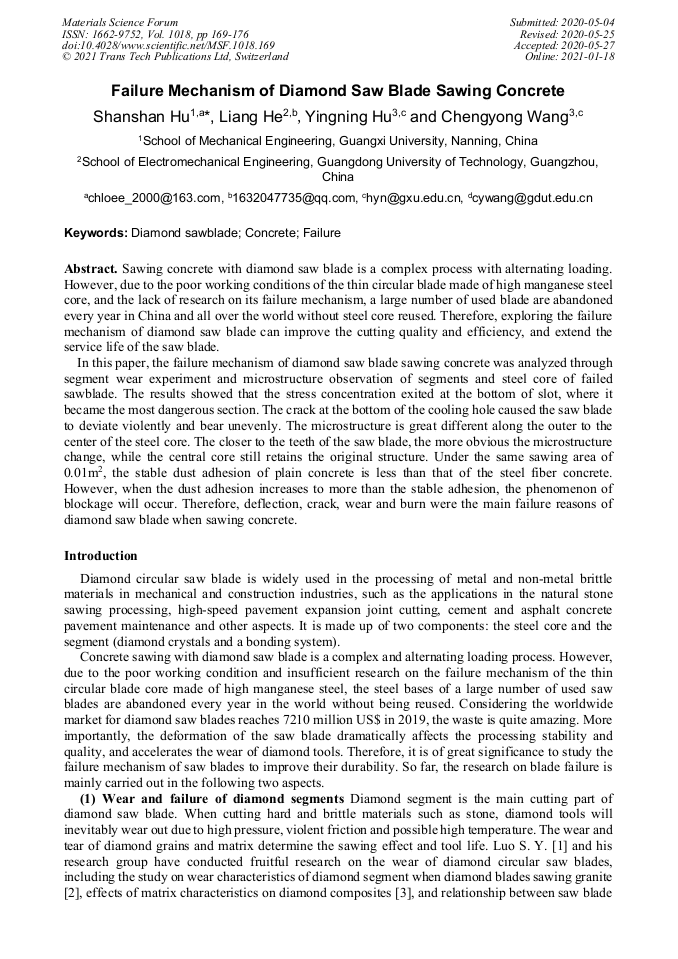

Failure Mechanism of Diamond Saw Blade Sawing Concrete

Abstract:

Sawing concrete with diamond saw blade is a complex process with alternating loading. However, due to the poor working conditions of the thin circular blade made of high manganese steel core, and the lack of research on its failure mechanism, a large number of used blade are abandoned every year in China and all over the world without steel core reused. Therefore, exploring the failure mechanism of diamond saw blade can improve the cutting quality and efficiency, and extend the service life of the saw blade. In this paper, the failure mechanism of diamond saw blade sawing concrete was analyzed through segment wear experiment and microstructure observation of segments and steel core of failed sawblade. The results showed that the stress concentration exited at the bottom of slot, where it became the most dangerous section. The crack at the bottom of the cooling hole caused the saw blade to deviate violently and bear unevenly. The microstructure is great different along the outer to the center of the steel core. The closer to the teeth of the saw blade, the more obvious the microstructure change, while the central core still retains the original structure. Under the same sawing area of 0.01m², the stable dust adhesion of plain concrete is less than that of the steel fiber concrete. However, when the dust adhesion increases to more than the stable adhesion, the phenomenon of blockage will occur. Therefore, deflection, crack, wear and burn were the main failure reasons of diamond saw blade when sawing concrete.

• Periodical: Materials Science Forum (Volume 1018)
• Pages: 169-176
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1018.169
• Online since: January 2021
• Authors: Shan Shan Hu*, Li Ang He, Ying Ning Hu, Cheng Yong Wang
• Keywords: Concrete, Diamond Sawblade, Failure

References

[1] Luo S Y, Liao Y S, Effects of diamond grain characteristics of sawblade wear, International Journal of Machine Tools & Manufacture. 33 (1993)256-266.

DOI: 10.1016/0890-6955(93)90078-9

[2] Liao Y S, Luo S Y, Wear characteristics of sintered diamond composite during circular sawing, Wear. 157 (1992) 325-337.

DOI: 10.1016/0043-1648(92)90070-o

[3] Liao Y S, Luo S Y, Effects of matrix characteristics on diamond composites, Journal of Materials Science. 28 (1993)1245-1251.

[4] Luo S Y, Characteristics of diamond sawblade wear in sawing, International Journal of Machine Tools & Manufacture. 36 (1996)661-672.

DOI: 10.1016/0890-6955(95)00071-2

[5] M.W. Bailey, G.J. Bullen, Sawing in the stone and civil engineering industries, IDR, 2 (1979)56-60.

[6] Chengyong Wang, Jingming Fan, Zhenchao Xu, Study of the diamond frame sawing (Ⅴ) -- wear characteristics of diamond segment, Diamond &Abrasives Engineering. 172 (2002) 6-12 (In Chinese).

[7] Rahmi Ünal, E. Alper Gurcay, Matrix Composition Effect on the Wear Behaviour of Diamond Segments, Materials Science Forum. 534-536 (2007) 1113-1116.

DOI: 10.4028/www.scientific.net/msf.534-536.1113

[8] Xipeng Xu, Study on the thermal wear of diamond segmented tools in circular sawing of granites, Tribology Letters. 10 (2001) 245-250.

[9] Sun Qin, Zhang Jinsheng, Wang Zhi, Segment wear characteristics of diamond frame saw when cutting different granite types, Diamond and Related Materials. 68 (2016) 43-151.

DOI: 10.1016/j.diamond.2016.06.018

[10] Heng Zhang, Jinsheng Zhang, Shuo Wang, Comparison of wear performance of diamond tools in frame sawing with different trajectories, International Journal of Refractory Metals and Hard Materials. 78 (2019) 178-185.

DOI: 10.1016/j.ijrmhm.2018.09.012

[11] Yunfeng Zhang, Zhennan Qi, Xiying Lang, Min zhao, Reliability Analysis of the Diamond Saw Blades Based on ANSYS", Applied Mechanics and Materials. 130-134 (2012) 887-890.

DOI: 10.4028/www.scientific.net/amm.130-134.887

[12] Hu Yingning, Chen Chenggang, Hu Shanshan, Transient dynamics analysis of specially structured diamond circular sawblade, Diamond &Abrasives Engineering. 172 (2009)1-9 (In Chinese).

[13] Shanshan Hu, Yingning Hu, Chengyong Wang and Changxiong Chen, Vibration Characteristic Analysis of Diamond Saw Blade with Multitude Holes Structure for Vibration and Noise Reduction, Key Engineering Materials. 359-360 (2008) 78-84.

DOI: 10.4028/www.scientific.net/kem.359-360.78

[14] Yingning Hu, Chengyong Wang, Shanshan Hu, Bangdao Chen and Changxiong Chen, Dynamic Characteristics Analysis of Diamond Saw Blade with Multi-hole Base and Different Segment Width, Key Engineering Materials. 375-376 (2008) 369-374.

DOI: 10.4028/www.scientific.net/kem.375-376.369

[15] Zeng Bin, Li Zhaodong, Sun Xinjun, Yang Junwei, Yong Qilong, Research and development of 51CrV4 as a novel welded saw blade steel, Iron and Steel. 51 (2016) 78-83 (In Chinese).
