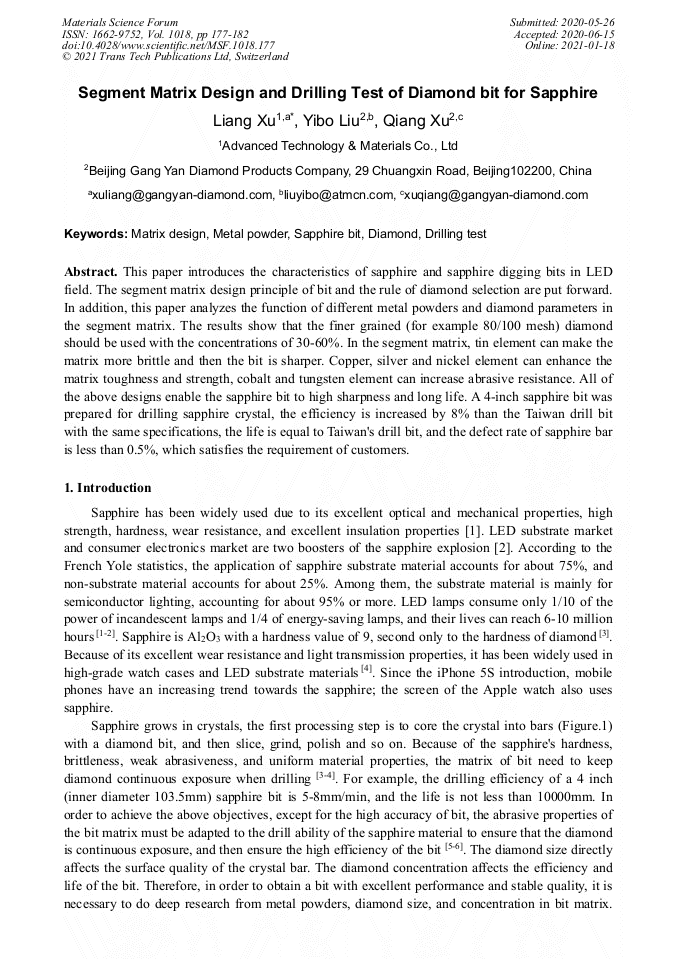

Segment Matrix Design and Drilling Test of Diamond Bit for Sapphire

Abstract:

This paper introduces the characteristics of sapphire and sapphire digging bits in LED field. The segment matrix design principle of bit and the rule of diamond selection are put forward. In addition, this paper analyzes the function of different metal powders and diamond parameters in the segment matrix. The results show that the finer grained (for example 80/100 mesh) diamond should be used with the concentrations of 30-60%. In the segment matrix, tin element can make the matrix more brittle and then the bit is sharper. Copper, silver and nickel element can enhance the matrix toughness and strength, cobalt and tungsten element can increase abrasive resistance. All of the above designs enable the sapphire bit to high sharpness and long life. A 4-inch sapphire bit was prepared for drilling sapphire crystal, the efficiency is increased by 8% than the Taiwan drill bit with the same specifications, the life is equal to Taiwan's drill bit, and the defect rate of sapphire bar is less than 0.5%, which satisfies the requirement of customers.

• Periodical: Materials Science Forum (Volume 1018)
• Pages: 177-182
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1018.177
• Online since: January 2021
• Authors: Liang Xu*, Yi Bo Liu, Qiang Xu
• Keywords: Diamond, Drilling Test, Matrix Design, Metal Powder, Sapphire Bit

References

[1] Z.G. Chen, Discussion on the LED and semiconductor lighting, Energy Eng.2(2004)1-2.

[2] L. Zhou, P. Yang, Research on the properties and application of sapphire materials, Silicon Valley.21(2014)139-141.

[3] D. Dai, Y.S. Chen, Development status and development trend of LED lighting technology, Building Elec.12(2014) 14-16.

[4] K.S. Chol, S.T. John, Optimum machining of optical crystals, Mechanical Eng.4(2003)68-72.

[5] J. Xu, The Study on preparation technology and optimization of the nesting drill for processing artificial sapphire crystal, Qinhuangdao: Yanshan University. 2016.22-23.

[6] F.S. Wang, Discussion on matrix performances of the thin wall diamond bit, Exploration Eng: Rock & Soil Drilling and Tunneling. 11(2005) 57-59.

[7] S. Wang, Analysis of thermal stability of diamond, Diamond and Abrasives Eng. 125 (2001) 36-39.

[8] J. Chen, Design-manufacturing and performance studies of diamond drill, Shenyang: Shenyang ligong University. 2009.5-7.

[9] S.H. Liu, Z. Chen, Y.B. Liu, Study of ultra-fine tungsten-copper alloy powder used in diamond tools, Diamond and Abrasives Eng. 30(2010)70-73.

[10] J.L. Fan, T. Liu, H.C. Cheng, Preparation and sintering of W-20wt%Cu ultrafine composite powder, Nano-processing Tech. 4(2006)36-38.
