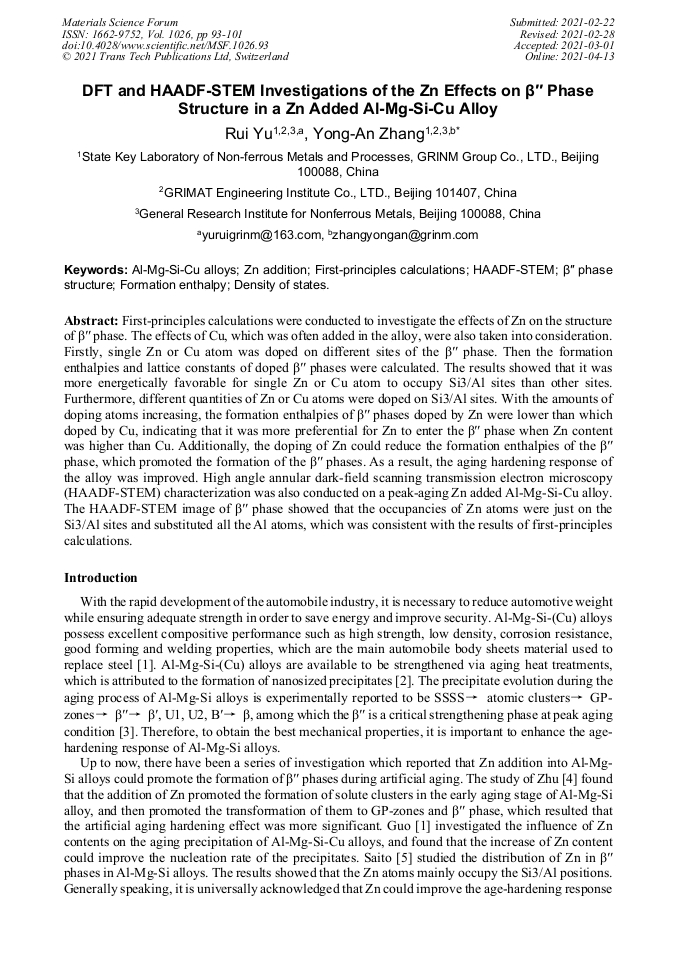

DFT and HAADF-STEM Investigations of the Zn Effects on β″ Phase Structure in a Zn Added Al-Mg-Si-Cu Alloy

Abstract:

First-principles calculations were conducted to investigate the effects of Zn on the structure of β″ phase. The effects of Cu, which was often added in the alloy, were also taken into consideration. Firstly, single Zn or Cu atom was doped on different sites of the β″ phase. Then the formation enthalpies and lattice constants of doped β″ phases were calculated. The results showed that it was more energetically favorable for single Zn or Cu atom to occupy Si3/Al sites than other sites. Furthermore, different quantities of Zn or Cu atoms were doped on Si3/Al sites. With the amounts of doping atoms increasing, the formation enthalpies of β″ phases doped by Zn were lower than which doped by Cu, indicating that it was more preferential for Zn to enter the β″ phase when Zn content was higher than Cu. Additionally, the doping of Zn could reduce the formation enthalpies of the β″ phase, which promoted the formation of the β″ phases. As a result, the aging hardening response of the alloy was improved. High angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) characterization was also conducted on a peak-aging Zn added Al-Mg-Si-Cu alloy. The HAADF-STEM image of β″ phase showed that the occupancies of Zn atoms were just on the Si3/Al sites and substituted all the Al atoms, which was consistent with the results of first-principles calculations.

• Periodical: Materials Science Forum (Volume 1026)
• Pages: 93-101
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1026.93
• Online since: April 2021
• Authors: Rui Yu, Yong An Zhang*
• Keywords: Al-Mg-Si-Cu Alloys, Density of States, First-Principles Calculations, Formation Enthalpy, HAADF-STEM, Zn Addition, β′′ Phase

References

[1] M.X. Guo, J.Q. Du, C.H. Zheng, et al. Influence of Zn contents on precipitation and corrosion of Al-Mg-Si-Cu-Zn alloys for automotive applications, J. Alloys Compd. 778 (2019) 256-270.

DOI: 10.1016/j.jallcom.2018.11.146

[2] M. Torsæter, H.S. Hasting, W. Lefebvre, et al. The influence of composition and natural aging on clustering during preaging in Al-Mg-Si alloys, J. Appl. Phys. 108 (2010) 1-9.

DOI: 10.1063/1.3481090

[3] C.D. Marioara, S.J. Andersen, H.W. Zandbergen, et al. The influence of alloy composition on precipitates of the Al-Mg-Si system, Metall. Mater. Trans. A, 36 (2005) 691-702.

DOI: 10.1007/s11661-005-0185-1

[4] S. Zhu, Z.H. Li, L.Z. Yan, et al. Effects of Zn addition on the age hardening behavior and precipitation evolution of an Al-Mg-Si-Cu alloy, Mater. Charact. 145 (2018) 258-267.

DOI: 10.1016/j.matchar.2018.08.051

[5] T. Saito, F.J.H. Ehlers, W. Lefebvre, et al. HAADF-STEM and DFT investigations of the Zn-containing β'' phase in Al-Mg-Si alloys, Acta Mater. 78 (2014) 245-253.

DOI: 10.1016/j.actamat.2014.06.055

[6] K. Li, B. Armand, M. Song, et al. Atomistic structure of Cu-containing β" precipitates in an Al-Mg-Si-Cu alloy, Scr. Mater. 75 (2014) 86-89.

DOI: 10.1016/j.scriptamat.2013.11.030

[7] M.W. Zandbergen, A. Cerezo, G.D.W. Smith. Study of precipitation in Al-Mg-Si Alloys by atom probe tomography II. Influence of Cu additions, Acta Mater. 101 (2015) 149-158.

DOI: 10.1016/j.actamat.2015.08.018

[8] L.P. Ding, Z.H. Jia, J.F. Nie, et al. The structural and compositional evolution of precipitates in Al-Mg-Si-Cu alloy, Acta Mater. 145 (2017) 437-450.

DOI: 10.1016/j.actamat.2017.12.036

[9] M.A. van Huis, J.H. Chen, H.W. Zandbergen, et al. Phase stability and structural relations of nanometer-sized, matrix-embedded precipitate phases in Al-Mg-Si alloys in the late stages of evolution, Acta Mater. 54 (2006) 2945-2955.

DOI: 10.1016/j.actamat.2006.02.034

[10] C. Ravi, C. Wolverton. First-principles study of crystal structure and stability of Al-Mg-Si-(Cu) precipitates, Acta Mater. 52 (2004) 4213-4227.

DOI: 10.1016/j.actamat.2004.05.037

[11] W. Xiao, J.W. Wang, L. Sun, et al. Theoretical investigation of the strengthening mechanism and precipitation evolution in high strength Al-Zn-Mg alloys, Phys. Chem. Chem. Phys. 20 (2018) 13616-13622.

DOI: 10.1039/c8cp01820k

[12] M.A. van Huis, J.H. Chen, M.H.F. Sluiter, et al. Phase stability and structural features of matrix-embedded hardening precipitates in Al-Mg-Si alloys in the early stages of evolution, Acta Mater. 55 (2007) 2183-2199.

DOI: 10.1016/j.actamat.2006.11.019

[13] H.W. Zandbergen, S.J. Andersen, J. Jansen. Structure Determination of Mg5Si6 Particles in Al by Dynamic Electron Diffraction Studies, Science, 277 (1997) 1221-1225.

DOI: 10.1126/science.277.5330.1221

[14] C.D. MARIOARA, S.J. ANDERSEN, J. JANSEN, et al. ATOMIC MODEL FOR GP-ZONES IN A 6082 Al-Mg-Si SYSTEM, Acta Mater. 49 (2001) 321-328.

DOI: 10.1016/s1359-6454(00)00302-5

[15] K. Matsuda, T. Naoi, K. Fujii, et al. Crystal structure of the β" phase in an Al-l.0mass%Mg2Si-0.4mass%Si alloy, Mater. Sci. Eng., A, 262 (1999) 232-237.

DOI: 10.1016/s0921-5093(98)00962-9

[16] H.S. Hasting, A.G. Frøseth, S.J. Andersen, et al. Composition of β" precipitates in Al-Mg-Si alloys by atom probe tomography and first principles calculations, Appl. Phys. 106 (2009) 123527.

DOI: 10.1063/1.3269714

[17] S.J. ANDERSEN, H.W. ZANDBERGEN, J. JANSEN, et al. THE CRYSTAL STRUCTURE OF THE β" PHASE IN Al-Mg-Si ALLOYS, Acta Metall. 46 (1998) 3283-3298.

DOI: 10.1016/s1359-6454(97)00493-x

[18] L.P. Ding, Z.H. Jia, Z.Q. Zhang, et al. The natural aging and precipitation hardening behaviour of Al-Mg-Si-Cu alloys with different Mg/Si ratios and Cu additions, Mater. Sci. Eng., A, 627 (2015) 119-126.

DOI: 10.1016/j.msea.2014.12.086
