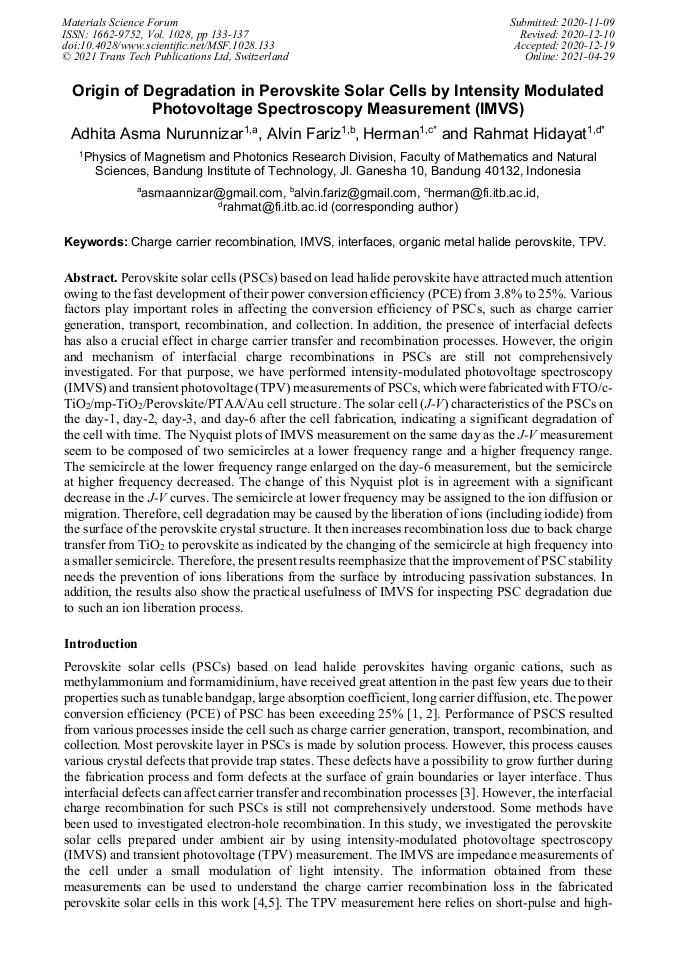

Origin of Degradation in Perovskite Solar Cells by Intensity Modulated Photovoltage Spectroscopy Measurement (IMVS)

Abstract:

Perovskite solar cells (PSCs) based on lead halide perovskite have attracted much attention owing to the fast development of their power conversion efficiency (PCE) from 3.8% to 25%. Various factors play important roles in affecting the conversion efficiency of PSCs, such as charge carrier generation, transport, recombination, and collection. In addition, the presence of interfacial defects has also a crucial effect in charge carrier transfer and recombination processes. However, the origin and mechanism of interfacial charge recombinations in PSCs are still not comprehensively investigated. For that purpose, we have performed intensity-modulated photovoltage spectroscopy (IMVS) and transient photovoltage (TPV) measurements of PSCs, which were fabricated with FTO/c-TiO₂/mp-TiO₂/Perovskite/PTAA/Au cell structure. The solar cell (J-V) characteristics of the PSCs on the day-1, day-2, day-3, and day-6 after the cell fabrication, indicating a significant degradation of the cell with time. The Nyquist plots of IMVS measurement on the same day as the J-V measurement seem to be composed of two semicircles at a lower frequency range and a higher frequency range. The semicircle at the lower frequency range enlarged on the day-6 measurement, but the semicircle at higher frequency decreased. The change of this Nyquist plot is in agreement with a significant decrease in the J-V curves. The semicircle at lower frequency may be assigned to the ion diffusion or migration. Therefore, cell degradation may be caused by the liberation of ions (including iodide) from the surface of the perovskite crystal structure. It then increases recombination loss due to back charge transfer from TiO₂ to perovskite as indicated by the changing of the semicircle at high frequency into a smaller semicircle. Therefore, the present results reemphasize that the improvement of PSC stability needs the prevention of ions liberations from the surface by introducing passivation substances. In addition, the results also show the practical usefulness of IMVS for inspecting PSC degradation due to such an ion liberation process.

• Periodical: Materials Science Forum (Volume 1028)
• Pages: 133-137
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1028.133
• Online since: April 2021
• Authors: Adhita Asma Nurunnizar, Alvin Fariz, Herman Herman, Rahmat Hidayat*
• Keywords: Charge Carrier Recombination, IMVS, Interfaces, Organic Metal Halide Perovskite, TPV

References

[1] W. S.Yang, B. W. Park, E. H. Jung, N. J. Jeon, Y. C. Kim, D. U. Lee, S. S. Shin, J. Seo, E. K. Kim, J. H. Noh, and S. I. Seok, Iodide management in formamidinium-lead-halide-based perovskite layers for efficient solar cells, Science 356 (2017) 1376-1379.

DOI: 10.1126/science.aan2301

[2] X. X. Gao, W. Luo, Y. Zhang, R. Hu, B. Zhang, A. Zuttel, Y. Feng, and M. K. Nazeeruddin, Stable and high-efficiency methylammonium-free perovskite solar cells, Adv. Matter. (2020) 1905502.

DOI: 10.1002/adma.201905502

[3] Wang F, Chen Y, Han G, Zhang Q, Ma Q, Current Applied Physics 1353-1363 (2016).

[4] E. Guillen, F. J. Ramos, J. A. Anta, and S. Ahmad, Elucidating Transport-Recombination Mechanism in Perovskite Solar Cells by Small-Perturbation Techniques, J. Phys. Chem. C 118, (2014) 22913-22922.

DOI: 10.1021/jp5069076

[5] A. Pockett, G. E. Eperon, T. Peltola, H. J. Snaith, A. Walker, L. M. Peter, and P. J. Cameron, Characterization of planar lead halide perovskite solar cells by impedance spectroscopy, open-circuit photovoltage decay and intensity-modulated photovoltage/photocurrent spectroscopy, J. Phys. Chem. C 119, 7 (2015) 3456-3465.

DOI: 10.1021/jp510837q

[6] J. Shi, D. Li, Y. Luo, H. Wu, and Q. Meng, Opto-electro-modulated transient photovoltage and photocurrent system for investigation of charge transport and recombination in solar cells, Rev. Sci. Instrum. 87 (2016) 123107.

DOI: 10.1063/1.4972104

[7] M. Xiao, F. Huang, W. Huang, Y. Dkhissi, Y. Zhu, J. Etheridge, A. Gray-Weale, U. Bach, Y. B. Cheng, and L. Spiccia, A fast deposition-crystallization procedure for highly efficient lead iodide perovskite thin-film solar cells, Angewandte Chemie 53 (2014) 1-7.

DOI: 10.1002/ange.201405334

[8] V. G. Pedro, E. J. J. Perez, W. S. Arsyad, E. M. Barea, F. F. Santiago, I. M. Sero, and J. Bisquert, General working principles of CH3NH3PbX3 perovskite solar cells. Nano Lett. (2014) 14, 888–893.

DOI: 10.1021/nl404252e

[9] H. Wang, A. Guerrero, A. Bou, A. M. Al-Mayouf and J. Bisquert, Kinetic and material properties of interfaces governing slow response and long-timescale phenomena in perovskite solar cells, Energy Environ. Sci. 12 (2019) 2054-2079.

DOI: 10.1039/c9ee00802k
