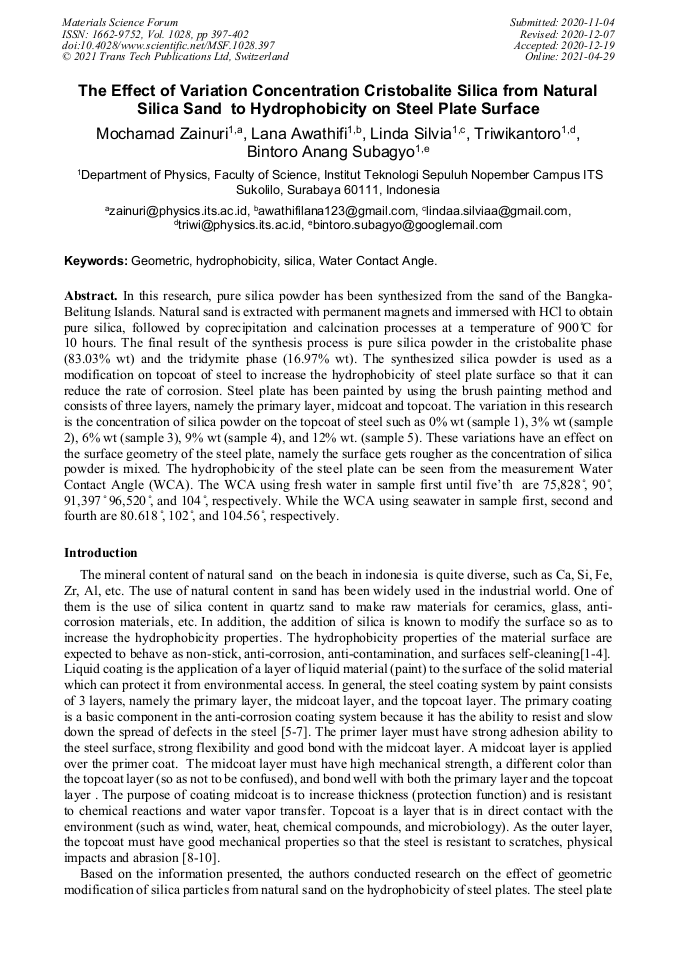

The Effect of Variation Concentration Cristobalite Silica from Natural Silica Sand to Hydrophobicity on Steel Plate Surface

Abstract:

In this research, pure silica powder has been synthesized from the sand of the Bangka-Belitung Islands. Natural sand is extracted with permanent magnets and immersed with HCl to obtain pure silica, followed by coprecipitation and calcination processes at a temperature of 900 °C for 10 hours. The final result of the synthesis process is pure silica powder in the cristobalite phase (83.03% wt) and the tridymite phase (16.97% wt). The synthesized silica powder is used as a modification on topcoat of steel to increase the hydrophobicity of steel plate surface so that it can reduce the rate of corrosion. Steel plate has been painted by using the brush painting method and consists of three layers, namely the primary layer, midcoat and topcoat. The variation in this research is the concentration of silica powder on the topcoat of steel such as 0% wt (sample 1), 3% wt (sample 2), 6% wt (sample 3), 9% wt (sample 4), and 12% wt. (sample 5). These variations have an effect on the surface geometry of the steel plate, namely the surface gets rougher as the concentration of silica powder is mixed. The hydrophobicity of the steel plate can be seen from the measurement Water Contact Angle (WCA). The WCA using fresh water in sample first until five’th are 75,828 ̊, 90 ̊, 91,397 ̊ 96,520 ̊, and 104 ̊, respectively. While the WCA using seawater in sample first, second and fourth are 80.618 ̊, 102 ̊, and 104.56 ̊, respectively.

• Periodical: Materials Science Forum (Volume 1028)
• Pages: 397-402
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1028.397
• Online since: April 2021
• Authors: Mochammad Zainuri*, Lana Awathifi, Linda Silvia, Triwikantoro Triwikantoro, Bintoro Anang Subagyo
• Keywords: Geometric, Hydrophobicity, Silica, Water Contact Angle

References

[1] M. Nosonovsky and B. Bhushan, Superhydrophobic surfaces and emerging applications: Non-adhesion, energy, green engineering,, Curr. Opin. Colloid Interface Sci., 14(4) (2009) 270–280.

DOI: 10.1016/j.cocis.2009.05.004

[2] H. J. Ensikat, P. Ditsche-Kuru, C. Neinhuis, and W. Barthlott, Superhydrophobicity in perfection: The outstanding properties of the lotus leaf,, Beilstein J. Nanotechnol., 2(1) (2011) 152–161.

DOI: 10.3762/bjnano.2.19

[3] S. Subhash Latthe, A. Basavraj Gurav, C. Shridhar Maruti, and R. Shrikant Vhatkar, Recent Progress in Preparation of Superhydrophobic Surfaces: A Review,, J. Surf. Eng. Mater. Adv. Technol., 02(02) (2012) 76–94.

DOI: 10.4236/jsemat.2012.22014

[4] S. N. M. Nazhirah, S. K. Ghoshal, R. Arifin, and K. Hamzah, Titania nanoparticles activated tellurite zinc–silicate glass with controlled hydrophobic and hydrophilic traits for self-cleaning applications,,J. Non. Cryst. Solids, 530 (2020) 119778.

DOI: 10.1016/j.jnoncrysol.2019.119778

[5] A.Hayashi, Application Technology of High-Purity Silica,, iCMC 30-32 (1991).

[6] M. Della and R. Roy, Tridymite-Cristobalite Relations and Stable Solid Solutions,, Am. Mineral., 49(7–8) (1964) 952–962.

[7] Matthew A. Hood , Controlling hydrophobicity of silica nanocapsules prepared from Organosilanes,, Colloids and Surfaces A 532 (2017) 172–177.

DOI: 10.1016/j.colsurfa.2017.05.047

[8] C. Elif Cansoy,Effect of pattern size and geometry on the use of Cassie–Baxter equation for superhydrophobic surfaces,,Colloids and Surfaces A: Physicochem. Eng. Aspects 386 (2011) 116– 124.

DOI: 10.1016/j.colsurfa.2011.07.005

[9] Y. Luo, Characterization of TEOS/PDMS/HA nanocomposites for application as consolidant/hydrophobic products on sandstones,, Journal of Cultural Heritage 16 (2015) 470–478.

DOI: 10.1016/j.culher.2014.08.002

[10] I. Hejazi, Investigating the role of surface micro/nano structure in cell adhesionbehavior of superhydrophobic polypropylene/nanosilica surfaces,, Colloids and Surfaces B: Biointerfaces 127 (2015) 233–240.

DOI: 10.1016/j.colsurfb.2015.01.054
