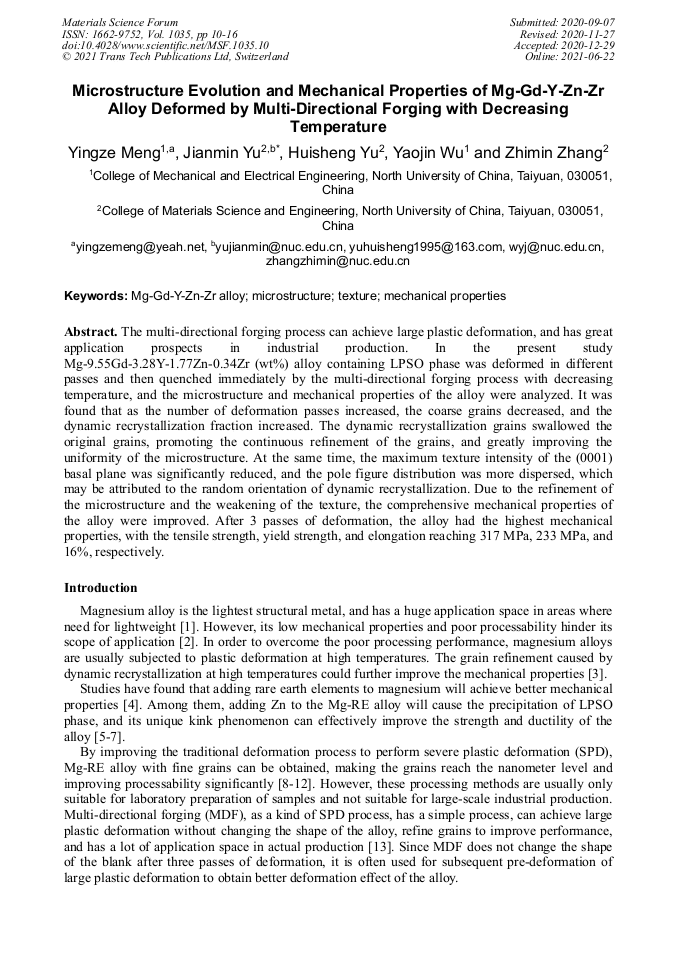

Microstructure Evolution and Mechanical Properties of Mg-Gd-Y-Zn-Zr Alloy Deformed by Multi-Directional Forging with Decreasing Temperature

Abstract:

The multi-directional forging process can achieve large plastic deformation, and has great application prospects in industrial production. The Mg-9.55Gd-3.28Y-1.77Zn-0.34Zr (wt%) alloy containing LPSO phase was deformed in different passes and then quenched immediately by the multi-directional forging process with decreasing temperature, and the microstructure and mechanical properties of the alloy were analyzed. It is found that as the number of deformation passes increases, the coarse grains decrease, and the dynamic recrystallization fraction increases. The dynamic recrystallization grains swallow the original grains, promote the continuous refinement of the grains, and greatly improve the uniformity of the microstructure. At the same time, the maximum texture intensity of the (0001) basal plane is significantly reduced, and the pole figure distribution is more dispersed, which is attributed to the random orientation of dynamic recrystallization. Due to the refinement of the microstructure and the weakening of the texture, the tensile strength and yield strength at room temperature increase significantly. After 3 passes of deformation, the alloy has the highest mechanical properties, with tensile strength, yield strength, and elongation reaching 317 MPa, 233 MPa, and 15%, respectively.

• Periodical: Materials Science Forum (Volume 1035)
• Pages: 10-16
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1035.10
• Online since: June 2021
• Authors: Ying Ze Meng, Jian Min Yu*, Hui Sheng Yu, Yao Jin Wu, Zhi Min Zhang
• Keywords: Mechanical Properties, Mg-Gd-Y-Zn-Zr Alloy, Microstructure, Texture

References

[1] Mordike, B.L.; Ebert, T. Magnesium: Properties-applications-potential. Mater. Sci. Eng. A 2001, 302, 37–45.

[2] Mohamed, W.; Gollapudi, S.; Charit, I.; Murty, K.L. Formability of a wrought Mg alloy evaluated by impression testing. Mater. Sci. Eng. A 2018, 712, 140–145.

DOI: 10.1016/j.msea.2017.11.088

[3] Guo, W.; Wang, Q.D.; Ye, B.; Zhou, H. Enhanced microstructure homogeneity and mechanical properties of AZ31–Si composite by cyclic closed-die forging. J. Alloys Compd. 2013, 558, 164–171.

DOI: 10.1016/j.jallcom.2012.11.067

[4] Stanford, N. Micro-alloying Mg with Y, Ce, Gd and La for texture modification -a comparative study. Mater. Sci. Eng. A 2010, 527, 2669–2677.

DOI: 10.1016/j.msea.2009.12.036

[5] Bohlen, J.; Nürnberg, M.R.; Senn, J.W.; Letzig, D.; Agnew, S.R. The texture and anisotropy of Mg-zinc-rare earth alloy sheets. Acta. Mater. 2007, 55, 2101–2112.

DOI: 10.1016/j.actamat.2006.11.013

[6] Nie, J.F.; Zhu, Y.M.; Morton, A.J. On the structure, transformation and deformation of long-period stacking ordered phases in Mg-Y-Zn alloys. Metall. Mater. Trans. A 2014, 45, 3338–3348.

DOI: 10.1007/s11661-014-2301-6

[7] Zhang, D.X.; Tan, Z.; Huo, Q.H.; Xiao, Z.Y.; Fang, Z.W.; Yang, X.Y. Dynamic recrystallization behaviors of Mg-Gd-Y-Zn-Zr alloy with different morphologies and distributions of LPSO phases. Mater. Sci. Eng. A 2018, 715, 389–403.

DOI: 10.1016/j.msea.2017.12.103

[8] Li Y , Wang J , Liu X , et al. Accelerated and enhanced aging hardening response of the pre-aged and HPT-processed Mg-Zn-Y alloy by HAADF-STEM[J]. Materials Letters, 261.

DOI: 10.1016/j.matlet.2019.127096

[9] Ma X , Prameela S E , Yi P , et al. Dynamic Precipitation and Recrystallization in Mg-9wt.%Al During Equal-Channel Angular Extrusion: A Comparative Study to Conventional Aging[J]. Acta Materialia, (2019).

DOI: 10.1016/j.actamat.2019.04.046

[10] Ebrahimi S H S, Dehghani K, Aghazadeh J, et al. Investigation on microstructure and mechanical properties of Al/Al-Zn-Mg–Cu laminated composite fabricated by accumulative roll bonding (ARB) process[J]. Materials Science and Engineering A, 2018, 718(MAR.7):311-320.

DOI: 10.1016/j.msea.2018.01.130

[11] Nugmanov D R, Knezevic M, Zecevic M, et al. Origin of plastic anisotropy in (ultra)-fine-grained Mg-Zn-Zr alloy processed by isothermal multi-step forging and rolling: Experiments and modeling[J]. Materials Science and Engineering A, 2018: 81-93.

DOI: 10.1016/j.msea.2017.12.045

[12] Pardis N, Talebanpour B, Ebrahimi R, et al. Cyclic expansion-extrusion (CEE): A modified counterpart of cyclic extrusion-compression (CEC)[J]. Materials Science and Engineering A, 2011, 528(25-26):7537-7540.

DOI: 10.1016/j.msea.2011.06.059

[13] Dong, B.B.; Zhang, Z.M.; Yu, J.M.; Che, X.; Meng, M.; Zhang, J.L. Microstructure, texture evolution and mechanical properties of multi-directional forged Mg-13Gd-4Y–2Zn-0.5Zr alloy under decreasing temperature. J. Alloys Compd. 2020, 823, 153776.

DOI: 10.1016/j.jallcom.2020.153776

[14] Beibei Dong, Xin Che, Zhimin Zhang, Jianmin Yu, & Mu Meng. (2020). Microstructure evolution and microhardness of Mg-13Gd-4Y–2Zn-0.5Zr alloy via pre-solution and multi-directional forging (mdf) process. Journal of Alloys and Compounds, 853.

DOI: 10.1016/j.jallcom.2020.157066

[15] Du, Y.; Zhang, Z.M.; Zhang, G.S.; Yan, Z.M.; Yu, J.M. Grain Refinement and Texture Evolution of Mg-Gd-Y-Zn-Zr Alloy Processed by Repetitive Usetting-extrusion at Decreasing Temperature. Rare Met. Mater. Eng. 2018, 47, 1422–1428.

DOI: 10.1016/s1875-5372(18)30144-9

[16] Meng, Y.Z.; Yu, J.M.; Liu, K.; Yu, H.S.; Zhang, F.; Wu, Y.J.; Zhang, Z.M.; Luo, N.N.; Wang, H.H. The evolution of long-period stacking ordered phase and its effect on dynamic recrystallization in Mg-Gd-Y-Zn-Zr alloy processed by repetitive upsetting-extrusion. J. Alloy. Compd. 2020, 828, 154454.

DOI: 10.1016/j.jallcom.2020.154454
