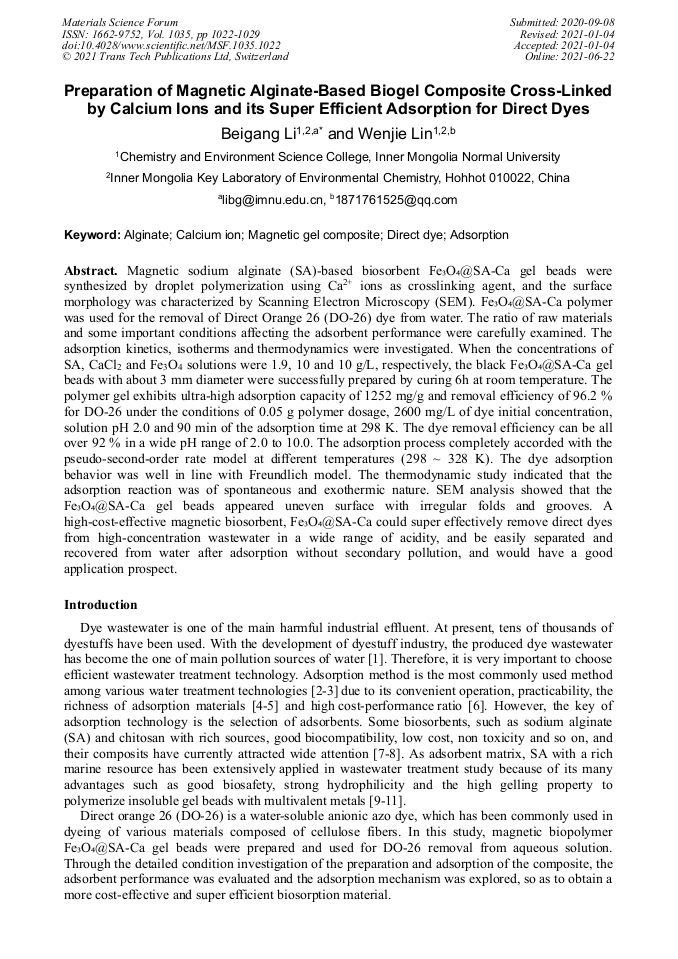

Preparation of Magnetic Alginate-Based Biogel Composite Cross-Linked by Calcium Ions and its Super Efficient Adsorption for Direct Dyes

Abstract:

Magnetic sodium alginate (SA)-based biosorbent Fe₃O₄@SA-Ca gel beads were synthesized by droplet polymerization using Ca²⁺ ions as crosslinking agent, and characterized by Scanning Electron Microscopy (SEM). Fe₃O₄@SA-Ca polymer was used for the removal of Direct Orange 26 (DO-26) dye from water. The ratio of raw materials and some important conditions affecting the adsorbent performance were carefully examined. The adsorption kinetics, isotherms and thermodynamics were investigated. When the concentrations of SA, CaCl₂ and Fe₃O₄ solutions were 1.9, 10 and 10 g/L, respectively, the black Fe₃O₄@SA-Ca gel beads with about 3 mm diameter were successfully prepared by curing 6h at room temperature. The polymer gel exhibits ultra-high adsorption capacity of 1252 mg/g and removal efficiency of 96.2 % for DO-26 under the conditions of 0.05 g polymer dosage, 2600 mg/L of dye initial concentration, solution pH 2.0 and 90 min of the adsorption time at 298 K. The dye removal efficiency can be all over 92 % in a wide pH range of 2.0 to 10.0. The adsorption process completely accorded with the pseudo-second-order rate model at different temperatures (298 ~ 328 K). The dye adsorption behavior was well in line with Freundlich model. The thermodynamic study indicated that the adsorption reaction was of spontaneous and exothermic nature. SEM analysis showed that the Fe₃O₄@SA-Ca gel beads appeared uneven surface with irregular folds and grooves. A high-cost-effective magnetic biosorbent, Fe₃O₄@SA-Ca can super effectively remove direct dyes from high-concentration wastewater in a wide range of acidity, and can be easily separated and recovered from water after adsorption without secondary pollution, and would have a good application prospect.

• Periodical: Materials Science Forum (Volume 1035)
• Pages: 1022-1029
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1035.1022
• Online since: June 2021
• Authors: Bei Gang Li*, Wen Jie Lin
• Keywords: Adsorption, Alginate, Calcium Ion, Direct Dye, Magnetic Gel Composite

References

[1] A. Hassani, R. D. C. Soltani, S. Karaca, A. Khataee. Preparation of montmorillonite-alginate nanobiocomposite for adsorption of a textile dye in aqueous phase: isotherm, kinetic and experimental design approaches. Journal of Industrial and Engineering Chemistry 21 (2015) 1197-1207.

DOI: 10.1016/j.jiec.2014.05.034

[2] J.M. Dickhout, J. Moreno, P.M. Biesheuvel, et al. Produced water treatment by membranes: a review from a colloidal perspective. J. Colloid Interface Sci. 487 (2017) 523-534.

DOI: 10.1016/j.jcis.2016.10.013

[3] B. Zhang, Y. Wu, L. Cha. Removal of Methyl Orange Dye Using Activated Biochar Derived from Pomelo Peel Wastes: Performance, Isotherm, and Kinetic Studies. J. Disper. Sci. Techno. 41 (2020) 125-136.

DOI: 10.1080/01932691.2018.1561298

[4] M.T. Yagub, T.K. Sen, S. Afroze, H.M. Ang. Dye and Its Removal from Aqueous Solution by Adsorption: a Review. Adv. Colloid Interface Sci. 209 (2014) 172-184.

DOI: 10.1016/j.cis.2014.04.002

[5] J. Shi, H. Zhang, Y. Yu, M. Yan, L. Liu, H. Zhu, Y. Ye, Y. Zhao, J. Guo. Preparation and Adsorption Properties of Magnetic Composite Microspheres Containing Metal-Organic Double Network Structure. J. Inorg. Organomet. P. 30(2020) 2301-2314.

DOI: 10.1007/s10904-020-01526-5

[6] C. Sophia A., E.C. Lima. Removal of emerging contaminants from the environment by adsorption. Ecotoxicol. Environ. Saf. 150 (2018) 1-17.

[7] G.Z. Kyzas, D.N. Bikiaris, A.C. Mitropoulos. Chitosan Adsorbents for Dye Removal: a Review. Polym. Int. 88 (2017) 1800-1811.

DOI: 10.1002/pi.5467

[8] B. Li, H. Yin. Superior Adsorption Property of a Novel Green Biosorbent Yttrium/Alginate Gel Beads for Dyes from Aqueous Solution. J. Polym. Environ. 28 (2020) 2137-2148.

DOI: 10.1007/s10924-020-01757-0

[9] S. Asadi, S. Eris, S. Azizian. Alginate-based Hydrogel Beads as a Biocompatible and Efficient Adsorbent for Dye Removal from Aqueous Solutions. ACS Omega, 3 (2018) 15140-15148.

DOI: 10.1021/acsomega.8b02498

[10] S. Agnihotri, R. Singhal. Effect of Sodium Alginate Content in Acrylic Acid/sodium Humate/sodium Alginate Superabsorbent Hydrogel on Removal Capacity of MB and CV Dye by Adsorption. J. Polym. Environ. 27 (2019) 372-385.

DOI: 10.1007/s10924-018-1349-6

[11] J. Feng, H. Ding, G.Yang, R. Wang, S. Li, J. Liao, Z. Li, D. Chen. Preparation of black-pearl reduced graphene oxide-sodium alginate hydrogel microspheres for adsorbing organic pollutants. Journal of Colloid and Interface Science, 508 (2017) 387-395.

DOI: 10.1016/j.jcis.2017.07.113

[12] B. Li, Z. Ren. Superior adsorption of direct dye from aqueous solution by Y(III)- chitosan-doped fly ash composite as low-cost adsorbent. J. Polym. Environ. 28 (2020) 1811-1821.

DOI: 10.1007/s10924-020-01728-5

[13] S. Lagergren. Zur theorie der sogenannten adsorption gelöster stoffe. K. Sven. Vetenskapsakad. Handl., Band. 24 (1898) 1-39.

[14] Y.S. Ho, G. McKay. Sorption of dye from aqueous solution by peat, Chem. Eng. J. 70 (1998) 115-124.

DOI: 10.1016/s0923-0467(98)00076-1

[15] T. Anitha, P. Senthil Kumar, K. Sathish Kumar. Synthesis of nano-sized chitosan blended polyvinyl alcohol for the removal of Eosin Yellow dye from aqueous solution. Journal of Water Process Engineering 13 (2016) 127-136.

DOI: 10.1016/j.jwpe.2016.08.003

[16] S. Saber-Samandari, S. Saber-Samandari, H. Joneidi-Yekta, M. Mohseni. Adsorption of anionic and cationic dyes from aqueous solution using gelatin-based magnetic nanocomposite beads comprising carboxylic acid functionalized carbon nanotube. Chem. Eng. J. 308 (2017) 1133-1144.

DOI: 10.1016/j.cej.2016.10.017

[17] B. Li, Z. Zen. Superior Adsorption of Direct Dye from Aqueous Solution by Y(III)-Chitosan-Doped Fly Ash Composite as Low-Cost Adsorbent. J. Polym. Environ. 28 (2020) 1811-1821.

DOI: 10.1007/s10924-020-01728-5

[18] Yuqi Wang, Yanhui Li, Hong Li, Heng Zheng, Qiuju Du. Equilibrium, Kinetic and Thermodynamic Studies on Methylene Blue Adsorption by Konjac Glucomannan/Activated Carbon Aerogel. J. Polym. Environ. 27 (2019) 1342-1351.

DOI: 10.1007/s10924-019-01420-3
