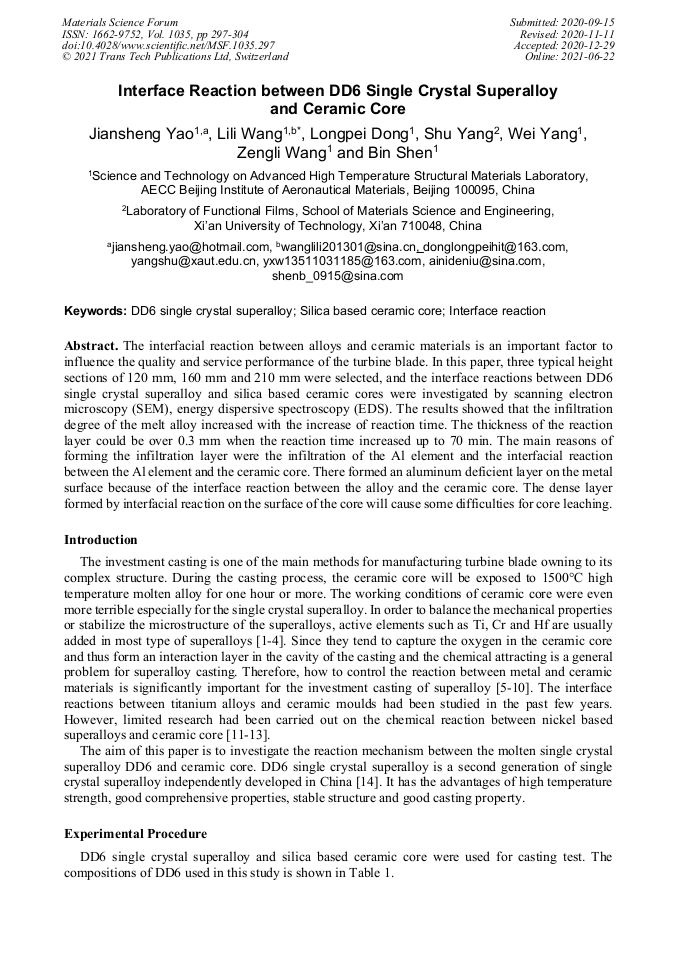

Interface Reaction between DD6 Single Crystal Superalloy and Ceramic Core

Abstract:

The interfacial reaction between alloys and ceramic materials is an important factor to influence the quality and service performance of the turbine blade. In this paper, three typical height sections of 120mm, 160mm and 210mm were selected, and the interface reactions between DD6 single crystal superalloy and silica based ceramic cores were investigated by scanning electron microscopy (SEM), energy dispersive spectroscopy (EDS). The results showed that the infiltration degree of the melt alloy increases with the increase of reaction time. The thickness of the reaction layer could be over 0.3mm when the reaction time increased up to 70min. The main reasons of forming the infiltration layer were the infiltration of the Al element and the interfacial reaction between the Al element and the ceramic core. There formed an aluminum deficient layer on the metal surface because of the interface reaction between the alloy and the ceramic core. The dense layer formed by interfacial reaction on the surface of the core will cause some difficulties for core leaching. Keywords: DD6 single crystal superalloy; Silica based ceramic core; Interface reaction

• Periodical: Materials Science Forum (Volume 1035)
• Pages: 297-304
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1035.297
• Online since: June 2021
• Authors: Jian Sheng Yao, Long Pei Dong, Li Li Wang*, Shu Yang, Wei Yang, Zeng Li Wang, Bin Shen
• Keywords: DD6 Single Crystal Superalloy, Interface Reaction, Silica Based Ceramic Core

References

[1] Lun Sin, S.; Dube', D.; Tremblay, R. Interfacial reactions between AZ91D magnesium alloy and plaster mould material during investment casting. Materials Science and Technology, 2006, 22, 1456-63.

DOI: 10.1179/174328406x148804

[2] Hassan Jafari, MohdHasbullah Idris & Ali Ourdjini. A review of ceramic shell investment casting of magnesium alloys and mold-metal reaction suppression. Materials and Manufacturing Processes, 2013, 28: 843-56.

[3] Link F, Lin c c. Interfacial reaction between zirconia and titanium. ScriptaMaterialia, 1998, 39(IO): 1333-8.

[4] Jia Q, Cui Y Y. intensified interfacial reactions between gamma titanium aluminide and CaOStabilized ZrO2. International journal of cast metals research, 2004, 17(1): 23-7.

DOI: 10.1179/136404604225014800

[5] X. Y. Virieux, J. Desmaison, J. C. Labbe, et al. Interaction between Two Ni-Base Alloys and Oxide Ceramics: SiO2, ZrO2, HfO2, Al2O3, Materials Science, 1997: 925~932.

[6] Dina R. Taarea, William F. Gale, Jeffrey W. Fergus, Reactions Between Constituents of Two Molten Nickel-Base Superalloys and Ceramic Materials, Proceedings from Joining of Advanced and Specialty Materials, 2003, 10: 13~15.

[7] Liu Aihui, Li Bangsheng, Nan Hai, Sui Yanwei, et al. Study of Interfacial Reaction between TiAl Alloys and Four Ceramic Molds, Rare Metal Materials and Engineering, 2008, 37(6): 0956~0959.

DOI: 10.1016/s1875-5372(09)60028-x

[8] Susan B. Sinnotta, Elizabeth C. Dickey. Ceramic/metal interface structures and their relationship to atomic- and meso-scale properties. Materials Science and Engineering, 2003, 43:1–59.

DOI: 10.1016/j.mser.2003.09.001

[9] J. A. Yeomans, T. F. Page. Studies of ceramic-liquid metal reaction interfaces. Journal of Materials Science, 1990, 25: 2312-20.

[10] F. Valenza, M.L. Muolo, A. Passerone, Wetting and interactions of Ni- and Cobasedsuperalloys with different ceramic materials, J. Mater. Sci. 45 (2010) 2071-2079.

DOI: 10.1007/s10853-009-3801-4

[11] Li Qing, Song Jinxia, Wang Dinggang, et al. Effect of Cr, Hf and temperature on interface reaction between nickel melt and silicon oxide core, Real Metals, 2011, 30: 405~409.

DOI: 10.1007/s12598-011-0313-6

[12] Zheng liang, Xiao Chengbo, Zhang Guoqing, et al. Investigation of Interfacial Reaction between High Cr Content Cast Nickel Based Superalloy K4648 and Ceramic Cores, Journal of Aeronautical Materials, 2012, 32(3): 10-22.

[13] Wang Lili, Li Jiarong, Tang Dingzhong, et al. Interfacial Reactions Between SiO2-ZrO2 Ceramic Core and DZ125, DD5, DD6 Casting Superalloys, J. Mater. Eng. 44 (2016) 9-14.

[14] The editor Committee of «China Aeronautical Materials Handbook», China Aeronautical Materials Handbook, The Second Version, Standards Press of China, 2002: 722, 771.

[15] Ihsan Barin, Thermochemical Data of Pure Substances, Germany: WILEY-VCH Verlag GmbH, (1995).
