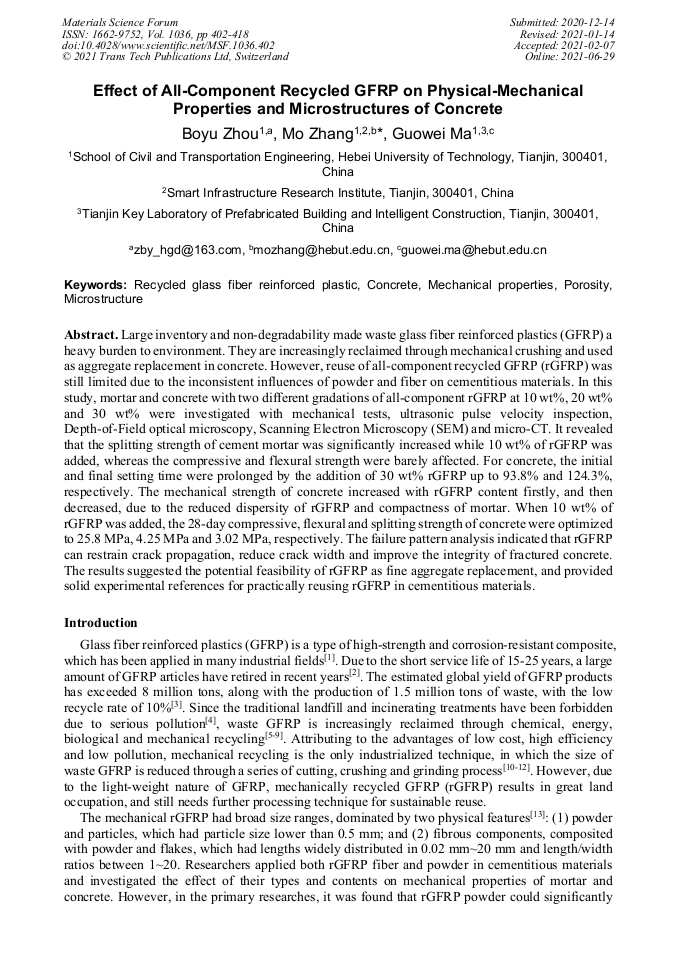

Effect of All-Component Recycled GFRP on Physical-Mechanical Properties and Microstructures of Concrete

Abstract:

Large inventory and non-degradability made waste glass fiber reinforced plastics (GFRP) a heavy burden to environment. They are increasingly reclaimed through mechanical crushing and used as aggregate replacement in concrete. However, reuse of all-component recycled GFRP (rGFRP) was still limited due to the inconsistent influences of powder and fiber on cementitious materials. In this study, mortar and concrete with two different gradations of all-component rGFRP at 10 wt%, 20 wt% and 30 wt% were investigated with mechanical tests, ultrasonic pulse velocity inspection, Depth-of-Field optical microscopy, Scanning Electron Microscopy (SEM) and micro-CT. It revealed that the splitting strength of cement mortar was significantly increased while 10 wt% of rGFRP was added, whereas the compressive and flexural strength were barely affected. For concrete, the initial and final setting time were prolonged by the addition of 30 wt% rGFRP up to 93.8% and 124.3%, respectively. The mechanical strength of concrete increased with rGFRP content firstly, and then decreased, due to the reduced dispersity of rGFRP and compactness of mortar. When 10 wt% of rGFRP was added, the 28-day compressive, flexural and splitting strength of concrete were optimized to 25.8 MPa, 4.25 MPa and 3.02 MPa, respectively. The failure pattern analysis indicated that rGFRP can restrain crack propagation, reduce crack width and improve the integrity of fractured concrete. The results suggested the potential feasibility of rGFRP as fine aggregate replacement, and provided solid experimental references for practically reusing rGFRP in cementitious materials.

• Periodical: Materials Science Forum (Volume 1036)
• Pages: 402-418
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.1036.402
• Online since: June 2021
• Authors: Bo Yu Zhou, Mo Zhang*, Guo Wei Ma
• Keywords: Concrete, Mechanical Properties, Microstructure, Porosity, Recycled Glass Fiber Reinforced Plastic

References

[1] M. Izquierdo, X. Querol, J. Davidovits, et al., Coal fly ash-slag-based geopolymers: Microstructure and metal leaching, J Hazard Mater 166(1) (2009) 561-6.

DOI: 10.1016/j.jhazmat.2008.11.063

[2] A. Rahimizadeh, J. Kalman, K. Fayazbakhsh, et al., Recycling of fiberglass wind turbine blades into reinforced filaments for use in additive manufacturing, Compos. B. Eng. 175 (2019) 107101.

DOI: 10.1016/j.compositesb.2019.107101

[3] Y.C. Feng, F.Q. Zhao, H. Xu, Recycling and utilization of waste glass fiber reinforced plastics, Matec Web Conf 67 (2016).

DOI: 10.1051/matecconf/20166707012

[4] C.B. Farinha, J. De Brito, R. Veiga, Assessment of glass fibre reinforced polymer waste reuse as filler in mortars, J. Clean. Prod. 210 (2019) 1579-1594.

DOI: 10.1016/j.jclepro.2018.11.080

[5] E. Arioz, O. Arioz, O.M. Kockar, Leaching of f-type fly ash based geopolymers, Procedia Engineering 42 (2012) 1114-1120.

DOI: 10.1016/j.proeng.2012.07.503

[6] S. Ahmari, L. Zhang, Durability and leaching behavior of mine tailings-based geopolymer bricks, Constr. Build. Mater. 44 (2013) 743-750.

DOI: 10.1016/j.conbuildmat.2013.03.075

[7] J. Zhou, X. Chen, L. Wu, et al., Influence of free water content on the compressive mechanical behaviour of cement mortar under high strain rate, Sadhana 36(3) (2011) 357-369.

DOI: 10.1007/s12046-011-0024-6

[8] X. Chen, W. Huang, J. Zhou, Effect of moisture content on compressive and split tensile strength of concrete, Indian. J. Eng. Mater. S. 19(6) (2012) 427-435.

[9] P.R. Souza, C.S. Nunes, A.R. Freitas, et al., Sub- and supercritical d-limonene technology as a green process to recover glass fibres from glass fibre-reinforced polyester composites, J. Clean. Prod. 254 (2020) 119984.

DOI: 10.1016/j.jclepro.2020.119984

[10] M.K. Hagnell, M. kermo, The economic and mechanical potential of closed loop material usage and recycling of fibre-reinforced composite materials, J. Clean. Prod. 223 (2019) 957-968.

DOI: 10.1016/j.jclepro.2019.03.156

[11] D.S. Cousins, Y. Suzuki, R.E. Murray, et al., Recycling glass fiber thermoplastic composites from wind turbine blades, J. Clean. Prod. 209 (2019) 1252-1263.

DOI: 10.1016/j.jclepro.2018.10.286

[12] G. Oliveux, L.O. Dandy, G.A. Leeke, Current status of recycling of fibre reinforced polymers: Review of technologies, reuse and resulting properties, Progress in Materials Science 72 (2015) 61-99.

DOI: 10.1016/j.pmatsci.2015.01.004

[13] J.R. Correia, N.M. Almeida, J.R. Figueira, Recycling of frp composites: Reusing fine gfrp waste in concrete mixtures, J. Clean. Prod. 19(15) (2011) 1745-1753.

DOI: 10.1016/j.jclepro.2011.05.018

[14] E. Clark, M. Bleszynski, F. Valdez, et al., Recycling carbon and glass fiber polymer matrix composite waste into cementitious materials, Resour. Conserv. Recycl. 155 (2020) 104659.

DOI: 10.1016/j.resconrec.2019.104659

[15] P. Asokan, M. Osmani, A.D.F. Price, Assessing the recycling potential of glass fibre reinforced plastic waste in concrete and cement composites, Journal of Cleaner Production 17(9) (2009) 821-829.

DOI: 10.1016/j.jclepro.2008.12.004

[16] P. Asokan, M. Osmani, A.D.F. Price, Improvement of the mechanical properties of glass fibre reinforced plastic waste powder filled concrete, Constr. Build. Mater. 24(4) (2010) 448-460.

DOI: 10.1016/j.conbuildmat.2009.10.017

[17] H. Rodin, S. Nassiri, K. Englund, et al., Recycled glass fiber reinforced polymer composites incorporated in mortar for improved mechanical performance, Constr. Build. Mater. 187 (2018) 738-751.

DOI: 10.1016/j.conbuildmat.2018.07.169

[18] R.M. Novais, J. Carvalheiras, M.N. Capela, et al., Incorporation of glass fibre fabrics waste into geopolymer matrices: An eco-friendly solution for off-cuts coming from wind turbine blade production, Constr. Build. Mater. 187 (2018) 876-883.

DOI: 10.1016/j.conbuildmat.2018.08.004

[19] M.C.S. Ribeiro, A.C. Meira-Castro, F.G. Silva, et al., Re-use assessment of thermoset composite wastes as aggregate and filler replacement for concrete-polymer composite materials: A case study regarding gfrp pultrusion wastes, Resour. Conserv. Recycl. 104 (2015) 417-426.

DOI: 10.1016/j.resconrec.2013.10.001

[20] A. Dehghan, K. Peterson, A. Shvarzman, Recycled glass fiber reinforced polymer additions to portland cement concrete, Constr. Build. Mater. 146 (2017) 238-250.

DOI: 10.1016/j.conbuildmat.2017.04.011

[21] N. Sebaibi, M. Benzerzour, N.E. Abriak, Influence of the distribution and orientation of fibres in a reinforced concrete with waste fibres and powders, Constr. Build. Mater. 65 (2014) 254-263.

DOI: 10.1016/j.conbuildmat.2014.04.134

[22] R.M. Novais, J. Carvalheiras, M.P. Seabra, et al., Effective mechanical reinforcement of inorganic polymers using glass fibre waste, J. Clean. Prod. 166 (2017) 343-349.

DOI: 10.1016/j.jclepro.2017.07.242

[23] D. García, I. Vegas, I. Cacho, Mechanical recycling of gfrp waste as short-fiber reinforcements in microconcrete, Constr. Build. Mater. 64 (2014) 293-300.

DOI: 10.1016/j.conbuildmat.2014.02.068

[24] F. Tittarelli, Effect of low dosages of waste grp dust on fresh and hardened properties of mortars: Part 2, Constr. Build. Mater. 47 (2013) 1539-1543.

DOI: 10.1016/j.conbuildmat.2013.06.086

[25] F. Tittarelli, S.P. Shah, Effect of low dosages of waste grp dust on fresh and hardened properties of mortars: Part 1, Constr. Build. Mater. 47 (2013) 1532-1538.

DOI: 10.1016/j.conbuildmat.2013.06.043
