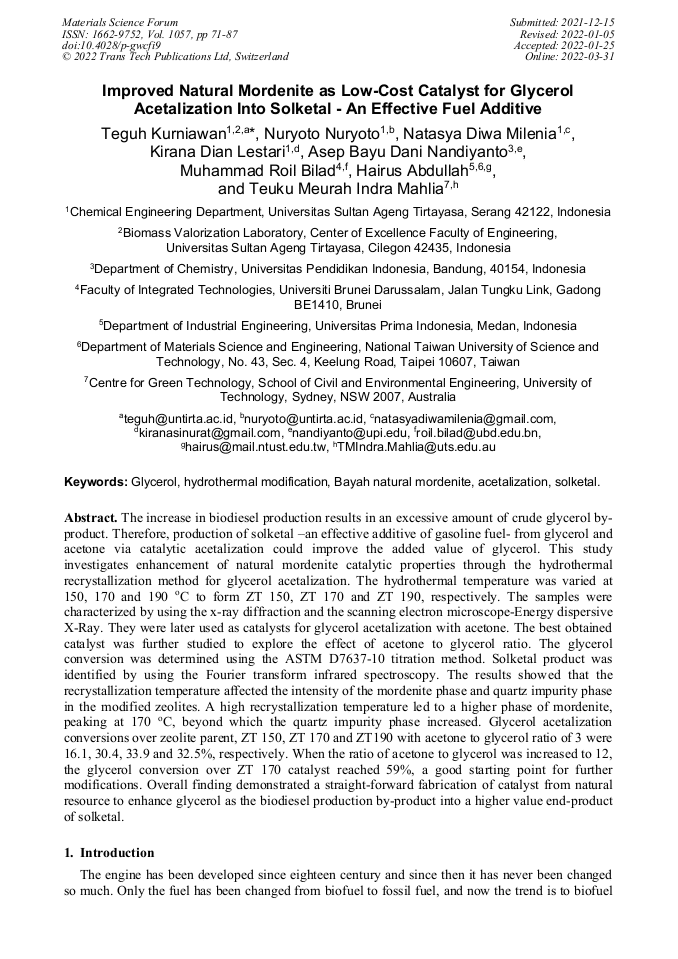

Improved Natural Mordenite as Low-Cost Catalyst for Glycerol Acetalization into Solketal – An Effective Fuel Additive

Abstract:

The increase in biodiesel production results in an excessive amount of crude glycerol by-product. Therefore, production of solketal –an effective additive of gasoline fuel-from glycerol and acetone via catalytic acetalization could improve the added value of glycerol. This study investigates enhancement of natural mordenite catalytic properties through the hydrothermal recrystallization method for glycerol acetalization. The hydrothermal temperature was varied at 150, 170 and 190 oC to form ZT 150, ZT 170 and ZT 190, respectively. The samples were characterized using the x-ray diffraction and the scanning electron microscope-Energy dispersive X-Ray. They were later used as catalysts for glycerol acetalization with acetone. The best obtained catalyst was further studied to explore the effect of acetone on glycerol ration. The glycerol conversion was deter-mined using the ASTM D7637-10 titration method. Solketal product was identified by using the Fourier transform infrared spectroscopy. The results show that the recrystallization temperature affects the intensity of the mordenite phase and quartz impurity phase in the modified zeolites. A high recrystallization temperature led to a higher phase of mordenite, peaking at 170oC, beyond which the quartz impurity phase increased. Glycerol acetalization conversions over zeolite parent, ZT 150, ZT 170 and ZT190 with acetone to glycerol ratio of 3 were 16.1%, 30.4%, 33.9% and 32.5%, respectively. When the ratio of acetone to glycerol was increased to 12, the glycerol conversion over ZT 170 catalyst reached 59%, a good starting point for further modifications. Overall finding demonstrated a straight-forward fabrication of catalyst from natural resource to enhance glycerol as the biodiesel production by-product into a higher value end-product of solketal.

• Periodical: Materials Science Forum (Volume 1057)
• Pages: 71-87
• DOI: https://doi.org/10.4028/p-gwcfi9
• Online since: March 2022
• Authors: Teguh Kurniawan*, Nuryoto Nuryoto, Natasya Diwa Milenia, Kirana Dian Lestari, Asep Bayu Dani Nandiyanto, Muhammad Roil Bilad, Hairus Abdullah, Teuku Meurah Indra Mahlia
• Keywords: Acetalization, Bayah Natural Mordenite, Glycerol, Hydrothermal Modification, Solketal
