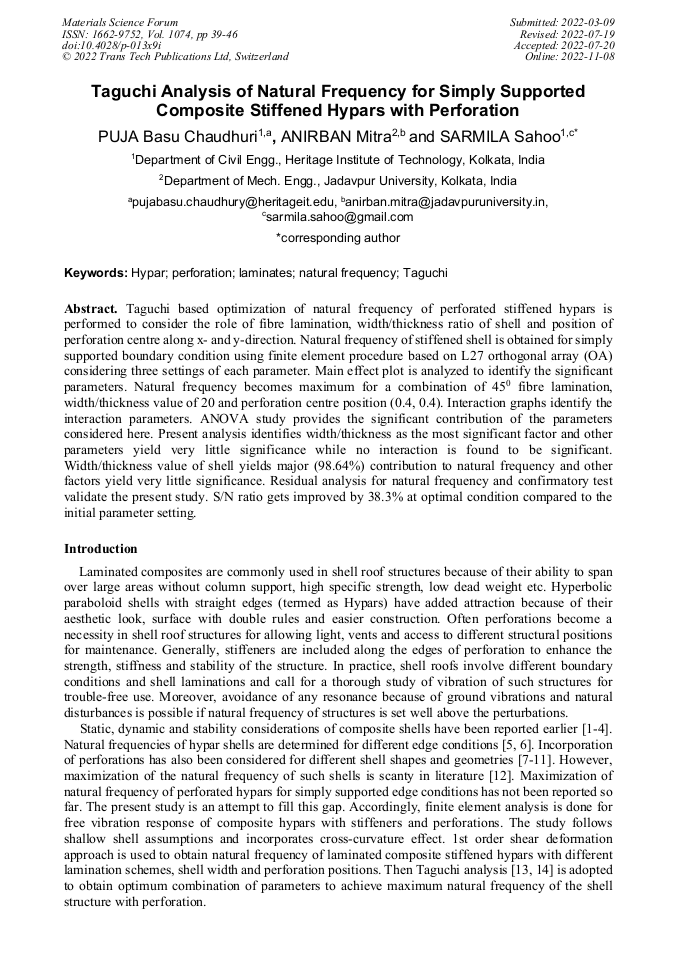

Taguchi Analysis of Natural Frequency for Simply Supported Composite Stiffened Hypars with Perforation

Abstract:

Taguchi based optimization of natural frequency of perforated stiffened hypars is performed to consider the role of fibre lamination, width/thickness ratio of shell and position of perforation centre along x- and y-direction. Natural frequency of stiffened shell is obtained for simply supported boundary condition using finite element procedure based on L27 orthogonal array (OA) considering three settings of each parameter. Main effect plot is analyzed to identify the significant parameters. Natural frequency becomes maximum for a combination of 45⁰ fibre lamination, width/thickness value of 20 and perforation centre position (0.4, 0.4). Interaction graphs identify the interaction parameters. ANOVA study provides the significant contribution of the parameters considered here. Present analysis identifies width/thickness as the most significant factor and other parameters yield very little significance while no interaction is found to be significant. Width/thickness value of shell yields major (98.64%) contribution to natural frequency and other factors yield very little significance. Residual analysis for natural frequency and confirmatory test validate the present study. S/N ratio gets improved by 38.3% at optimal condition compared to the initial parameter setting.

• Periodical: Materials Science Forum (Volume 1074)
• Pages: 39-46
• DOI: https://doi.org/10.4028/p-013x9i
• Online since: November 2022
• Authors: Puja Basu Chaudhuri, Anirban Mitra, Sarmila Sahoo*
• Keywords: Cut-Out, Hypar Shell, Laminated Composite, Natural Frequency, Taguchi Optimization

References

[1] S. Sahoo, D. Chakravorty, Finite element bending behaviour of composite hyperbolic paraboloidal shells with various edge conditions, J. Strain Analysis for Engineering Design, 39(5) (2004) 499-513.

DOI: 10.1243/0309324041896434

[2] S. Sahoo, D. Chakravorty, Bending of composite stiffened hypar shell roofs under point load, ASCE J. Engineering Mechanics, 134 (6) (2008) 441-454.

DOI: 10.1061/(asce)0733-9399(2008)134:6(441)

[3] S. Sahoo, Buckling characteristics of cut-out borne composite stiffened hyperbolic paraboloid shell panel, Proc. Inst. Mech. Eng., Part L: J. Materials: Design and Applications, 235(11) (2021) 2404-2422.

DOI: 10.1177/14644207211005802

[4] S. Sahoo, Free vibration behavior of laminated composite stiffened elliptic parabolic shell panel with cutout, Curved and Layered Structures, 2(1) (2015) 162-182.

DOI: 10.1515/cls-2015-0009

[5] D. Chakravorty, J.N. Bandyopadhyay, P.K. Sinha, Applications of FEM on free and forced vibration of laminated shells, ASCE J. Engineering Mechanics, 124(1) (1998) 1–8.

DOI: 10.1061/(asce)0733-9399(1998)124:1(1)

[6] S. Sahoo, D. Chakravorty, Finite element vibration characteristics of composite hypar shallow shells with various edge supports, J. Vibration and Control, 11(10) (2005) 1291-1309.

DOI: 10.1177/1077546305057260

[7] S. Sahoo, Laminated composite stiffened shallow spherical panels with cutouts under free vibration–A finite element approach, Engineering Science and Technology, An International Journal 17(4) (2014) 247-259.

DOI: 10.1016/j.jestch.2014.07.002

[8] S. Sahoo, Free vibration of laminated composite hypar shell roofs with cutouts, Advances in Acoustics and Vibration, Article ID: 403684 (2011) 1-13.

DOI: 10.1155/2011/403684

[9] S. Sahoo, Dynamic characters of stiffened composite conoidal shell roofs with cutouts: design aids and selection guidelines, Journal of Engineering, Article ID: 230120 (2013) 1-18.

DOI: 10.1155/2013/230120

[10] S. Sahoo, Design Aids for Stiffened Composite Shells with Cutouts, Springer, Singapore, (2017).

[11] S. Sahoo, Characteristics of vibrating composite stiffened hypars with cut-out at different modes, Engineering Transactions 67(1) (2019) 75–99.

[12] P.B. Chaudhuri, A. Mitra, S. Sahoo, Design of experiments analysis of fundamental frequency of laminated composite hypar shells with cut-out, Materials Today: Proceedings, (2022), in press, doi.org/10.1016/j.matpr.2022.06.327.

DOI: 10.1016/j.matpr.2022.06.327

[13] G. Taguchi, Introduction to Quality Engineering, Asian Productivity Organization, Tokyo, (1990).

[14] P.J. Ross, Taguchi Techniques for Quality Engineering, McGraw Hill, New York, (1996).

[15] D.C. Montgomery, Design and Analysis of Experiments, Wiley, New York, (2001).

[16] Minitab User Manual (Release 13.2), Making Data Analysis Easier (MINITAB Inc., State College, PA, USA), (2001).
