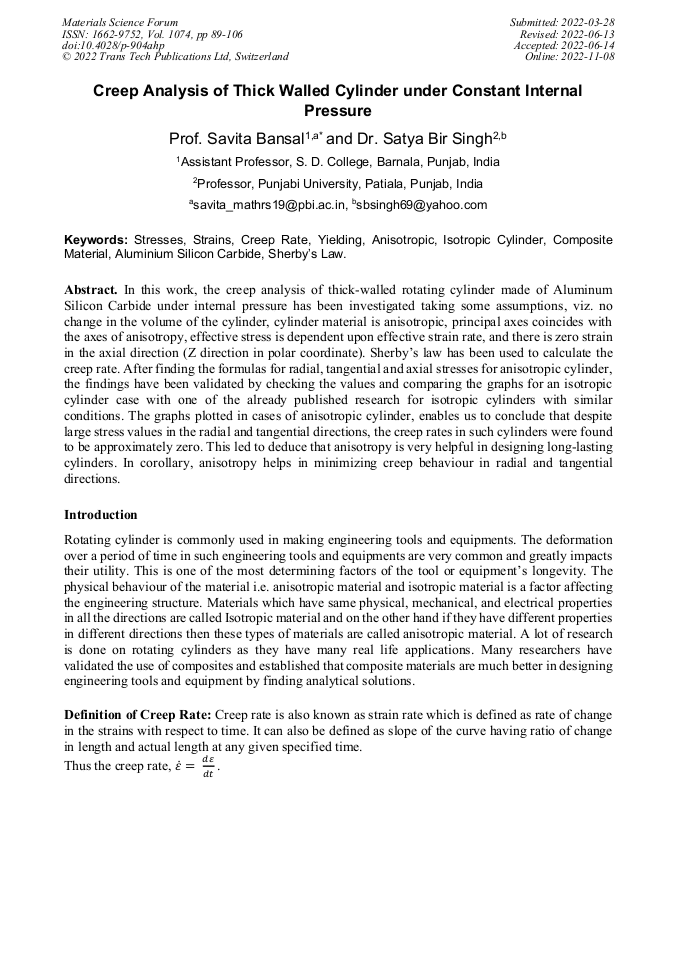

Creep Analysis of Thick Walled Cylinder under Constant Internal Pressure

Abstract:

In this work, the creep analysis of thick-walled rotating cylinder made of Aluminum Silicon Carbide under internal pressure has been investigated taking some assumptions, viz. no change in the volume of the cylinder, cylinder material is anisotropic, principal axes coincides with the axes of anisotropy, effective stress is dependent upon effective strain rate, and there is zero strain in the axial direction (Z direction in polar coordinate). Sherby’s law has been used to calculate the creep rate. After finding the formulas for radial, tangential and axial stresses for anisotropic cylinder, the findings have been validated by checking the values and comparing the graphs for an isotropic cylinder case with one of the already published research for isotropic cylinders with similar conditions. The graphs plotted in cases of anisotropic cylinder, enables us to conclude that despite large stress values in the radial and tangential directions, the creep rates in such cylinders were found to be approximately zero. This led to deduce that anisotropy is very helpful in designing long-lasting cylinders. In corollary, anisotropy helps in minimizing creep behaviour in radial and tangential directions.

• Periodical: Materials Science Forum (Volume 1074)
• Pages: 89-106
• DOI: https://doi.org/10.4028/p-904ahp
• Online since: November 2022
• Authors: Savita Bansal*, Satya Bir Singh
• Keywords: Aluminium Silicon Carbide, Anisotropic, Composite Material, Creep Rate, Isotropic Cylinder, Sherby’s Law, Strains, Stresses, Yielding

References

[1] C. Badini, SiC Wiskers-Aluminium 6061 Composite: Microstructure and Mechanical Characterstic Anisotropy, Journal of Material Science 25 (1990) 2607-2614.

DOI: 10.1007/bf00638066

[2] D. H. Pai, Steady State Creep Analysis of Thick Walled Orthotropic Cylinders, Int. J. Mech. Sci. 9 (1967) 335-348.

DOI: 10.1016/0020-7403(67)90039-2

[3] F. P. J. Rimrott and J. R. Luke, Large Strain Creep of Rotating Cylinders, ZAMM 41 (12) (1961) 485-500.

DOI: 10.1002/zamm.19610411203

[4] F. P. J. Rimrott, Earl J. Mills and Joseph Marin, Prediction of Creep Failure Time for Pressure Vessels, Journal of Applied Mechanics 27 (1960) 303-308.

DOI: 10.1115/1.3643956

[5] G.E. Dieter, Mechanical Metallurgy, McGraw-Hill, London, (1988).

[6] Gagandeep Singh Kohli, Tejeet Singh and Harwinder Singh, Creep Analysis in Thick Composite Cylinder Considering Large Strain, Journal of the Brazilian Society of Mechanical Sciences and Engineering 42:68 (2020) 1-8.

DOI: 10.1007/s40430-019-2152-6

[7] J. W. Schweiker and O. M. Sidebottom, Creep of Thick Walled Cylinders subjected to Internal Pressure and Axial Load, Experimental Mechanics 5 (1965) 186-192.

DOI: 10.1007/bf02328425

[8] Jian Jun Chen, Shan Tung Tu, Fu Zhen Xuan and Zheng Dong Wang, Creep Analysis for a Functionally Graded Cylinder Subjected to Internal and External Pressure, J. Strain Analysis 42 (2007) 69-77.

DOI: 10.1243/03093247jsa237

[9] K. Abrinia, H. Naee, F. Sadeghi and F. Djavanroodi, New Analysis for the FGM Thick Cylinders Under Combined Pressure and Temperature Loading, American Journal of Applied Sciences 5(7) (2008) 852-859.

DOI: 10.3844/ajassp.2008.852.859

[10] N. Habibi, S. Samawati and O. Ahmadi, Creep Analysis of the FGM Cylinder Under Steady State Symmetric Loading, Journal of Stress Analysis 1 (1) (Spring – Summer 2016) 9-21.

[11] N. S. Bhatnagar and R. P. Gupta, On the Constitutive Equations of the Orthotropic Theory of Creep, Journal of the Physical Society of Japan 21 (5) (1966) 1003-1007.

DOI: 10.1143/jpsj.21.1003

[12] N. S. Bhatnagar and S. K. Gupta, Analysis of Thick Walled Orthotropic Cylinder in the theory of creep, Journal of the Physical Society of Japan 27 (6) (1969) 1655-1661.

DOI: 10.1143/jpsj.27.1655

[13] N. S. Bhatnagar and V. K. Arya, Large Strain Creep Analysis of Thick Walled Cylinders, International Journal of Non-Linear Mechanics Vol. 9 (1974) 127-140.

DOI: 10.1016/0020-7462(74)90004-3

[14] N. S. Bhatnagar, P. S. Kulkarni and V. K. Arya, Creep Analysis of Orthotropic Rotating Cylinders Considering Finite Strains, Int. J. Non-Linear Mechanics 21 (1) (1986) 61-71.

DOI: 10.1016/0020-7462(86)90013-2

[15] N. S. Bhatnagar, V. K. Arya and K. K. Debnath, Creep Analysis of Orthotropic Rotating Cylinder, Journal of Pressure Vessel Technology 102 (1980) 371-377.

DOI: 10.1115/1.3263347

[16] R. H. King and W. W. Mackie, Creep of Thick-Walled Cylinders, Journal of Basic Engineering 89(4) (1967) 877-884.

DOI: 10.1115/1.3609729

[17] R. Hill, A Theory of the Yielding and Plastic Flow of Anisotropic Metals, (1947).

[18] S. B. Singh and S. Ray, Modeling the Anisotropy and Creep in Orthotropic Aluminum- Silicon Carbide Composite Rotating Disc, Mechanics of Materials 34 (2002) 363-372.

DOI: 10.1016/s0167-6636(02)00132-1

[19] Tejeet Singh and Ishavneet Singh, Modeling to Steady State Creep in Thick-Walled Cylinders under Internal Pressure, International Journal of Mechanical and Mechatronics Engineering 10 (5) (2016).

[20] Tejeet Singh and V. K. Gupta, Effect of Material Parameters on Steady State Creep in a Thick Composite Cylinder Subjected to Internal Pressure, The Journal of Engineering Research 6 No. 2 (2009) 20-32.

DOI: 10.24200/tjer.vol6iss2pp20-32

[21] V. K. Arya and N. S. Bhatnagar, Creep of Thick Walled Orthotropic Cylinders Subject to Combined Internal and External Pressures, Journal Mechanical Engineering Science 18 (1) (1976) 1-5.

DOI: 10.1243/jmes_jour_1976_018_003_02
