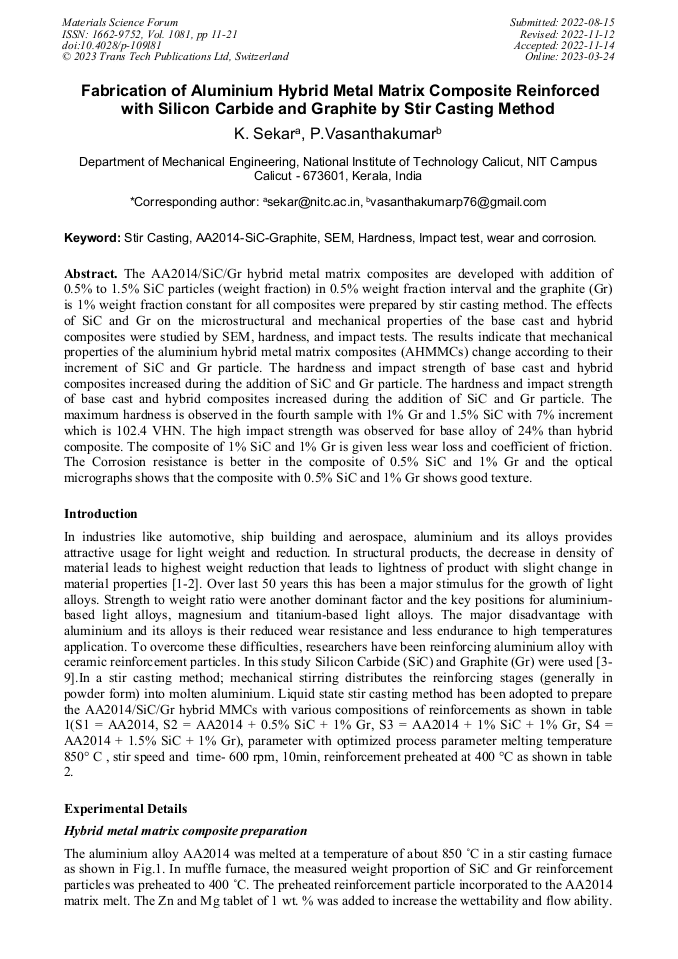

Fabrication of Aluminium Hybrid Metal Matrix Composite Reinforced with Silicon Carbide and Graphite by Stir Casting Method

Abstract:

The AA2014/SiC/Gr hybrid metal matrix composites are developed with addition of 0.5% to 1.5% SiC particles (weight fraction) in 0.5% weight fraction interval and the graphite (Gr) is 1% weight fraction constant for all composites were prepared by stir casting method. The effects of SiC and Gr on the microstructural and mechanical properties of the base cast and hybrid composites were studied by SEM, hardness, and impact tests. The results indicate that mechanical properties of the aluminium hybrid metal matrix composites (AHMMCs) change according to their increment of SiC and Gr particle. The hardness and impact strength of base cast and hybrid composites increased during the addition of SiC and Gr particle. The hardness and impact strength of base cast and hybrid composites increased during the addition of SiC and Gr particle. The maximum hardness is observed in the fourth sample with 1% Gr and 1.5% SiC with 7% increment which is 102.4 VHN. The high impact strength was observed for base alloy of 24% than hybrid composite. The composite of 1% SiC and 1% Gr is given less wear loss and coefficient of friction. The Corrosion resistance is better in the composite of 0.5% SiC and 1% Gr and the optical micrographs shows that the composite with 0.5% SiC and 1% Gr shows good texture.

• Periodical: Materials Science Forum (Volume 1081)
• Pages: 11-21
• DOI: https://doi.org/10.4028/p-109l81
• Online since: March 2023
• Authors: Kannan Sekar*, Pandian Vasanthakumar
• Keywords: AA2014-SiC-Graphite, Corrosion, Hardness, Impact Test, SEM, Stir Casting, Wear

References

[1] J. Sundaram and M. Ramajayam, "Microstructure and Mechanical Properties of Alumina and Titanium Diboride Containing AA2014 Hybrid Composites," J. Inst. Eng. Ser. D, 2019.

DOI: 10.1007/s40033-019-00187-0

[2] V. Pandian and S. Kannan, "Processing and preparation of aerospace-grade aluminium hybrid metal matrix composite in a modified stir casting furnace integrated with mechanical supersonic vibration squeeze infiltration method," Mater. Today Commun., vol. 26, no. May 2020, p.101732, 2021.

DOI: 10.1016/j.mtcomm.2020.101732

[3] M. Nagaral, V. Hiremath, V. Auradi, and S. A. Kori, "Influence of Two-Stage Stir Casting Process on Mechanical Characterization and Wear Behavior of AA2014-ZrO2 Nano-composites," Trans. Indian Inst. Met., vol. 71, no. 11, p.2845–2850, 2018.

DOI: 10.1007/s12666-018-1441-6

[4] K. Sekar and P. Vasanthakumar, "Mechanical properties of Al-Cu alloy metal matrix composite reinforced with B4C, Graphite and Wear Rate Modeling by Taguchi Method," Mater. Today Proc., vol. 18, p.3150–3159, 2019.

DOI: 10.1016/j.matpr.2019.07.190

[5] S. Sivakumar, B.R. Golla, and K.V. Rajulapati, "Influence of ZrB 2 hard ceramic reinforcement on mechanical and wear properties of aluminum," Ceram. Int., vol. 45, no. 6, p.7055–7070, 2019.

DOI: 10.1016/j.ceramint.2018.12.208

[6] K. Sekar and P. Vasanthakumar, "Mechanical and tribological properties of Al6063 hybrid composites reinforced with SiC/ZrO2 by stir casting and thixoforming process," Mater. Sci. Forum, vol. 979 MSF, p.47–51, 2020.

DOI: 10.4028/www.scientific.net/msf.979.47

[7] A. Chandrashekar, B. S. Ajaykumar, and H. N. Reddappa, "Mechanical, Structural and Corrosion behaviour of AlMg4.5/Nano Al2O3 Metal Matrix Composites," Mater. Today Proc., vol. 5, no. 1, p.2811–2817, 2018.

DOI: 10.1016/j.matpr.2018.01.069

[8] Sekar. K, Vasanthakumar. P Friction Stir Welding of Al-Cu Alloy Metal Matrix Composites Reinforced with B4C and Graphite Particle Fabricated by Stir Casting and Thixoforming Method, M. S. Shunmugam and M. Kanthababu, "Advances in Additive Manufacturing and Joining," in Editors Proceedings of AIMTDR, 2018.

DOI: 10.1007/978-981-32-9433-2_44

[9] I. B. Singh, D. P. Mandal, M. Singh, and S. Das, "Influence of SiC particles addition on the corrosion behavior of 2014 Al-Cu alloy in 3.5% NaCl solution," Corros. Sci., vol. 51, no. 2, p.234–241, 2009.

DOI: 10.1016/j.corsci.2008.11.001
