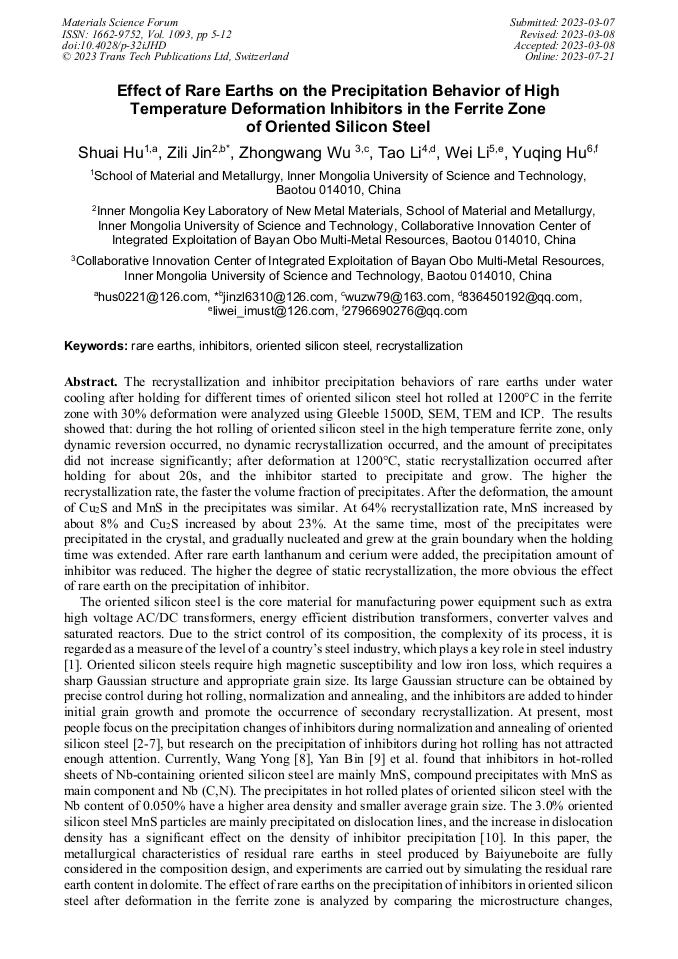

Effect of Rare Earths on the Precipitation Behavior of High Temperature Deformation Inhibitors in the Ferrite Zone of Oriented Silicon Steel

Abstract:

The recrystallization and inhibitor precipitation behaviors of rare earths under water cooling after holding for different times of oriented silicon steel hot rolled at 1200°C in the ferrite zone with 30% deformation were analyzed using Gleeble 1500D, SEM,TEM and ICP. The results showed that: during the hot rolling of oriented silicon steel in the high temperature ferrite zone, only dynamic reversion occurred, no dynamic recrystallization occurred, and the amount of precipitates did not increase significantly; after deformation at 1200°C, static recrystallization occurred after holding for about 20s, and the inhibitor started to precipitate and grow. The higher the recrystallization rate, the faster the volume fraction of precipitates. After the deformation, the amount of Cu₂S and MnS in the precipitates was similar. At 64% recrystallization rate, MnS increased by about 8% and Cu₂S increased by about 23%. At the same time, most of the precipitates were precipitated in the crystal, and gradually nucleated and grew at the grain boundary when the holding time was extended. After rare earth lanthanum and cerium were added, the precipitation amount of inhibitor was reduced. The higher the degree of static recrystallization, the more obvious the effect of rare earth on the precipitation of inhibitor.

• Periodical: Materials Science Forum (Volume 1093)
• Pages: 5-12
• DOI: https://doi.org/10.4028/p-32iJHD
• Online since: July 2023
• Authors: Shuai Hu, Zi Li Jin*, Zhong Wang Wu, Tao Li, Wei Li, Yu Qing Hu
• Keywords: Inhibitors, Oriented Silicon Steel, Rare Earths, Recrystallization

References

[1] Weimin Mao, Ping Yang. Material Science Principles on Electrical Steels[M]. Beijing: Higher Education Press,2013.8.

[2] Wei Guo,Wei-min Mao,Yang Li,Zhiguo An. Influence of intermediate annealing on final Goss texture formation in low temperature reheated Fe-3%Si steel[J]. Materials Science & Engineering A,2011.

DOI: 10.1016/j.msea.2010.10.079

[3] Jong Soo Woo, Chan-Hee Han,Byung-Deug Hong,Jirou Harase. Secondary Recrystallization of the Nitrided Fe–3%Si Alloy[J]. ISIJ International,1998.

DOI: 10.2355/isijinternational.38.1114

[4] Yim Jung Ryoul,Min Ah Ri,Joo Young Chang. Quantitative analysis of the size distributions and elements of the precipitates in Fe-3%Si alloy during secondary recrystallization annealing using HAADF imaging and XEDS[J]. Metals and Materials International,2009.

DOI: 10.1007/s12540-009-0113-9

[5] Ling Chen,Xiang Li,Shengtao QIU, Gan Yong.Effects of Normalizing Annealing on Grain-oriented Silicon Steel[J].Journal of Iron and Steel Research(International),2014.

DOI: 10.1016/s1006-706x(14)60107-2

[6] Chaoping Tang. Study on the distribution of Second-phrase Particles and the Characteristics of Grain Boundaries in Grain-oriented Silicon Steel[D]. Wuhan University of Science and Technology,2018.

[7] Zhichao Li,Ning Dang,Haitao Jiang,Zhenhai Xia. Precipitation and Evolution Behavior of Second Phase Particles in Grain-oriented Silicon Steel with Cu[J]. Journal of Materials Engineering,2017.

[8] Yong Wang. Effect of Nb on Inhibitors Precipitation Microstructure and Texture Evolution of Grain Oriented Silicon Steel Manufactured by Low Temperature Slab Reheating Technology [D]. Wuhan University of Science and Technology,2021.

DOI: 10.3390/cryst11121478

[9] Bin Yan,Chengyi Zhu , Yunxiang Zhang. Effect of Nb on Precipitation Behavior of Inhibitors in Hot Rolled Plate of Oriented Silicon Steel [J]. Hot Working Technoloty,2019.

[10] Weimin Mao, Zhiguo An ,Shuxia Li. Influence of MnS particles on the behaviors of grain boundary migration in Fe-3%Si alloys[J]. Chinese Science Bulletin,2009.

DOI: 10.1007/s11434-009-0607-3

[11] Zhiye Zhao. Theory of plastic deformation and rolling of metals [M]. Beijing: Metallurgical Industry Press,1994.

[12] Na Bo, Wei Wang,Jianjun Cui,Peng Li, etal. Inductively coupled plasma emission spectrometry determination of rhenium in gold element [J/OL]. Precious metals, 2021.

[13] Hongxu Ma, Youguo Li. Measurement of Size Distribution and Volume Fraction of Precipitates in Silicon Steel [J]. Materials Science&Engineering,2002.

[14] Pengyue Gao. Study on precipitation and recrystallization in the hot-rolling process of Rare earth and Niobium microalloyed oriented silicon steel[D]. Inner Mongolia University of Science&Technology,2015.

[15] Jishun Zhang. Research on the Precipitation Behaviors of Inhibitors in Cu-containing Low Temperature Oriented Silicon Steel during Hot Rolling Process [D]. Inner Mongolia University of Science&Technology,2020.

[16] Cheng Huang. Effect of Rare Earth lanthanum on Precipitation Behavior of Inhibitors in Hot Rolling Process of grain-oriented silicon steel [D]. Inner Mongolia University of Science&Technology,2019.
