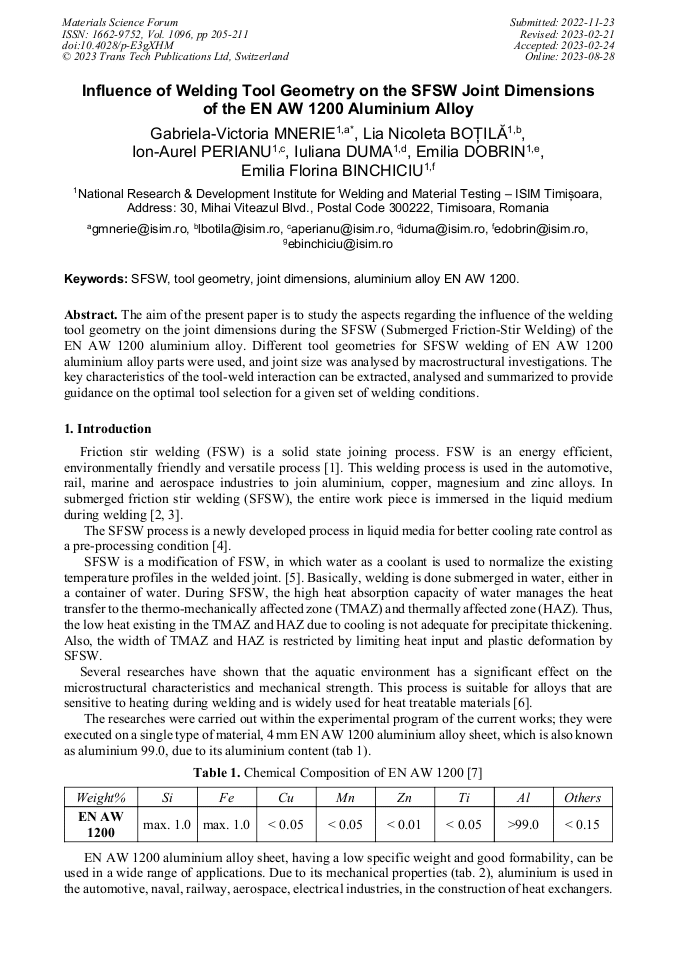

Influence of Welding Tool Geometry on the SFSW Joint Dimensions of the EN AW 1200 Aluminium Alloy

Abstract:

The aim of the present paper is to study the aspects regarding the influence of the welding tool geometry on the joint dimensions during the SFSW (Submerged Friction-Stir Welding) of the EN AW 1200 aluminium alloy. Different tool geometries for SFSW welding of EN AW 1200 aluminium alloy parts were used, and joint size was analysed by macrostructural investigations. The key characteristics of the tool-weld interaction can be extracted, analysed and summarized to provide guidance on the optimal tool selection for a given set of welding conditions.

• Periodical: Materials Science Forum (Volume 1096)
• Pages: 205-211
• DOI: https://doi.org/10.4028/p-E3gXHM
• Online since: August 2023
• Authors: Gabriela-Victoria Mnerie*, Lia-Nicoleta Botila, Ion Aurel Perianu, Iuliana Duma, Emilia Dobrin, Emilia-Florina Binchiciu
• Keywords: Aluminium Alloy EN AW 1200, Joint Dimensions, SFSW, Tool Geometry

References

[1] V.K. Thakur, A.R. Ansari, Study the Effect of Tool Rotation Speed and Welding Speed on Mechanical Properties of Welded Aluminum Alloy (Welding through Friction Stir Process), IJSRD International Journal for Scientific Research & Development| Vol. 5, Issue 09, 2017 | ISSN (online): 2321-0613 (2017) 400-406.

DOI: 10.9756/bijiems.4821

[2] M. Sucharitha, B. R. Sankar, P. Umamaheswarrao, A Review on Submerged Friction Stir Welding of Light Weight Alloys, 2020 IOP Conf. Ser.: Mater. Sci. Eng., 954 0122014 (2020) 1-9.

DOI: 10.1088/1757-899x/954/1/012014

[3] D. Lingaraju and L.R. Salavaravu, A review on underwater friction stir welding modified with normal friction stir welding setup, Int. J. Adv. Res. Sci. Eng., 5(10) (2016) 5-9.

[4] X. Xu, C. Zhang, H. Aghajani Derazkola, M. Demiral, A.M Zain, A. Khan, UFSW tool pin profile effects on properties of aluminium-steel joint, Vacuum, Volume 192, 110460 (2021).

DOI: 10.1016/j.vacuum.2021.110460

[5] M.A. Wahid, Z.A. Khan, A.N. Siddiquee, Review on underwater friction stir welding: A variant of friction stir welding with great potential of improving joint properties, Trans. Nonferrous Met. Soc. China 28 (2018) 193-219.

DOI: 10.1016/s1003-6326(18)64653-9

[6] T. Garg, P. Mathur, V. Singhal, C. Jain, P. Gupta, Underwater Friction Stir Welding: An Overview, International Review of Applied Engineering Research., ISSN 2248-9967 Volume 4, Number 2 (2014) 165-170.

[7] Information on https://metallstore24.de/en/aluminium-3.0205.

[8] Information on http://www.isim.ro/nucleu19-36/19360101/faze_0101.php.

[9] A. Moaref, A. Rabiezadeh, Microstructural evaluation and tribological properties of underwater friction stir processed CP-copper and its alloy, Trans. Nonferrous Met. Soc. China 30 (2020) 972-981.

DOI: 10.1016/s1003-6326(20)65269-4
