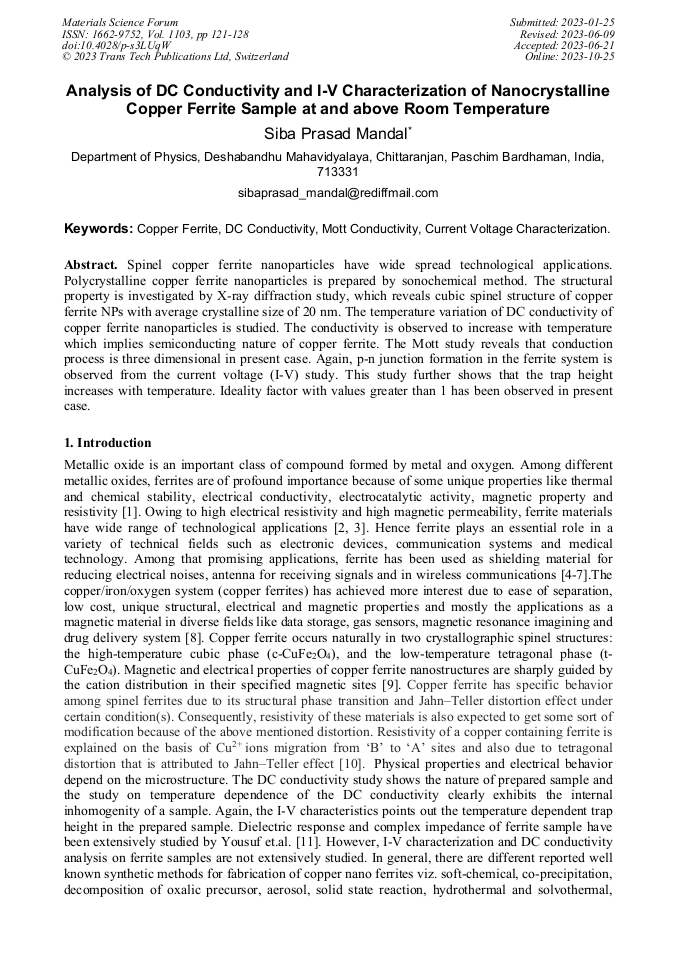

Analysis of DC Conductivity and I-V Characterization of Nanocrystalline Copper Ferrite Sample at and above Room Temperature

Abstract:

Spinel copper ferrite nanoparticles have wide spread technological applications. Polycrystalline copper ferrite nanoparticles is prepared by sonochemical method. The structural property is investigated by X-ray diffraction study, which reveals cubic spinel structure of copper ferrite NPs with average crystalline size of 20 nm. The temperature variation of DC conductivity of copper ferrite nanoparticles is studied. The conductivity is observed to increase with temperature which implies semiconducting nature of copper ferrite. The Mott study reveals that conduction process is three dimensional in present case. Again, p-n junction formation in the ferrite system is observed from the current voltage (I-V) study. This study further shows that the trap height increases with temperature. Ideality factor with values greater than 1 has been observed in present case.

• Periodical: Materials Science Forum (Volume 1103)
• Pages: 121-128
• DOI: https://doi.org/10.4028/p-s3LUqW
• Online since: October 2023
• Authors: Siba Prasad Mandal*
• Keywords: Copper Ferrite, Current Voltage Characterization, Dc Conductivity, Mott Conductivity

References

[1] R.K. Selven C.O. Augustin, L.J. Berchmans, R. Saraswathi, Combustion synthesis of CuFe2O4, Mater.Res.Bull.38(2003) 41-54.

DOI: 10.1016/s0025-5408(02)01004-8

[2] S. Dabagh, A.A. Ati, S.K. Ghoshal, S. Zare, R.M. Rosnan, A.S. Jbara, Z. Othaman, Cu2+ and Al3+ substituted Co ferrite: Structural analysis, morphology and magnetic properties, Bull. Mater. Sci. 39 (2016)1029.

DOI: 10.1007/s12034-016-1233-8

[3] S.Dabagh, K. Chaudhary, Z. Haider, J. Ali, Study of structural phase transformation and hysteresis behavior of inverse-spinel α-ferrite nanoparticles synthesized by co-precipitation method, Results Phys. 8 (2018)93.

DOI: 10.1016/j.rinp.2017.11.033

[4] E.Z. Hegazy, I.H.A. Ei-Maksod, A.M. Ibrahim, S. EI-Sayed EI-Shafay, New insights about the formation of copper ferrite: In situ X-ray diffraction study, Bull. Natl. Res. Cent. 9(2018) 42.

DOI: 10.1186/s42269-018-0010-9

[5] S.Dabagh, A.A. Ati, R.M. Rosnan, S.Zare, Z. Othaman, Effect of Cu-Al substitution on the structural and magnetic properties of Co ferrites, Mater. Sci. in Semicond. Process. 33 (2015) 1-8.

DOI: 10.1016/j.mssp.2015.01.025

[6] D.L. Navgare, V.B. Kawade, U.B. Tumberphale, S.S. Jadhav, R.S. Mane, S.K. Gore, Superparamagnetic cobalt-substituted copper zinc ferrialuminate: Synthesis, morphological, magnetic and dielectric properties investigation. J. Solgel. Sci. Technol. 93 (2020)633.

DOI: 10.1007/s10971-019-05106-z

[7] B.Bhujun, Michelle T.T. Tan, Anandan S. Shanmugam, Evaluation of aluminium doped spinel ferrite electrodes for supercapacitors, Ceram. Int. 42 (2016)6457.

DOI: 10.1016/j.ceramint.2015.12.118

[8] V.K. Surashe, V.Mahale, A.P. Keche, R.C. Alange, P.S. Aghav, R.G. Dorik, Structural and electrical properties of copper ferrite (CuFe2O4) NPs, J. Phys. Conf. Ser. 1644 (2020) 012025.

DOI: 10.1088/1742-6596/1644/1/012025

[9] B. Mondal, M.Kundu, S.P. Mandal, R.Saha, U.K. Roy, A.Roychowdhury, D.Das, Sonochemically synthesized spin canted copper ferrite nanoparticles for heterogeneous green catalytic click chemistry, Acs Omega.4 (2019) 13845-13852.

DOI: 10.1021/acsomega.9b01477

[10] B.V. Rao, P.V.LNarayana A.D.P. Rao, Impact of Mo6+ on resistivity of copper ferrite, J. Mag. Mag. Mater. 431 (2017) 59-61.

[11] M.H. Abdullah, A.N. Yusoff, Complex impedance and dielectric properties of an Mg-Zn ferrite, J.Alloys.Compd. 233 (1996) 129-135.

DOI: 10.1016/0925-8388(96)80044-2

[12] B.J. Sarkar, J. Mandal, M. Dalal, A. Bandyopadhyay, B. Satpati, P.K. Chakrabarti,Room temperature antiferromagnetic ordering in chemically prepared nanocrystalline Co-doped neodymium oxide (Nd1.90Co0.10O3-δ), J. Elec. Mat. 47 (2018) 1768 - 1779.

DOI: 10.1016/j.jallcom.2018.04.080

[13] M.I. Klinger, A.A. Samokhvalov, J. Phys. Status Solid B 79 (1977) 9.

[14] P.P. Hankare, K.R. Sanadi, R.S. Pandav, N.M. Patil, K.M. Garadkar, I.S. Mulla, Structural, electrical and magnetic properties of cadmium substituted copper ferrite by sol-gel method,J.alloys Compd. 540(2012) 290-296.

DOI: 10.1016/j.jallcom.2012.06.018

[15] T. Uma, T. Mahalingam, U. Stimming, Conductivity and thermal studies of solid polymer electrolytes prepared by blending polyvinylchloride, polymethylmethacrylate and lithium sulphate, Mater. Chem. Phys. 85 (2004) 131-136.

DOI: 10.1016/j.matchemphys.2003.12.012

[16] S.M. Sze, Physics of Semiconductor Devices2nd ed. Wiley, New York, 1981.

[17] E. Staryga, G.W. Bak, Relation between physical structure and electrical properties of diamond-like carbon thin films,Diam.Relat. Mater. 14 (2005) 23-34.

DOI: 10.1016/j.diamond.2004.06.030
