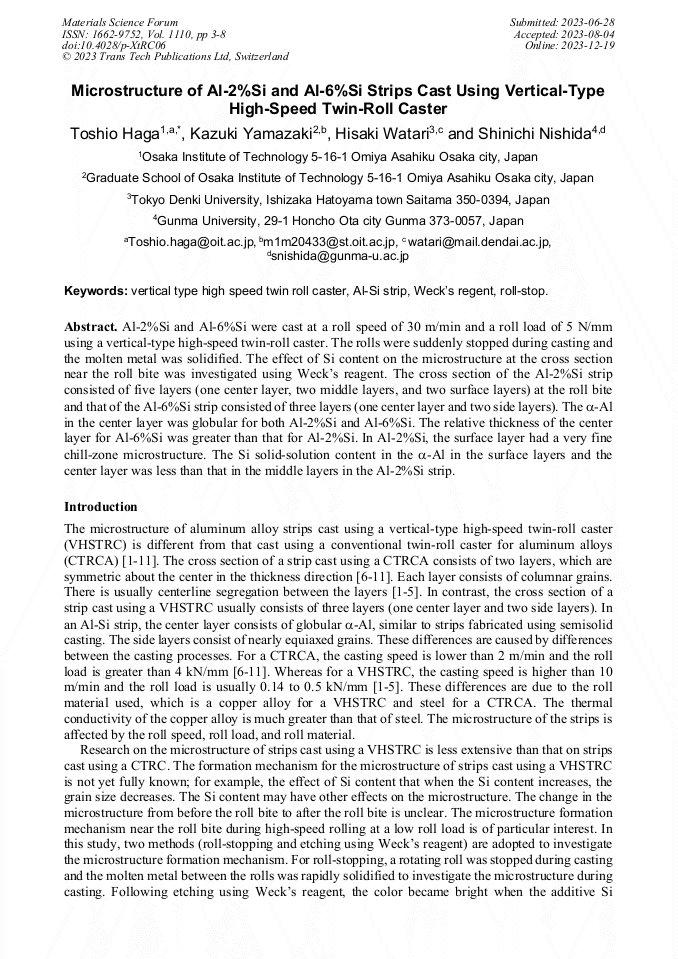

Microstructure of Al-2%Si and Al-6%Si Strips Cast Using Vertical-Type High-Speed Twin-Roll Caster

Abstract:

Al-2%Si and Al-6%Si were cast at a roll speed of 30 m/min and a roll load of 5 N/mm using a vertical-type high-speed twin-roll caster. The rolls were suddenly stopped during casting and the molten metal was solidified. The effect of Si content on the microstructure at the cross section near the roll bite was investigated using Weck’s reagent. The cross section of the Al-2%Si strip consisted of five layers (one center layer, two middle layers, and two surface layers) at the roll bite and that of the Al-6%Si strip consisted of three layers (one center layer and two side layers). The a-Al in the center layer was globular for both Al-2%Si and Al-6%Si. The relative thickness of the center layer for Al-6%Si was greater than that for Al-2%Si. In Al-2%Si, the surface layer had a very fine chill-zone microstructure. The Si solid-solution content in the α-Al in the surface layers and the center layer was less than that in the middle layers in the Al-2%Si strip.

• Periodical: Materials Science Forum (Volume 1110)
• Pages: 3-8
• DOI: https://doi.org/10.4028/p-XtRC06
• Online since: December 2023
• Authors: Toshio Haga*, Kazuki Yamazaki, Hisaki Watari, Shinichi Nishida
• Keywords: Al-Si Strip, Roll-Stop, Vertical Type High Speed Twin Roll Caster, Weck’s Regent

References

[1] T. Haga, K. Takahashi, M. Ikawa: A vertical type twin roll caster for aluminum alloy strip, J. Mater. Process Technol. 140 (2003) 610-615

DOI: 10.1016/s0924-0136(03)00835-5

[2] T. Haga, Development of a twin roll caster for light metals, J. Achiev. Mater. Manuf. Eng. 43(2010) 393-402.

[3] T.Haga, M.Ikawa, H.Watari, K.Suzuki, S.Kumai, High-speed twin roll casting of thin aluminum alloy strips containing Fe impurities, Materials Transactions Vol.46(2005) 2596-2601.

DOI: 10.2320/matertrans.46.2596

[4] K.Suzuki, S.Kumai, Y.Saito, T.Haga, High-speed twin-roll strip casting of Al-Mg-Si alloys with high iron content, Materials Transactions Vol.46(2005)2602-2608.

DOI: 10.2320/matertrans.46.2602

[5] T.Haga, M.Ikawa, H.Watari, K.Suzuki, S.Kumai, 6111 aluminum alloy strip casting using an unequal diameter twin roll caster, Journal of Materials Processing and Technology, Vol.172(2006)271-276.

DOI: 10.1016/j.jmatprotec.2005.10.007

[6] T.Haga，K.Komeda，K.Matsuoka，S.Kumai，H.Watari, Roll casting of recycled AA5182, Applied Mechanics and Materials, Vol.121-126(2012)4667-4670.

DOI: 10.4028/www.scientific.net/amm.121-126.4667

[7] Y. Li, C. He, J. Li, Z. Wang, D. Wu, G. Xu: A novel approach to improve the microstructure and mechanical properties of Al-Mg-Si aluminum alloys during twin-roll casting, Metals 13,1713(2020).

DOI: 10.3390/ma13071713

[8] R. Cook, P. G. Groock, P. M. Thomas, D. V. Edmonds, J. D. Hunt: Development of the twin-roll casting process, J. Mater. Process. Technol. 55(2) (1995) 76-84.

DOI: 10.1016/0924-0136(95)01788-7

[9] S.Hamers, D.Smith, C.Romanowski, G.Yildizbayrak, B.Taraglio, Twin roll casting of aluminum at 2.5mm gauge. Production experience and process improvement, Light Met. (1999)931-937.

[10] P.Y. Menet, R.Cayol, J.Moriceau, Pechiney Jumbo 3CM 'TM' start-up of the Neu-Brisach thin strip caster, Light Met. (1997) 753-756.

[11] O.Daland, A.B. Espedal, M.L. Nedreberg, I.Alvestad, Thin gage twin-roll casting, process capabilities and product quality, Light Met. (1997) 745-752.

DOI: 10.1007/978-3-319-48228-6_125

[12] T.H. Nguyen, R.Song, Y.Harada, S.Kumai: Color Metallography of Characteristic Microstructure in High-Speed Twin-Roll Cast Al-Mn-Si Alloy Strip Using Weck's Reagent, Mater. Trans. 61(2020)2252-2262.

DOI: 10.2320/matertrans.l-m2020856

[13] T.Haga, S.Suzuki: Semisolid strip casting using a twin roll caster equipped with a cooling slope, J. Mater. Process. Technol. 130(2002) 558-561.

DOI: 10.1016/s0924-0136(02)00765-3

[14] T.Haga, S.Suzuki: Casting of aluminum alloy ingot for thixoforming using a cooling slope , J. Mater. Process. Technol. 118(2001) 169-172.

DOI: 10.1016/s0924-0136(01)00888-3

[15] T.Haga, Y.Kurahashi: Casting Process at Roll Bite in Strip Cast Using Vertical-Type High-Speed Twin-Roll Caster. Metals, 12(2022) 1169;.

DOI: 10.3390/met12071169
