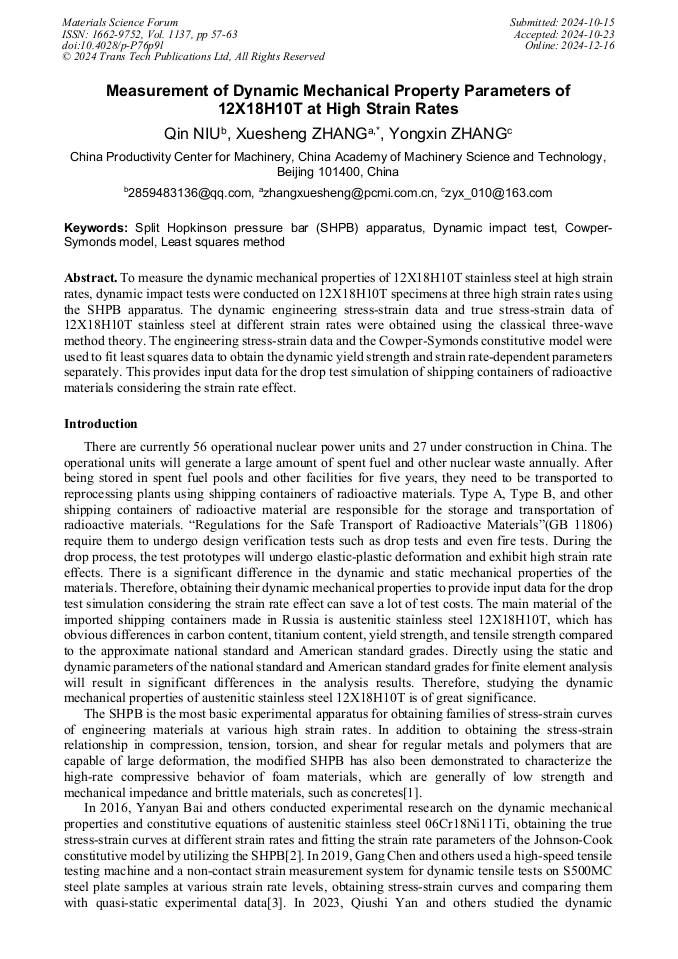

Measurement of Dynamic Mechanical Property Parameters of 12X18H10T at High Strain Rates

Abstract:

To measure the dynamic mechanical properties of 12X18H10T stainless steel at high strain rates, dynamic impact tests were conducted on 12X18H10T specimens at three high strain rates using the SHPB apparatus. The dynamic engineering stress-strain data and true stress-strain data of 12X18H10T stainless steel at different strain rates were obtained using the classical three-wave method theory. The engineering stress-strain data and the Cowper-Symonds constitutive model were used to fit least squares data to obtain the dynamic yield strength and strain rate-dependent parameters separately. This provides input data for the drop test simulation of shipping containers of radioactive materials considering the strain rate effect.

You might also be interested in these eBooks

9th International Seminar on Advances in Materials Science and Engineering (ISAMSE)

View Preview

Advanced Materials and Materials for Membrane Production

View Preview

Info:

Periodical:

Materials Science Forum (Volume 1137)

Pages:

57-63

DOI:

https://doi.org/10.4028/p-P76p9l

Citation:

Cite this paper

Online since:

December 2024

Authors:

Qin Niu, Xue Sheng Zhang*, Yong Xin Zhang

Keywords:

Cowper-Symonds Model, Dynamic Impact Test, Least Squares Method, Split Hopkinson Pressure Bar (SHPB) Apparatus

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Shisheng HU. The Application Development of Experimental Techniques of Hopkinson Pressure BarHopkinson[J]. Journal of Experimental Mechanics, 20(4), 2005, 589-594.

Google Scholar

[2] Yanyan Bai. The Establishment of Constitutive Model for 06Cr18Ni11Ti and Experimental Study on Its Slender Deep Slot Slow Grinding [D]. Taiyuan University of Technology, 2016, pp.41-46.

Google Scholar

[3] Gang Chen, Qingquan Wang, Hongjun Du. Experimental Study on Dynamic Mechanical Properties of S500MC Steel [J]. Railway Technology Supervision, 2019, 47(05), 27-30.

Google Scholar

[4] Qiushi Yan, Pengcheng Ren, Dongdong Zhao, et al. Study on Dynamic Mechanical Properties and Tensile-Compression Asymmetry of S30408 Stainless Steel at High Strain Rates [J/OL]. Engineering Mechanics, 2024, 1-8.

Google Scholar

[5] Yangxuan Zhu, Chunwang He, Tian Zhao, et al. FCA-based efficient prediction of effective properties for 3D braided composites considering the effect of strain rate[J]. Composite Structures, 2024, 343.

DOI: 10.1016/j.compstruct.2024.118232

Google Scholar

[6] Lokman I. ,Tugrul O. T. ,Senol A. , et al. Effects of Strain Rate and Size on Concrete under Shear Using Push-Off Tests[J].Journal of Materials in Civil Engineering, 2023, 35(7)

Google Scholar

[7] I. O D, A. T K . Strain Rate Effect on Dislocation Structure in Dispersion-Hardened Alloy with Incoherent Nanoparticles [J]. Russian Physics Journal, 2023, 65(8) :1358-1365.

DOI: 10.1007/s11182-023-02774-x

Google Scholar

[8] Fatih B, K. T D, A. E D, et al. Strain rate effect on the tensile properties of plain weave aramid, carbon, and glass fabric reinforced monolithic and hybrid composites [J]. International Journal of Materials Research, 2022, 113(6):587-598

DOI: 10.1515/ijmr-2021-8386

Google Scholar

[9] Zhang Jilin, Luo Wenqiu, Jia Haishen, et al. Research on the Johnson-Cook Constitutive Model of 06Cr19Ni10 Austenitic Stainless Steel at High Strain Rates [J]. Iron and Titanium, 2022, 43(04): 158-166.

Google Scholar

[10] ПНАГ-7-002-86(E), Code for Strength Calculation of Equipment and Pipelines in Nuclear Power Plants [S]. 1989, pp.90-95.

Google Scholar

[11] GOST 5632-1997. High-Alloy Steels and Corrosion-Proof, Heat-Resisting and High-Temperature Alloys [S]. 1997, pp.14-20.

Google Scholar
