Process-Induced Deformations on Composite L-Shaped Part: Numerical Prediction and Compensated Mould Design

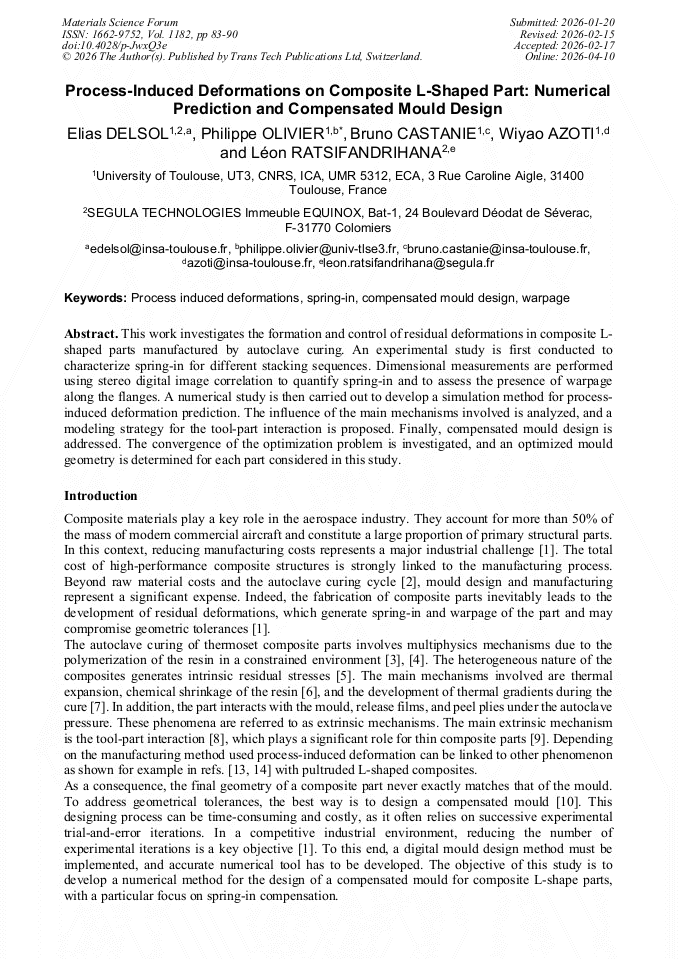

Article Preview
View Pdf Read Epub By email

Abstract:

This work investigates the formation and control of residual deformations in composite L-shaped parts manufactured by autoclave curing. An experimental study is first conducted to characterize spring-in for different stacking sequences. Dimensional measurements are performed using stereo digital image correlation to quantify spring-in and to assess the presence of warpage along the flanges. A numerical study is then carried out to develop a simulation method for process-induced deformation prediction. The influence of the main mechanisms involved is analyzed, and a modeling strategy for the tool-part interaction is proposed. Finally, compensated mould design is addressed. The convergence of the optimization problem is investigated, and an optimized mold geometry is determined for each part considered in this study.
