Relating the Cold Rolling Pass Reduction to the Microstructural Evolution and Formability in DP800 Steel

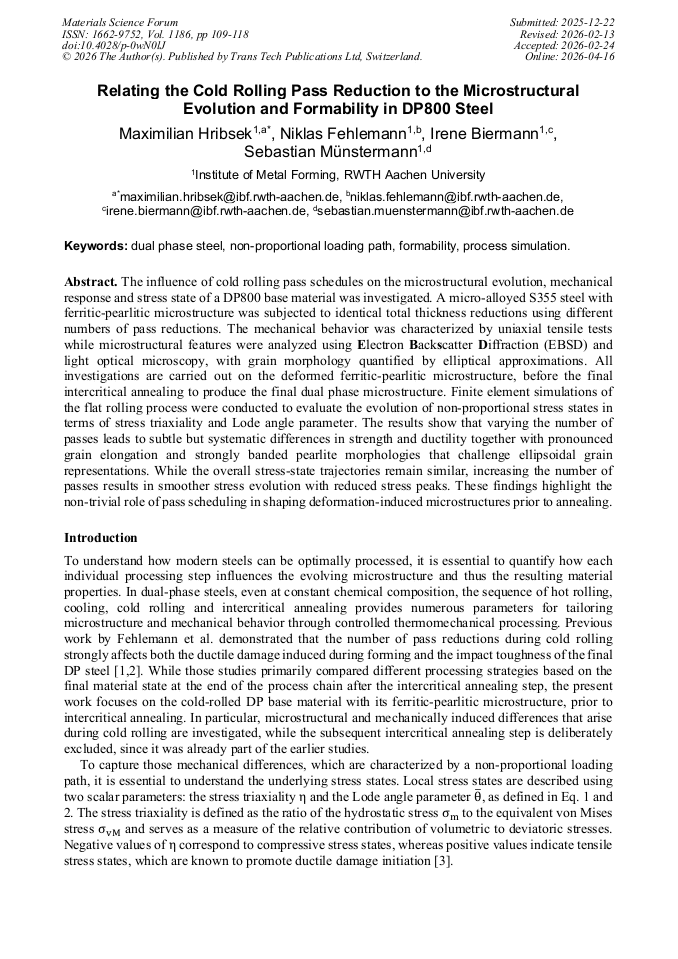

Article Preview

View Pdf By email

Abstract:

The influence of cold rolling pass schedules on the microstructural evolution, mechanical response and stress state of a DP800 base material was investigated. A micro-alloyed S355 steel with ferritic-pearlitic microstructure was subjected to identical total thickness reductions using different numbers of pass reductions. The mechanical behavior was characterized by uniaxial tensile tests while microstructural features were analyzed using electron backscatter diffraction and light optical microscopy, with grain morphology quantified by elliptical approximations. All investigations are carried out on the deformed ferritic – pearlitic microstructure, before the final intercritical annealing to produce the final dual phase microstructure. Finite element simulations of the flat rolling process were conducted to evaluate the evolution of non-proportional stress states in terms of stress triaxiality and Lode angle parameter. The results show that varying the number of passes leads to subtle but systematic differences in strength and ductility together with pronounced grain elongation and strongly banded pearlite morphologies that challenge ellipsoidal grain representations. While the overall stress-state trajectories remain similar, increasing the number of passes results in smoother stress evolution with reduced stress peaks. These findings highlight the non-trivial role of pass scheduling in shaping deformation-induced microstructures prior to annealing.

You have full access to the following eBook

Forging and Hot Forming

Info:

Periodical:

Materials Science Forum (Volume 1186)

Pages:

109-118

DOI:

https://doi.org/10.4028/p-0wN0lJ

Citation:

Cite this paper

Online since:

April 2026

Authors:

Maximilian Hribsek*, Niklas Fehlemann, Irene Biermann, Sebastian Münstermann

Keywords:

Dual Phase Steel, Formability, Non-Proportional Loading Path, Process Simulation

Funder:

The publication of this article was funded by the RWTH Aachen University 10.13039/501100007210

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

[1] FEHLEMANN, Niklas. (2025). Process – structure – property relations in DP800 investigated using representative volume elements. 995-1004.

DOI: 10.21741/9781644903599-107

[2] FEHLEMANN, N. et al. Investigation of Damage-Controlling Process-Parameters During Cold Rolling on the Impact Toughness of DP800 Steel Under Crash Loading Stress States. Proceedings of the 14th International Conference on the Technology of Plasticity - Current Trends in the Technology of Plasticity. Cham: Springer Nature Switzerland, 2024.

DOI: 10.1007/978-3-031-42093-1_23

[3] BAI, Y., T. WIERZBICKI. A new model of metal plasticity and fracture with pressure and Lode dependence. International Journal of Plasticity. 2008-06, 24, p.1071–1096. Available from.

DOI: 10.1016/j.ijplas.2007.09.004

[4] GAO, X.; G. ZHANG, C. ROE. A Study on the Effect of the Stress State on Ductile Fracture. International Journal of Damage Mechanics. 2010, 19(1), p.75–94. Available from.

DOI: 10.1177/1056789509101917

[5] Sai Rajeshwari Kondavalasa, Aditya Prakash, Rohit Jagtap, Sankaran Shanmugam, I. Samajdar, Vijay K. Vasudevan, Gerhard Wilde, On the comparison of graded microstructures developed through High Reduction (per pass) Cold Rolling (HRCR) and Ultrasonic Nanocrystal Surface Modification (UNSM) in nickel-base Alloy 602CA, Materials Characterization, Volume 153, 2019, Pages 328-338, ISSN 1044-5803.

DOI: 10.1016/j.matchar.2019.05.021

[6] JIN, S.; H. ZEDONG, L. YUAN. Software implementation of corn grain morphology detection based on OpenCV. In: 2017 13th IEEE International Conference on Electronic Measurement and Instruments (ICEMI). 2017, p.412–415. Available from.

DOI: 10.1109/ICEMI.2017.8265837

[7] Wang, Shuhan & Dunlap, Anthony & Möhring, Kerstin & Lohmar, Johannes & Schwedt, Alexander & Aretz, A. & Walther, Frank & Hirt, Gerhard. (2020). Torsion plastometer trials to investigate the effect of non-proportional loading paths in caliber rolling on damage and performance of metal parts. Production Engineering. 14.

DOI: 10.1007/s11740-019-00949-5

[8] Mahmoudi, Kasra & Haji Aboutalebi, Farhad & Sadeghi Nezhad, Soheil. (2025). Proposing a new 2D Bai-Wierzbicki (BW) ductile damage model for sheet metal forming processes. The International Journal of Advanced Manufacturing Technology. 1-15.

DOI: 10.1007/s00170-025-17042-0

[9] Kevarajan, Karthiga & Marimuthu, Prakash & Ramesh, A.. (2012). FEM analysis of effect of rolling parameters on cold rolling process. Bonfring Int J Ind Eng Manag Sci. 2. 35-40.

DOI: 10.9756/bijiems.1022

[10] Graça, Ana & Vincze, Gabriela. (2021). A Short Review on the Finite Element Method for Asymmetric Rolling Processes. Metals. 11. 762.

DOI: 10.3390/met11050762

[11] Tonini Button, S. (2013). Tribology in metal forming processes. In J. P. Davim (Ed.), Tribology in manufacturing technology (p.103–120). Springer Berlin Heidelberg.

DOI: 10.1007/978-3-642-31683-8_3

[12] Wei, Zhang & Wen, Jian-Feng & Zhang, Xian-Cheng & Tu, Shan-Tung. (2019). Effects of the stress state on plastic deformation and ductile failure: Experiment and numerical simulation using a newly designed tension‐shear specimen. Fatigue & Fracture of Engineering Materials & Structures. 42. 2079-2092.

DOI: 10.1111/ffe.13084

[13] Flanagan, Francis & O'Connor, Alison & Erfanian, Mozhdeh & Music, Omer & Brambley, Edward & O'Kiely, Doireann. (2024). Careful finite element simulations of cold rolling with accurate through-thickness resolution and prediction of residual stress.

DOI: 10.2139/ssrn.4993253

[14] Bessa, M. & Elkhodary, K. & Liu, Wing & Belytschko, Ted & Moran, Brian. (2013). Nonlinear Finite Elements for Continua and Structures, Second Edition. Solution Manual.

[15] Zienkiewicz OC, Taylor RL, Zhu JZ. The finite element method: Its basis and fundamentals. 7th ed. Oxford: Butterworth-Heinemann; 2013.

[16] Roters, F., Eisenlohr, P., Bieler, T. R., & Raabe, D. (2010). Crystal plasticity finite element methods: Fundamentals and applications. Acta Materialia, 58(4), 1152–1211.

DOI: 10.1016/j.actamat.2009.10.058

[17] M. Henrich, N. Fehlemann, F. Bexter, M. Neite, L. Kong, F. Shen, M. Könemann, M. Dölz, and S. Münstermann, DRAGen - A deep learning supported RVE generator framework for complex microstructure models. Heliyon, 8 (2023) e19003. DOI: 10.1016/j.heliyon. 2023.e19003.

DOI: 10.1016/j.heliyon.2023.e19003

[18] Seibert, Paul & Raßloff, Alexander & Kalina, Karl Alexander & Ambati, Marreddy & Kästner, Markus. (2022). Microstructure Characterization and Reconstruction in Python: MCRpy. Integrating Materials and Manufacturing Innovation. 11. 1-17.

DOI: 10.1007/s40192-022-00273-4
