Profile Contour and Flatness Control Model for Hot Strip Rolling

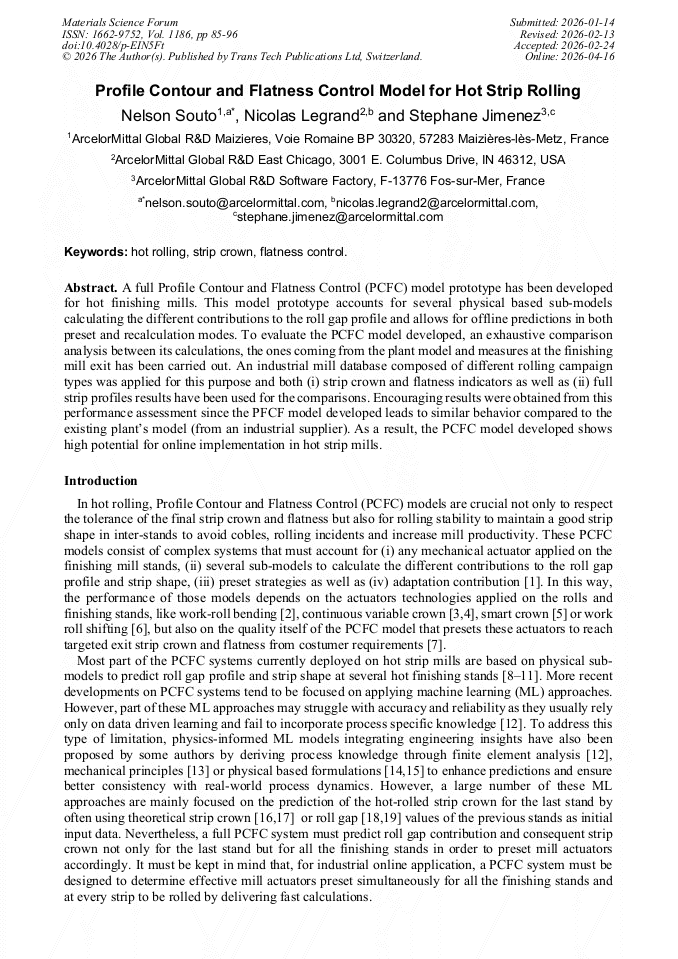

Article Preview
View Pdf By email

Abstract:

A full Profile Contour and Flatness Control (PCFC) model prototype has been developed for hot finishing mills. This model prototype accounts for several physical based sub-models calculating the different contributions to the roll gap profile and allows for offline predictions in both preset and recalculation modes. To evaluate the PCFC model developed, an exhaustive comparison analysis between its calculations, the ones coming from the plant model and measures at the finishing mill exit has been carried out. An industrial mill database composed of different rolling campaign types was applied for this purpose and both (i) strip crown and flatness indicators as well as (ii) full strip profiles results have been used for the comparisons. Encouraging results were obtained from this performance assessment since the PFCF model developed leads to similar behavior compared to the existing plant’s model (from an industrial supplier). As a result, the PCFC model developed shows high potential for online implementation in hot strip mills.
