Design and Characterization of High Entropy Alloy W₂₄Ta₂₄Nb₂₄Cr₁₆Al₁₂

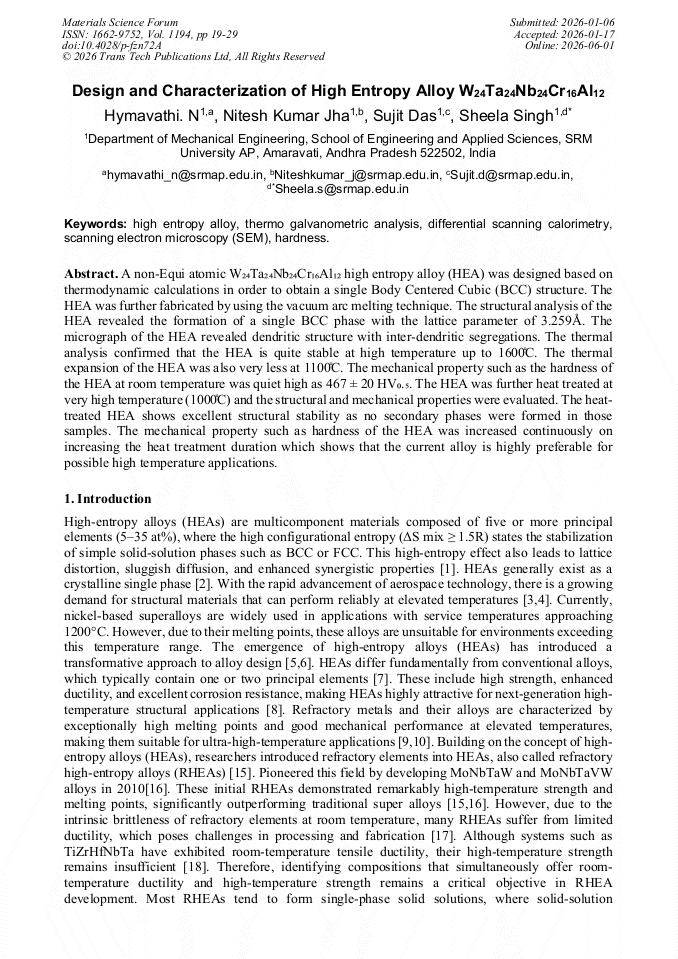

Article Preview

Abstract:

A non-Equi atomic W₂₄Ta₂₄Nb₂₄Cr₁₆Al₁₂ high entropy alloy (HEA) was designed based on thermodynamic calculations in order to obtain a single body-centered cubic (BCC) structure. The HEA was further fabricated by using the vacuum arc melting technique. The structural analysis of the HEA revealed the formation of a single BCC phase with the lattice parameter of 3.259Å. The micrograph of the HEA revealed dendritic structure with inter-dendritic segregations. The thermal analysis confirmed that the HEA is quite stable at high temperatures up to 1600°C. The thermal expansion of the HEA was also very low at 1100°C. The mechanical property such as the hardness of the HEA at room temperature, was quite high at 467 ± 20 HV₀.₅. The HEA was further heat treated at a very high temperature (1000°C) and the structural and mechanical properties were evaluated. The heat-treated HEA shows excellent structural stability as no secondary phases were formed in those samples. The mechanical property such as hardness of the HEA was increased continuously on increasing the heat treatment duration, which shows that the current alloy is highly preferable for possible high-temperature applications.

You might also be interested in these eBooks
Alloys, Composites, Materials for Catalysis and Energy Conversion and Advanced Materials View Preview

Info:

Periodical:

Materials Science Forum (Volume 1194)

Pages:

19-29

DOI:

https://doi.org/10.4028/p-fzn72A

Citation:

Cite this paper

Online since:

June 2026

Authors:

N. Hymavathi*, Nitesh Kumar Jha, Sujit Das, Sheela Singh

Keywords:

Differential Scanning Calorimetry, Hardness, High Entropy Alloy, Scanning Electron Microscopy (SEM), Thermo Galvanometric Analysis

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2026 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] YEH J W, LIN S J, CHIN T S, GAN J Y, CHEN S K, SHUN T T, TSAU C H, CHOU SY. Formation of simple crystal structures in Cu−Co−Ni−Cr−Al−Fe−Ti−V alloys with multiprincipal metallic elements [J]. Metallurgical and Materials Transactions A, 2004 35: 2533−2536.

DOI: 10.1007/s11661-006-0234-4

Google Scholar

[2] CANTOR B, CHANG I T H, KNIGHT P, VINCENT A J B. Microstructural development in equiatomic multicomponent alloys [J]. Materials Science and Engineering A, 2004, 375/376/377: 213−218.

DOI: 10.1016/j.msea.2003.10.257

Google Scholar

[3] GAN Meng-di, CHONG Xiao-yu, JING Feng. Research status and prospects of aerospace high-temperature structural materials [J]. Journal of Kunming University of Science and Technology (Natural Sciences), 2021, 6(46): 24−36. (in Chinese).

Google Scholar

[4] HUDA Z, EDI P. Materials selection in design of structures and engines of supersonic aircraft: A review [J]. Materials & Design, 2013, 46: 552−560.

DOI: 10.1016/j.matdes.2012.10.001

Google Scholar

[5] REN Ming-xing, LI Bang-sheng, FU Heng-zhi. Formation condition of solid solution-type high-entropy alloy [J]. Transactions of Nonferrous Metals Society of China, 2013, 23(4): 991−995.

DOI: 10.1016/s1003-6326(13)62557-1

Google Scholar

[6] LILENSTEN L, COUZINIÉ J P, BOURGON J, PERRIÈRE L, DIRRAS G, PRIMA F, GUILLOT I. Design and tensile properties of a bcc Ti-rich high-entropy alloy with transformation-induced plasticity [J]. Materials Research Letters, 2017, 5(2): 110−116.

DOI: 10.1080/21663831.2016.1221861

Google Scholar

[7] HE Zhu-feng, JIA Nan, YAN Hai-le, SHEN Yong-feng, ZHU Ming-wei, GUAN Xian-jun, ZHAO Xiao-li, JIN Shen-bao, SHA Gang, ZHU Yun-tian, LIU C T. Multi-heterostructure and mechanical properties of N-doped FeMnCoCr high entropy alloy [J]. International Journal of Plasticity, 2021, 139: 102965.

DOI: 10.1016/j.ijplas.2021.102965

Google Scholar

[8] SONG Min, ZHOU Rui, GU Ji, WANG Zhang-wei, NI Song, LIU Yong. Nitrogen-induced heterogeneous structures overcome the strength-ductility trade-off in an additively manufactured high-entropy alloy [J]. Applied Materials Today, 2020, 18: 100498.

DOI: 10.1016/j.apmt.2019.100498

Google Scholar

[9] HE Feng, WANG Zhi-jun, WU Qing-feng, CHEN Da, YANG Tao, LI Jun-jie, WANG Jin-cheng, LIU C T, KAI Ji-jung. Tuning the defects in face-centered cubic high entropy alloy via temperature-dependent stacking fault energy [J]. Scripta Materialia, 2018, 155: 134−138.

DOI: 10.1016/j.scriptamat.2018.06.002

Google Scholar

[10] GAN Meng-di, CHONG Xiao-yu, JING Feng. Research status and prospects of aerospace high-temperature structural materials [J]. Journal of Kunming University of Science and Technology (Natural Sciences), 2021, 6(46): 24−36. (in Chinese).

Google Scholar

[11] SHAHMIR H, ASGHARI-RAD P, MEHRANPOUR M S, FORGHANI F, KIM H S, NILI-AHMADABADI M. Evidence of FCC to HCP and BCC-martensitic transformations in a CoCrFeNiMn high-entropy alloy by severe plastic deformation [J]. Materials Science and Engineering A, 2021, 807: 140875.

DOI: 10.1016/j.msea.2021.140875

Google Scholar

[12] GAN Guo-yong, MA Li, LUO Dong-ming, JIANG Shan, TANG Bi-yu. Influence of Al substitution for Sc on thermodynamic properties of HCP high entropy alloy Hf0.25Ti0.25Zr0.25Sc0.25−xAlx from first-principles investigation [J]. Physica B: Condensed Matter, 2020, 593: 412272.

DOI: 10.1016/j.physb.2020.412272

Google Scholar

[13] SENKOV O N, GORSSE S, MIRACLE D B. High temperature strength of refractory complex concentrated alloys [J]. Acta Materialia, 2019, 175: 394−405.

DOI: 10.1016/j.actamat.2019.06.032

Google Scholar

[14] SENKOV O N, WILKS G B, MIRACLE D B, CHUANG C P, LIAW P K. Refractory high-entropy alloys [J]. Intermetallics, 2010, 18(9): 1758−1765.

DOI: 10.1016/j.intermet.2010.05.014

Google Scholar

[15] SENKOV O N, WOODWARD C F. Microstructure and properties of a refractory NbCrMo0.5Ta0.5TiZr alloy [J]. Materials Science and Engineering A, 2011, 529: 311−320.

DOI: 10.1016/j.msea.2011.09.033

Google Scholar

[16] SENKOV O N, SCOTT J M, SENKOVA S V, MIRACLE D B, WOODWARD C F. Microstructure and room temperature properties of a high-entropy TaNbHfZrTi alloy [J]. Journal of Alloys and Compounds, 2011, 509(20): 6043−6048.

DOI: 10.1016/j.jallcom.2011.02.171

Google Scholar

[17] SENKOV O N, SCOTT J M, SENKOVA S V., MEISENKOTHEN F, MIRACLE D B, WOODWARD C F. Microstructure and elevated temperature properties of a refractory TaNbHfZrTi alloy [J]. Journal of Materials Science, 2012, 47(9): 4062−4074.

DOI: 10.1007/s10853-012-6260-2

Google Scholar

[18] SENKOV O N, SENKOVA S V., MIRACLE D B, WOODWARD C. Mechanical properties of low-density, refractory multi-principal element alloys of the Cr−Nb− Ti−V−Zr system [J]. Materials Science and Engineering A, 2013, 565: 51−62.

DOI: 10.1016/j.msea.2012.12.018

Google Scholar

[19] Bellamkonda, K.S., Chakradhar, R.P.S., Jadhav, P., Srivastava, M. and Singh, S., 2025. Studies on Y2O3-dispersed Co1. 7Cr0. 4Ni2. 5Al2. 4Nb0. 23 high entropy alloy coated with HVOF for bond coat application in TBC system. Metallurgical Research & Technology, 122(3), p.304.

DOI: 10.1051/metal/2025012

Google Scholar

[20] SENKOV O N, WOODWARD C, MIRACLE D B. Microstructure and properties of aluminum-containing refractory high-entropy alloys [J]. JOM, 2014, 66(10): 2030−2042.

DOI: 10.1007/s11837-014-1066-0

Google Scholar

[21] LEY N.A, SEGOVIA S, GORSSE S, YOUNG M L. Characterization and modeling of NbNiTaTiW and NbNiTaTiW−Al refractory high-entropy alloys [J]. Metallurgical and Materials Transactions A, 2019, 50(10): 4867−4876.

DOI: 10.1007/s11661-019-05384-w

Google Scholar

[22] LIU Yuan, ZHANG Yan, ZHANG Heng, WANG Nai-juan, CHEN Xiang, ZHANG Hua-wei, LI Yan-xiang. Microstructure and mechanical properties of refractory HfMo0.5NbTiV0.5Six high-entropy composites [J]. Journal of Alloys and Compounds, 2017, 694: 869−876.

DOI: 10.1016/j.jallcom.2016.10.014

Google Scholar

[23] MING Kai-sheng, BI Xiao-fang, WANG Jian. Realizing the strength-ductility combination of coarse-grained Al0.2Co1.5CrFeNi1.5Ti0.3 alloy via nano-sized, coherent precipitates [J]. International Journal of Plasticity, 2018, 100: 177−191.

DOI: 10.1016/j.ijplas.2017.10.005

Google Scholar

[24] YANG Cheng, AOYAGI K, BIAN Hua-kang, CHIBA A. Microstructure evolution and mechanical property of a precipitation-strengthened refractory high-entropy alloy HfNbTaTiZr [J]. Materials Letters, 2019, 254: 46−49.

DOI: 10.1016/j.matlet.2019.07.027

Google Scholar

[25] Xiao, B., Yang, G., Wei, M. and Wang, J., 2025. Microstructure and mechanical behaviors of the laser powder-bed fused WMoTaNbV refractory high-entropy alloy. Journal of Alloys and Compounds, 1038, p.182731.

DOI: 10.1016/j.jallcom.2025.182731

Google Scholar

[26] Chanho Lee, Dongyue Xie, Juntan Li et al. Dynamic Deformation Behaviors in Single Body-Centered-Cubic (BCC) phase Refractory High-entropy Alloys, 07 November 2023, PREPRINT (Version 1) available at Research Square.

DOI: 10.21203/rs.3.rs-3471175/v1

Google Scholar

[27] Yonggang Yan, Kade A. McGarrity, Daniel J. Delia, Curtis Fekety, Kun Wang, The oxidation-resistance mechanism of WTaNbTiAl refractory high entropy alloy, Corrosion Science, Volume 204, 2022, 110377, ISSN 0010-938X.

DOI: 10.1016/j.corsci.2022.110377

Google Scholar

[28] Sujit Das, P.S Robi, A novel refractory WMoVCrTa high-entropy alloy possessing fine combination of compressive stress-strain and high hardness properties, Advanced Powder Technology, Volume31, Issue12,2020, Pages46194631, ISSN09218831.ISSN0921883.

DOI: 10.1016/j.apt.2020.10.008

Google Scholar

[29] Jadhav, M.S., Sahane, D., Verma, A. and Singh, S., 2021. Thermal stability and thermal expansion behavior of FeCoCrNi2Al high entropy alloy. Advanced Powder Technology, 32(2), pp.378-384.

DOI: 10.1016/j.apt.2020.12.019

Google Scholar

[30] Das, S., Nishad, S.K. and Robi, P.S., 2021. A new high‐entropy alloy of Al–Fe–Co–Ni–Cu possessing single face‐centered cubic crystal structure and excellent mechanical properties at room temperature. physica status solidi (a), 218(8), p.2000825.

DOI: 10.1002/pssa.202000825

Google Scholar

[31] Yan, Y., McGarrity, K.A., Delia, D.J., Fekety, C. and Wang, K., 2022. The oxidation-resistance mechanism of WTaNbTiAl refractory high entropy alloy. Corrosion Science, 204, p.110377.

DOI: 10.1016/j.corsci.2022.110377

Google Scholar

[32] Bamisaye, O.S., Maledi, N., Klenam, D. and Bodunrin, M.O., 2025. High-temperature oxidation of TiNbTaVW RHEA: Oxide layer formation under parabolic behaviour. International Journal of Refractory Metals and Hard Materials, 130, p.107185.

DOI: 10.1016/j.ijrmhm.2025.107185

Google Scholar

[33] B. Völker, V. Maier-Kiener, K. Werbach, T. Müller, S. Pilz, M. Calin, J. Eckert, A. Hohenwarter, Influence of annealing on microstructure and mechanical properties of ultrafine-grained Ti45Nb, Materials & Design, Volume 179,2019,107864, ISSN 0264-1275.

DOI: 10.1016/j.matdes.2019.107864

Google Scholar

[34] Seçil Sevim Ünlütürk & Necati Güdümcüoğlu. (2024) Curing Kinetic Analysis and Isothermal Prediction of DBTL Catalyzed Polyurethane Reaction by Differential Scanning Calorimetry. Journal of the Turkish Chemical Society Section A: Chemistry 11:3, pages 1211-1226.

DOI: 10.18596/jotcsa.1441231

Google Scholar
