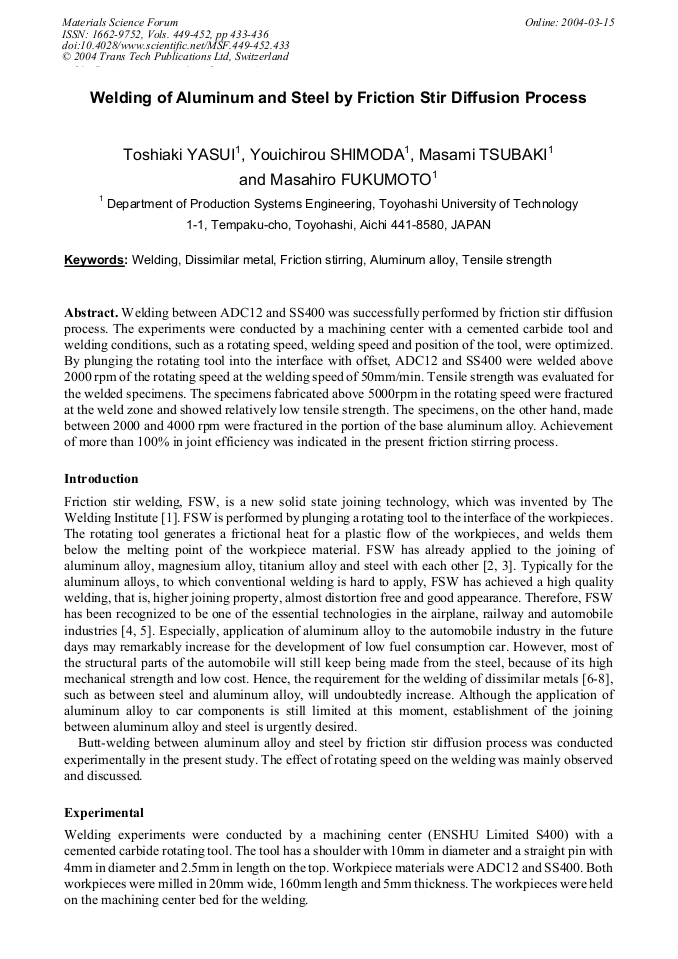

Welding of Aluminum and Steel by Friction Stir Diffusion Process

Abstract:

Welding between ADC12 and SS400 was successfully performed by friction stir diffusion process. The experiments were conducted by a machining center with a cemented carbide tool and welding conditions, such as a rotating speed, welding speed and position of the tool, were optimized. By plunging the rotating tool into the interface with offset, ADC12 and SS400 were welded above 2000 rpm of the rotating speed at the welding speed of 50mm/min. Tensile strength was evaluated for the welded specimens. The specimens fabricated above 5000rpm in the rotating speed were fractured at the weld zone and showed relatively low tensile strength. The specimens, on the other hand, made between 2000 and 4000 rpm were fractured in the portion of the base aluminum alloy. Achievement of more than 100% in joint efficiency was indicated in the present friction stirring process.

• Periodical: Materials Science Forum (Volumes 449-452)
• Pages: 433-436
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.449-452.433
• Online since: March 2004
• Authors: Toshiaki Yasui, Youichirou Shimoda, Masami Tsubaki, Masahiro Fukumoto
• Keywords: Aluminium Alloy, Dissimilar Metal, Friction Stirring, Tensile Strength, Welding

References

[1] W. M. Thomas, International Patent Application No. PCT/GB92 No. 9125978. 8 (1991).

[2] C. J. Dawes et al., Welding J., 75-3 (1996) 41-45.

[3] A. Kluken and M. Ranes, Svetsaren, 50-3 (1995) 13-15.

[4] M. R. Johnsen, Welding J. 78-2 (1999) 35-39.

[5] M. W. Mahoney, Welding & Joining, 1/2 (1997) 18-19.

[6] H. Okamura, K. Aota and Y. Aono, Preprints of The National Meeting of J.W.S., 71 (2002) 442-443.

[7] W. M. Thomas, P. L. Threadgill and E. D. Nicholas, Science and Technology of Welding and Joining, 4-5 (1999) 365-372.

[8] T. Watanabe, A. Yanagisawa and H. Takayama, Preprints of The National Meeting of J.W.S., 71 (2002) 446-447.

[9] C. D. Sorensen, T. W. Nelson and S. M. Packer, 3rd Int. Symp. on FSW, Kobe, Japan (2001).

[10] M. Fukumoto, M. Tsubaki, Y. Shimoda and T. Yasui, under submission to Quarterly J. of JWS (2003).

[20] [40] [60] [80] 100 120 140 160 2000 3000 4000 5000 6000 Tensile strength(Mpa) Rotating speed(rpm) in ADC12 at interface Tensile strength of ADC12.

[20] [40] [60] [80] 100 120 140 160 2000 3000 4000 5000 6000 Tensile strength(Mpa) Rotating speed(rpm) in ADC12 at interface Tensile strength of ADC12 Fig. 6 Relation between tensile strength and rotating speed.

[20] [40] [60] [80] 100 120 140 160 2000 3000 4000 5000 6000 Tensile strength(Mpa) Rotating speed(rpm) in ADC12 at interface Tensile strength of ADC12.

[20] [40] [60] [80] 100 120 140 160 2000 3000 4000 5000 6000 Tensile strength(Mpa) Rotating speed(rpm) in ADC12 at interface Tensile strength of ADC12 Fig. 6 Relation between tensile strength and rotating speed.
