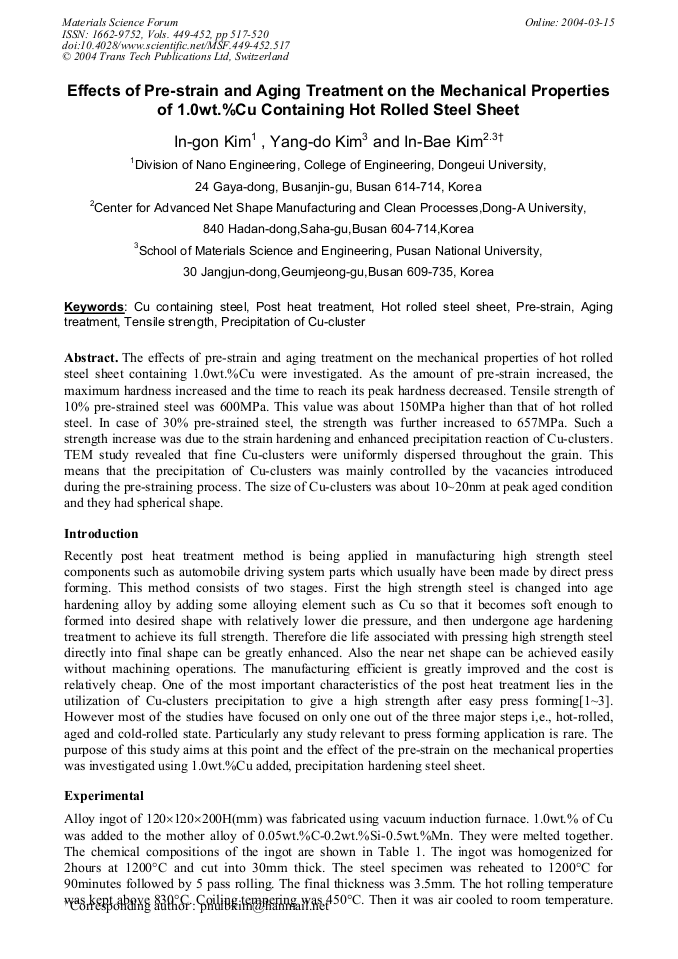

Effects of Pre-Strain and Aging Treatment on the Mechanical Properties of 1.0wt.%Cu Containing Hot Rolled Steel Sheet

Abstract:

The effects of pre-strain and aging treatment on the mechanical properties of hot rolled steel sheet containing 1.0wt.%Cu were investigated. As the amount of pre-strain increased, the maximum hardness increased and the time to reach its peak hardness decreased. Tensile strength of 10% pre-strained steel was 600MPa. This value was about 150MPa higher than that of hot rolled steel. In case of 30% pre-strained steel, the strength was further increased to 657MPa. Such a strength increase was due to the strain hardening and enhanced precipitation reaction of Cu-clusters. TEM study revealed that fine Cu-clusters were uniformly dispersed throughout the grain. This means that the precipitation of Cu-clusters was mainly controlled by the vacancies introduced during the pre-straining process. The size of Cu-clusters was about 10~20nm at peak aged condition and they had spherical shape.

• Periodical: Materials Science Forum (Volumes 449-452)
• Pages: 517-520
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.449-452.517
• Online since: March 2004
• Authors: In Gon Kim, Yang Do Kim, In Bae Kim
• Keywords: Aging Treatment, Cu Containing Steel, Hot Rolled Steel Sheet, Post Heat Treatment, Precipitation of Cu-Cluster, Pre-Strain, Tensile Strength

References

[1] S. R. Goodman, S. S. Brenner and J. R. Low, Jr., Metall. Trans. A, Vol. 4 (1973), p.2363.

[2] K. Osamura, H. Okuda, M. Takashima, K. Asano and M. Furusaka, Materials Trans., Vol. 34 (1993), p.305.

[3] P. J. Othen, M. L. Jenkins, G. D. Smith and W. J. Phythian, Phil. Mag., Vol. 64 (1991), p.283.

[4] R. Onodera and N. Mizui, Tetsu-to-Hagane, Vol. 79 (1993), p.53.

[5] S. Harper, Phys. Rev., Vol. 83 (1951), p.709.
