An Experimental Study on 3D Forming of Sheet Metal Using Plasma Arc

Abstract:

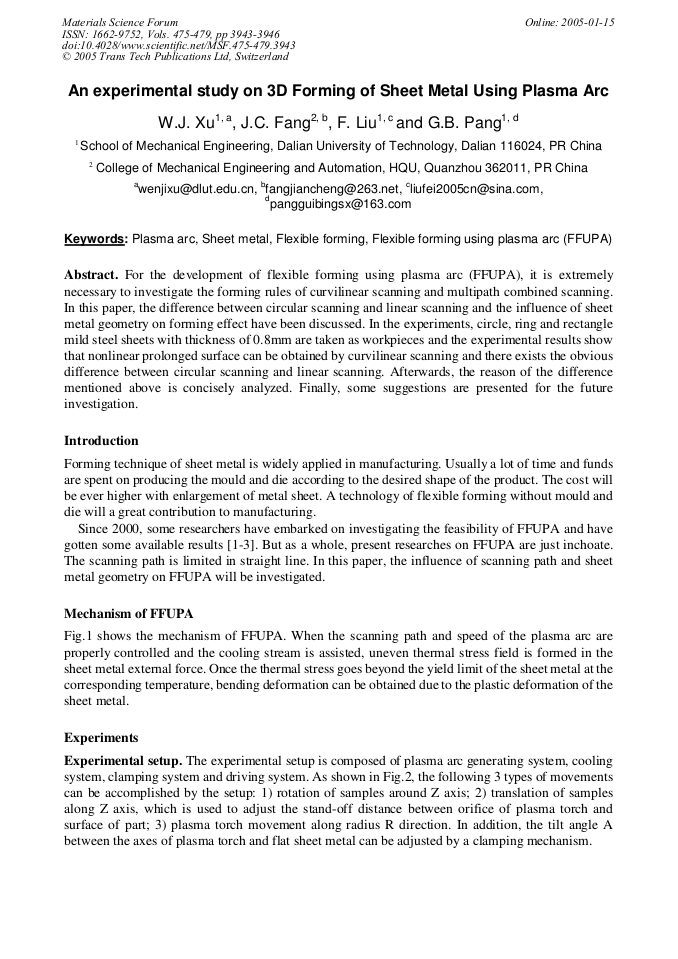

Article Preview

For the development of flexible forming using plasma arc (FFUPA), it is extremely necessary to investigate the forming rules of curvilinear scanning and multipath combined scanning. In this paper, the difference between circular scanning and linear scanning and the influence of sheet metal geometry on forming effect have been discussed. In the experiments, circle, ring and rectangle mild steel sheets with thickness of 0.8mm are taken as workpieces and the experimental results show that nonlinear prolonged surface can be obtained by curvilinear scanning and there exists the obvious difference between circular scanning and linear scanning. Afterwards, the reason of the difference mentioned above is concisely analyzed. Finally, some suggestions are presented for the future investigation.

Info:

Periodical:

Materials Science Forum (Volumes 475-479)

Main Theme:

Edited by:

Z.Y. Zhong, H. Saka, T.H. Kim, E.A. Holm, Y.F. Han and X.S. Xie

Pages:

3943-3946

DOI:

10.4028/www.scientific.net/MSF.475-479.3943

Citation:

W. J. Xu et al., "An Experimental Study on 3D Forming of Sheet Metal Using Plasma Arc", Materials Science Forum, Vols. 475-479, pp. 3943-3946, 2005

Online since:

January 2005

Export:

Price:

$35.00

[1] A.T. Male, C.X. Pan, Y.M. Chen and etal: Ann. CIRP Vol. 49 (2000), p.213.

[2] A.T. Male, Y.M. Chen, C. Pan and Y.M. Zhang: J. Mater. Proces. Tech. Vol. 135 (2003), p.340.

[3] W.J. Xu, H.W. Qu, J.C. Fang and T. Wang: China Mech. Eng. Vol. 15 (2004), p.543 (in Chinese).
