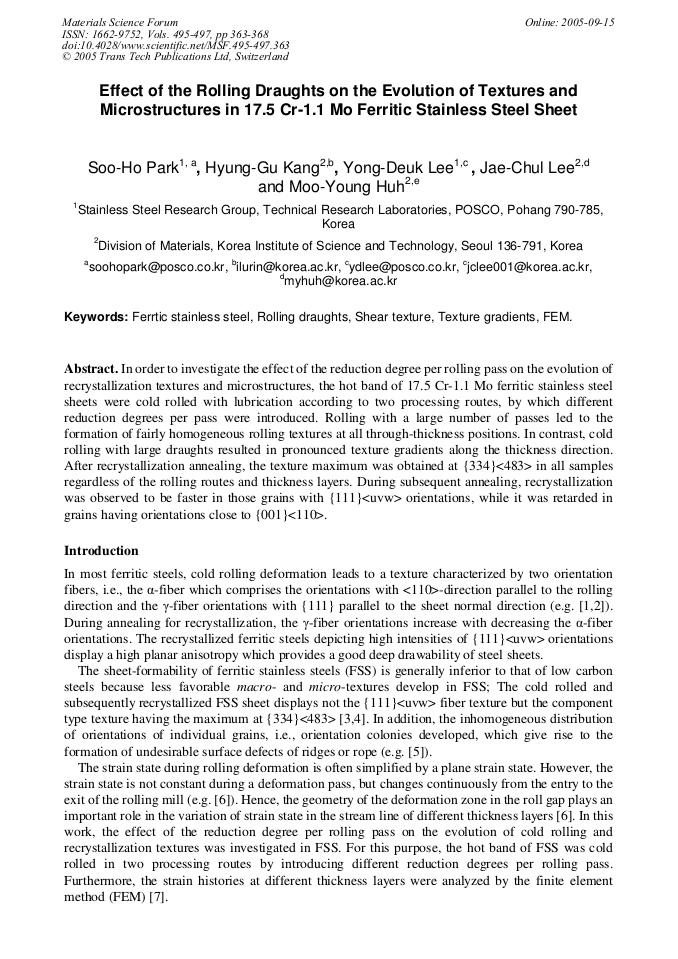

Effect of the Rolling Draughts on the Evolution of Textures and Microstructures in 17.5 Cr-1.1 Mo Ferritic Stainless Steel Sheet

Abstract:

Article Preview

In order to investigate the effect of the reduction degree per rolling pass on the evolution of recrystallization textures and microstructures, the hot band of 17.5 Cr-1.1 Mo ferritic stainless steel sheets were cold rolled with lubrication according to two processing routes, by which different reduction degrees per pass were introduced. Rolling with a large number of passes led to the formation of fairly homogeneous rolling textures at all through-thickness positions. In contrast, cold rolling with large draughts resulted in pronounced texture gradients along the thickness direction. After recrystallization annealing, the texture maximum was obtained at {334}<483> in all samples regardless of the rolling routes and thickness layers. During subsequent annealing, recrystallization was observed to be faster in those grains with {111} orientations, while it was retarded in grains having orientations close to {001}<110>.

Info:

Periodical:

Materials Science Forum (Volumes 495-497)

Edited by:

Paul Van Houtte and Leo Kestens

Pages:

363-368

DOI:

10.4028/www.scientific.net/MSF.495-497.363

Citation:

S. H. Park et al., "Effect of the Rolling Draughts on the Evolution of Textures and Microstructures in 17.5 Cr-1.1 Mo Ferritic Stainless Steel Sheet ", Materials Science Forum, Vols. 495-497, pp. 363-368, 2005

Online since:

September 2005

Export:

Price:

$35.00

In order to see related information, you need to Login.

In order to see related information, you need to Login.
