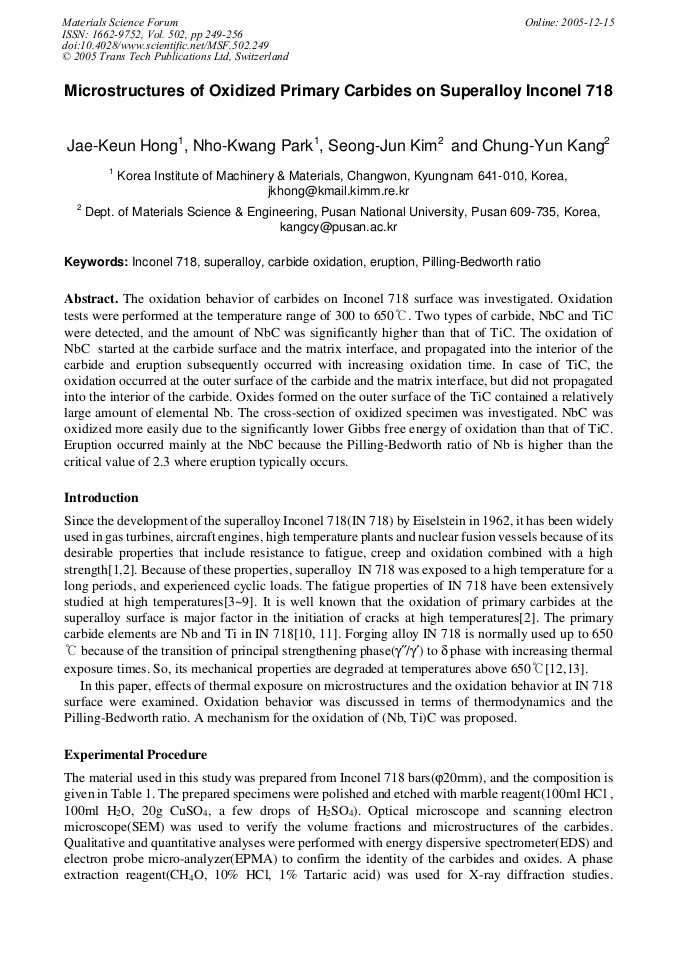

Microstructures of Oxidized Primary Carbides on Superalloy Inconel 718

Abstract:

The oxidation behavior of carbides on Inconel 718 surface was investigated. Oxidation tests were performed at the temperature range of 300 to 650°C. Two types of carbide, NbC and TiC were detected, and the amount of NbC was significantly higher than that of TiC. The oxidation of NbC started at the carbide surface and the matrix interface, and propagated into the interior of the carbide and eruption subsequently occurred with increasing oxidation time. In case of TiC, the oxidation occurred at the outer surface of the carbide and the matrix interface, but did not propagated into the interior of the carbide. Oxides formed on the outer surface of the TiC contained a relatively large amount of elemental Nb. The cross-section of oxidized specimen was investigated. NbC was oxidized more easily due to the significantly lower Gibbs free energy of oxidation than that of TiC. Eruption occurred mainly at the NbC because the Pilling-Bedworth ratio of Nb is higher than the critical value of 2.3 where eruption typically occurs.

• Periodical: Materials Science Forum (Volume 502)
• Pages: 249-256
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.502.249
• Online since: December 2005
• Authors: Jae Keun Hong, Nho Kwang Park, Seong Jun Kim, Chung Yun Kang
• Keywords: Carbide Oxidation, Eruption, Inconel 718, Pilling-Bedworth Ratio, Superalloy

References

[1] E. A. Loria : J. of Metals, July (1988), p.36.

[2] T. Connolley, M.J. Starink and P.A.S. Reed : Proceeding of 9th International Symposium on Superalloys, TMS, (2000), p.435.

[3] L. A. James : Proceeding of Superalloy 718 conference, TMS (1989), p.499.

[4] H. Ghonem, T. Nicholas and A. Pineau : Fatigue Fract. Eng. Mater. Struct., 16 (1993), p.565.

[5] M. Clavel and A. Pineau : Metall. Trans., A 9 (1978), p.471.

[6] J. P. Pedron and A. Pineau : Mater. Sci. & Eng., 56 (1982), p.143.

[7] L. A. James : Eng. Fract. Mechanics, 25 (1986), p.305.

[8] S. Floreen and R. H. Kane : Fatigue Fract. Eng. Mater. Struct., 2 (1980), p.401.

[9] H. H. Smith and D. J. Michel : Metall. Trans., A 17 (1986), p.370.

[10] S. Shimada and M. Inagaki, Solid State Ionics 63-65(1993), pp.312-317.

[11] T. Connolley, P.A.S. Reed and M.J. Starink : Mater. Sci. Eng., A340 (2003), p.139.

[12] J. F. Radavich : Superalloys 718, 625, 706, TMS, (1997), p.17.

[13] F. Alexandre, S. Deyber and A. Pineau : Scripta Mater. 50 (2004), p.25.

[14] Mars G. Fontana : Corrosion Engineering, 3rd ed, McGraw-Hill (1986), pp.505-506.

[15] M. Gao, D. J. Dwyer and R. P. Wei : Scripta Mater. 32 (1995), p.1169.

[16] C. F. Miller, G. W. Simmons and R. P. Wei : Scripta Mater. 42 (2000), P. 227.
