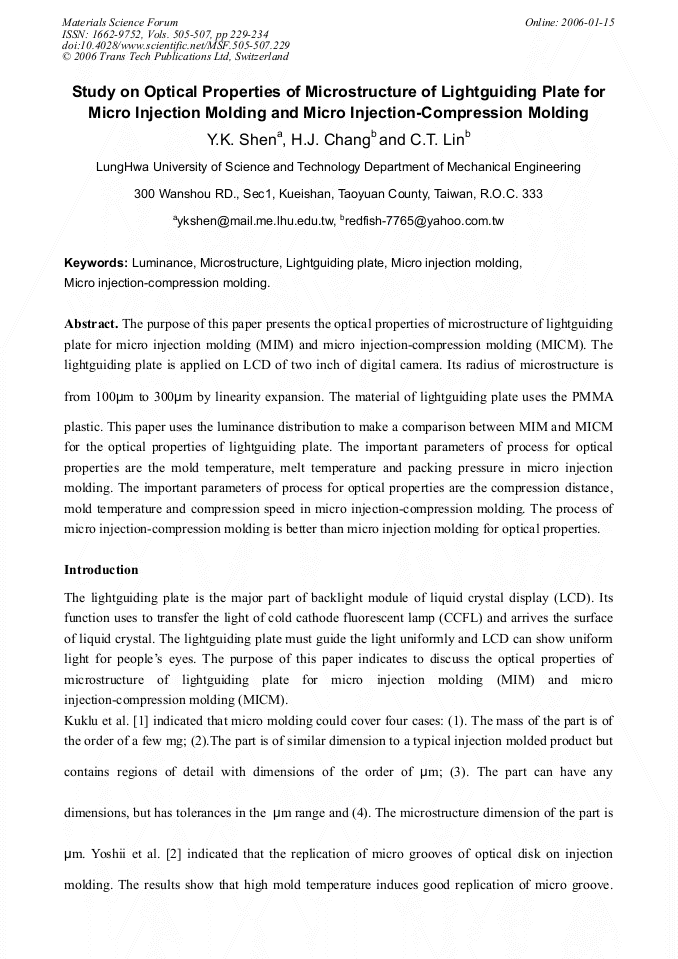

Study on Optical Properties of Microstructure of Lightguiding Plate for Micro Injection Molding and Micro Injection-Compression Molding

Abstract:

The purpose of this paper presents the optical properties of microstructure of lightguiding plate for micro injection molding (MIM) and micro injection-compression molding (MICM). The lightguiding plate is applied on LCD of two inch of digital camera. Its radius of microstructure is from 100μm to 300μm by linearity expansion. The material of lightguiding plate uses the PMMA plastic. This paper uses the luminance distribution to make a comparison between MIM and MICM for the optical properties of lightguiding plate. The important parameters of process for optical properties are the mold temperature, melt temperature and packing pressure in micro injection molding. The important parameters of process for optical properties are the compression distance, mold temperature and compression speed in micro injection-compression molding. The process of micro injection-compression molding is better than micro injection molding for optical properties.

You might also be interested in these eBooks

Progress on Advanced Manufacture for Micro/Nano Technology 2005

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 505-507)

Pages:

229-234

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.505-507.229

Citation:

Cite this paper

Online since:

January 2006

Authors:

Yung Kang Shen, H.J. Chang, C.T. Lin

Keywords:

Lightguiding Plate, Luminance, Micro Injection Compression Molding, Micro Injection Moulding, Microstructure

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Kukla C, Loibl H, Detter H, Micro-injection moulding: the aims of a project partnership, Kunststoffe Plastic Europe. 87, 1331-1336 (1998).

Google Scholar

[2] Yoshii M, Kuramoto H, Ochiai Y, Experimental study of the transcription of minute width grooves by injection molding (Ⅱ), Poly Eng Sci. 38(9) 1587-1593 (1998).

DOI: 10.1002/pen.10329

Google Scholar

[3] Su YC, Shan J, Lin LW Implementation and analysis of polymeric microstructure replication by micro injection molding. J Micromech Microeng. l(14) 415-422 (2004).

DOI: 10.1088/0960-1317/14/3/015

Google Scholar

[4] Heckele M, Schomburg WK Review on micro molding of thermoplastic polymers. J Micromech Microeng. l (14) R1-R14 (2004).

DOI: 10.1088/0960-1317/14/3/r01

Google Scholar

[5] Lin HS A digital image-based measurement system for a LCD backlight module. J Auto Tech. l(4) 28-33 (2002).

Google Scholar
