The Effect of Boron on the Sliding Wear Behavior of Iron-Based Hardfacing Alloys for Nuclear Power Plants Valves

Jeng Wan Yoo; Kwon Yeong Lee; Ji Hui Kim; Ki Soo Kim; Seon Jin Kim

doi:10.4028/www.scientific.net/MSF.510-511.562

Paper Titles

Effects of Void Formation within the Pb-Free BGA Solder Balls on the Mechanical Joint Strength
p.546

Interfacial Reaction and Joint Strength on Cu UBM with Pb-Free Flip Chip Solder Bumps
p.550

TEM Observation of Interfacial Reaction Layers Formed Between Pb(Lead)-Free Sn-3.5Ag Solder and ENIG Plated Cu Substrate
p.554

Reliability of Sn-Ag-Cu Flip Chip Package with Underfill under Thermal Shock
p.558

The Effect of Boron on the Sliding Wear Behavior of Iron-Based Hardfacing Alloys for Nuclear Power Plants Valves
p.562

Sliding Wear Behaviors of Steam Generator Tubes in Various Environments
p.566

Fabrication of Lead Free Micro Solder Powder by Melts Dispersion Technique
p.570

Etching Mechanism of Pb-Free Glasses in Acid Solution for Barrier Ribs in Plasma Display Panel
p.574

Thermal Properties of Bi₂O₃-B₂O₃-ZnO Glass System
p.578

HomeMaterials Science ForumMaterials Science Forum Vols. 510-511The Effect of Boron on the Sliding Wear Behavior...

The Effect of Boron on the Sliding Wear Behavior of Iron-Based Hardfacing Alloys for Nuclear Power Plants Valves

Abstract:

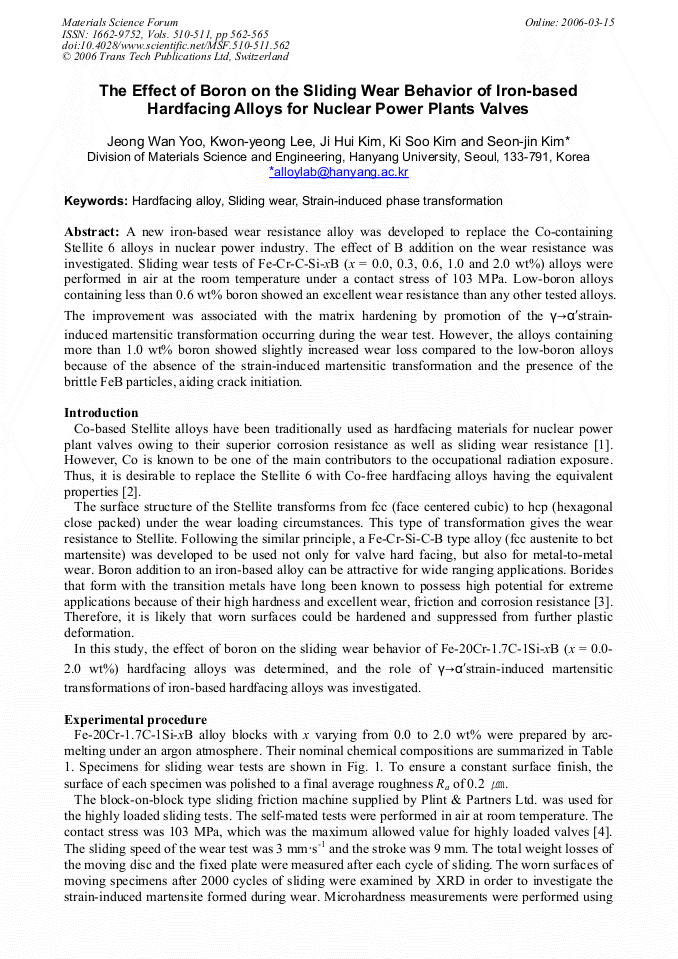

A new iron-based wear resistance alloy was developed to replace the Co-containing Stellite 6 alloys in nuclear power industry. The effect of B addition on the wear resistance was investigated. Sliding wear tests of Fe-Cr-C-Si-xB (x = 0.0, 0.3, 0.6, 1.0 and 2.0 wt%) alloys were performed in air at the room temperature under a contact stress of 103 MPa. Low-boron alloys containing less than 0.6 wt% boron showed an excellent wear resistance than any other tested alloys. The improvement was associated with the matrix hardening by promotion of the γ→α′straininduced martensitic transformation occurring during the wear test. However, the alloys containing more than 1.0 wt% boron showed slightly increased wear loss compared to the low-boron alloys because of the absence of the strain-induced martensitic transformation and the presence of the brittle FeB particles, aiding crack initiation.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 510-511)

Pages:

562-565

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.510-511.562

Citation:

Cite this paper

Online since:

March 2006

Authors:

Jeng Wan Yoo, Kwon Yeong Lee, Ji Hui Kim, Ki Soo Kim, Seon Jin Kim

Keywords:

Hardfacing Alloy, Silding Wear, Strain-Induced Phase Transformation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] K.C. Antony, J. Met., 35 (1983) 52.

Google Scholar

[2] H. Ocken, Nucl. Tech., 68 (1985) 18.

Google Scholar

[3] Erdemir A, Cheng CC., Ultramicroscopy, 29 (1989) 266.

Google Scholar

[4] H. Ocken, Cobalt reduction guidelines, Rep. EPRI NP-6737, Electric Power Research Institute, March (1990).

Google Scholar

[5] B. M, Kapadia, Hardenability Concepts with Applications to Steel, AIME (1978) 448.

Google Scholar

[6] M. Tayal, K. Mukherjee, J. Mater. Sci., 29 (1994) 5699. Fig. 6 Optical micrographs of the wear track of 2. 0 wt% boron-added alloy after 2000 cycles of test at 25℃.

Google Scholar
