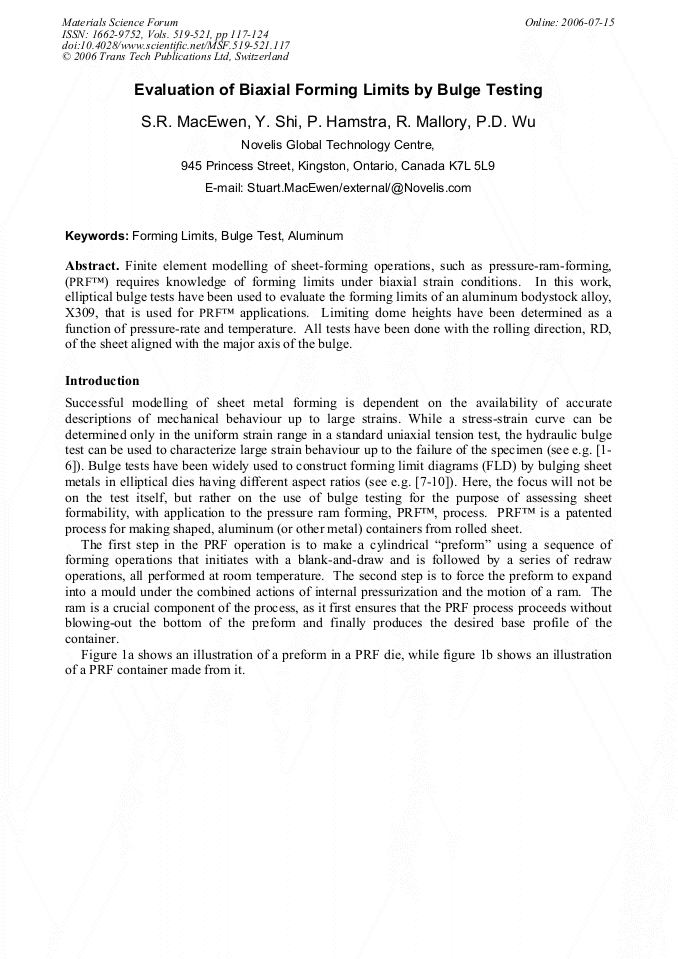

Evaluation of Biaxial Forming Limits by Bulge Testing

Abstract:

Finite element modelling of sheet-forming operations, such as pressure-ram-forming, (PRF™) requires knowledge of forming limits under biaxial strain conditions. In this work, elliptical bulge tests have been used to evaluate the forming limits of an aluminum bodystock alloy, X309, that is used for PRF™ applications. Limiting dome heights have been determined as a function of pressure-rate and temperature. All tests have been done with the rolling direction, RD, of the sheet aligned with the major axis of the bulge.

• Periodical: Materials Science Forum (Volumes 519-521)
• Pages: 117-124
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.519-521.117
• Online since: July 2006
• Authors: S.R. MacEwen, Y. Shi, P. Hamstra, R. Mallory, Pei Dong Wu
• Keywords: Aluminum (Al), Bulge Test, Forming Limit

References

[1] P.B. Mellor: J. Mech. Phys. Solids Vol. 5 (1956), p.41.

[2] A.J. Rant-Eskola: Int. J. Mech. Sci. Vol. 21 (1979), p.457.

[3] M.F. Ilahi, A. Parmar and P.B. Mellor: Int. J. Mech. Sci. Vol. 23 (1981), p.221.

[4] D.W.A. Rees: J. Mater. Proc. Technol. Vol. 40 (1994), p.173.

[5] M. Atkinson: Int. J. Mech. Sci. Vol. 39 (1997), p.761.

[6] D.W.A. Rees: Meas. Sci. Technol. Vol. 12 (2001), p.97.

[7] M.I. Youslf, J.L. Duncan and W. Johnson: Int. J. Mech. Sci. Vol. 12 (1970), p.959.

[8] H. van Minh, R. Sowerby and J.L. Duncan: Int. J. Mech. Sci. Vol. 16 (1974), p.31.

[9] D.W.A. Rees: Int. J. Mech. Sci. Vol. 37 (1995), p.373.

[10] D.W.A. Rees: J. Mater. Proc. Technol. Vol. 92-93 (1999), p.508.

[11] U.F. Kocks and H. Mecking: Prog. Mater. Sci. Vol. 48 (2003), p.171.
