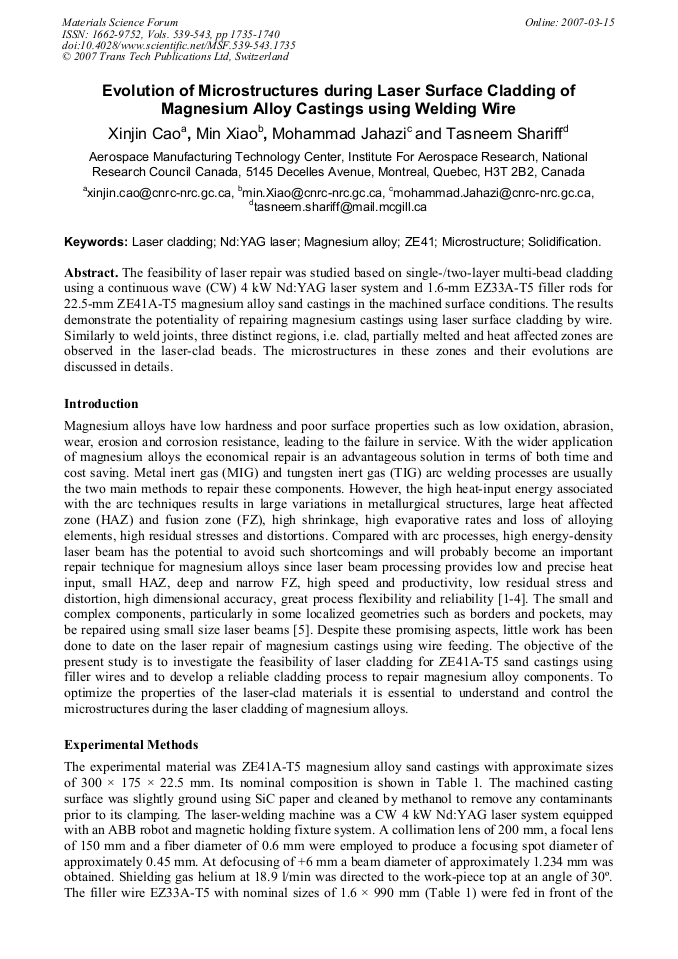

Evolution of Microstructures during Laser Surface Cladding of Magnesium Alloy Castings Using Welding Wire

Abstract:

The feasibility of laser repair was studied based on single-/two-layer multi-bead cladding using a continuous wave (CW) 4 kW Nd:YAG laser system and 1.6-mm EZ33A-T5 filler rods for 22.5-mm ZE41A-T5 magnesium alloy sand castings in the machined surface conditions. The results demonstrate the potentiality of repairing magnesium castings using laser surface cladding by wire. Similarly to weld joints, three distinct regions, i.e. clad, partially melted and heat affected zones are observed in the laser-clad beads. The microstructures in these zones and their evolutions are discussed in details.

• Periodical: Materials Science Forum (Volumes 539-543)
• Pages: 1735-1740
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.539-543.1735
• Online since: March 2007
• Authors: Xin Jin Cao, Min Xiao, Mohammad Jahazi, Tasneem Shariff
• Keywords: Laser Cladding, Magnesium Alloy, Microstructure, Nd:YAG Laser, Solidification, ZE41

References

[1] X. Cao, M. Jahazi, J.P. Immarigeon and W. Wallace: J. Materials Processing Technology Vol. 171 (2006), p.188.

[2] X. Cao, M. Xiao, M. Jahazi and Y.L. Lin, in: Proc. 2nd Int. Symp. On Aerospace Materials and Manufacturing: Development, Testing, and Life Cycle Issues - Honoring William Wallace, edited by P.C. Patnaik, M. Elboujdaini, M. Jahazi and J. Luo, The Canadian Institute of Mining, Metallurgy and Petroleum, Montreal, Canada (2004).

[3] X. Cao, M. Xiao, M. Jahazi and J.P. Immarigeon: Materials Manufacturing Processes Vol. 20 (2005), p.987.

[4] X. Cao, M. Xiao, M. Jahazi and Y.L. Lin, in: Magnesium Technology 2005, edited by N.R. Neelameggham, H.I. Kaplan and B.R. Powell, TMS (2005) p.441.

[5] E. Capello, D. Colombo and B. Previtali: J. Materials Processing Technology Vol. 164-165 (2005), p.990.

[6] ǿ. Grong: Metallurgical Modelling of Welding, 2nd edition (The Institute of Materials, London, 1997).

[7] J.A. Brook and K.W. Mahin, in: Welding: Theory and Practice, edited by D.L. Olson, R. Dixon and A.L. Liby, Elsevier Science Publisher B.V. (1990), p.35.

[8] C. Bezencon, A. Schnell and W. Kurz: Scripta Materialia Vol. 49 (2003), p.705.

[9] M.J. Cieslak, in: 3rd Int. Conf. on Trends in Welding Research, Gatlinburg, TN, June 1-5, 1992; p.223.

[10] R. Villar: Int. J. of Powder Metallurgy Vol. 37 (2001), p.31.

[11] M.J. Miles, in: 33rd Annual National Forum of The American Helicopter Society, Washington, D.C., May (1977).

[12] J.H. Dudas and F.R. Collins: Welding J. Vol. 45 (1966), p. 241S.
