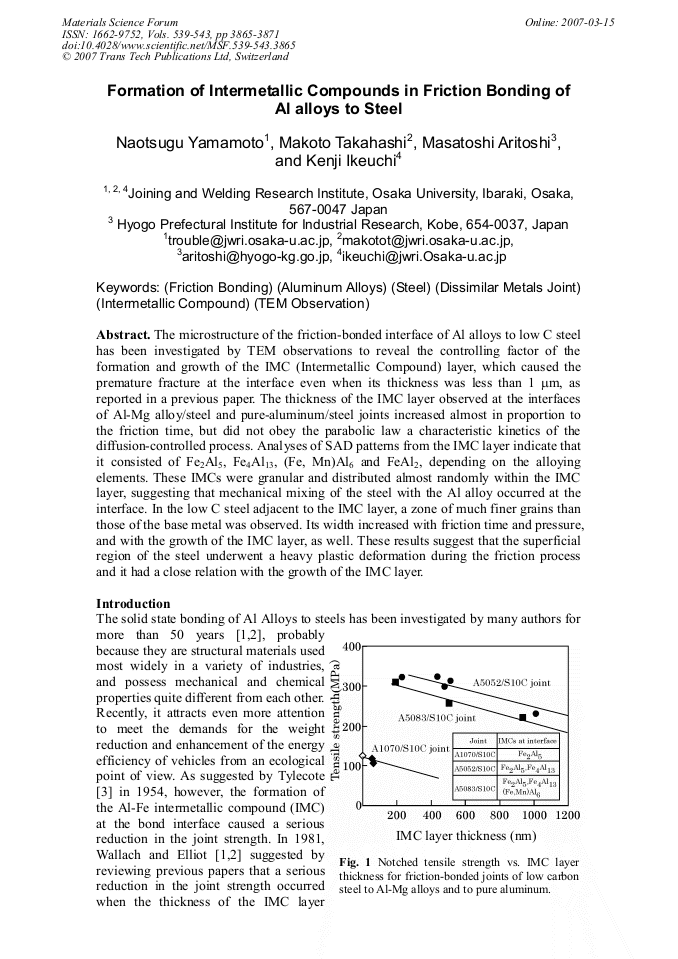

Formation of Intermetallic Compounds in Friction Bonding of Al Alloys to Steel

Abstract:

The microstructure of the friction-bonded interface of Al alloys to low C steel has been investigated by TEM observations to reveal the controlling factor of the formation and growth of the IMC (Intermetallic Compound) layer, which caused the premature fracture at the interface even when its thickness was less than 1 μm, as reported in a previous paper. The thickness of the IMC layer observed at the interfaces of Al-Mg alloy/steel and pure-aluminum/steel joints increased almost in proportion to the friction time, but did not obey the parabolic law a characteristic kinetics of the diffusion-controlled process. Analyses of SAD patterns from the IMC layer indicate that it consisted of Fe2Al5, Fe4Al13, (Fe, Mn)Al6 and FeAl2, depending on the alloying elements. These IMCs were granular and distributed almost randomly within the IMC layer, suggesting that mechanical mixing of the steel with the Al alloy occurred at the interface. In the low C steel adjacent to the IMC layer, a zone of much finer grains than those of the base metal was observed. Its width increased with friction time and pressure, and with the growth of the IMC layer, as well. These results suggest that the superficial region of the steel underwent a heavy plastic deformation during the friction process and it had a close relation with the growth of the IMC layer.

• Periodical: Materials Science Forum (Volumes 539-543)
• Pages: 3865-3871
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.539-543.3865
• Online since: March 2007
• Authors: Naotsugu Yamamoto, Makoto Takahashi, Masatoshi Aritoshi, Kenji Ikeuchi
• Keywords: Aluminium Alloy, Dissimilar Metals Joint, Friction Bonding, Intermetallic Compound (IMC), Steel, TEM Observation

References

[1] S. Elliott and E.R. Wallach: Joining aluminium to steel Part 1-Diffusion bonding, Metal Construction, (1981), pp.167-171.

[2] S. Elliott and E.R. Wallach: Joining aluminium to steel Part 2-Friction bonding, Metal Construction, (1981), pp.221-225.

[3] R.F. Tylecote: The Solid Phase Welding of Metals, Edward Arnold Ltd., London, (1968), p.154.

[4] S. Fukumoto, T. Ono, H. Tsubakino, M. Aritoshi, T. Tomita and K. Okita�Formation Process of Reaction Layer between Aluminum Alloys and Stainless Steel by Friction Welding�Journal of Light Metal & construction�40(2002), pp.22-28. (in Japanese).

DOI: 10.1080/09507110209549641

[5] M. Yilmaz and M. Acet: Interface properties of aluminum/steel friction-welded components, Materials Characterization, 49(2003), pp.421-429.

DOI: 10.1016/s1044-5803(03)00051-2

[6] A. Hasui, M. Ogawa and H. Tanaka: Friction Welding of Aluminium and Carbon Steel, Journal of The Japan Welding Society, 46(1977), pp.858-862. (in Japanese).

DOI: 10.2207/qjjws1943.46.12_858

[7] M. Kikuchi, H. Takeda and S. Morozumi: Bonding interfaces in friction-and explosive-welded aluminum and steel joints, Journal of Japan Institute of Light Metals, 34(1984), pp.165-173. (in Japanese).

[8] G. Kawai, K. Ogawa, H. Ochi and H. Tokisue: Friction weldability of various aluminum alloy pipe to SUS304 stainless steel pipe, Journal of Japan Institute of Light Metals, 49(1999), pp.83-88. (in Japanese).

DOI: 10.2464/jilm.49.83

[9] G. Kawai, K Ogawa, H. Ochi, and H. Tokisue: Friction Weldability of Aluminum Alloys to Carbon steel, Journal of Light Metal & Construction, 37(1999), pp.295-302. (in Japniese).

[10] S. Fukumoto, H. Tsubakino, K. Okita, M. Aritoshi and T. Tomita: Static joint strength of friction welded joint between aluminium alloys and stainless steel, Welding International, 14(2000), pp.89-93.

DOI: 10.1080/09507110009549145

[11] G. Kawai, K. Ogawa, H. Ochi and H. Tokisue: Friction weldability of aluminium alloys to carbon steel, Welding International, 14(2000), pp.101-107.

DOI: 10.1080/09507110009549147

[12] T. Shinoda and S. Endo: Recent Development of Friction Welding of Aluminium Alloys and Dissimilar Materials, Journal of Light Metal & Construction, 33(1995), pp.321-327. (in Japanese).

[13] T. Shinoda, M. Ogawa, S. Endo, and K. Miyahara: Friction Welding of Aluminum and Plain Low Carbon Steel, Quarterly Journal of The Japan Welding Society, 18(2000), pp.365-372. (in Japanese).

DOI: 10.2207/qjjws.18.365

[14] N. Yamamoto, M. Takahashi, M. Aritoshi and K. Ikeuchi: Effect of intermetallic compound layer on bond strength of friction-bonded interface of Al-Mg 5052 alloy to mild steel, Quarterly Journal of The Japan Welding Society, 23(2005).

DOI: 10.2207/qjjws.23.352

[15] N. Yamamoto, M. Takahashi, M. Aritoshi and K. Ikeuchi: Effect of interfacial layer on bond strength of friction-welded interface of Al-Mg 5083 alloy to mild steel, Quarterly Journal of The Japan Welding Society, 23(2005).

DOI: 10.2207/qjjws.23.496

[16] N. Yamamoto, M. Takahashi, M. Aritoshi and K. Ikeuchi: Effect of intermetallic compound layer on bond strength of friction-welded interface of commercially pure aluminum to mild steel, Quarterly Journal of The Japan Welding Society, 23(2005).

DOI: 10.2207/qjjws.23.622
