On-Line Aging to Improve the Tensile Strength and Conductivity of Cold-Drawing AA6201 Wires

Abstract:

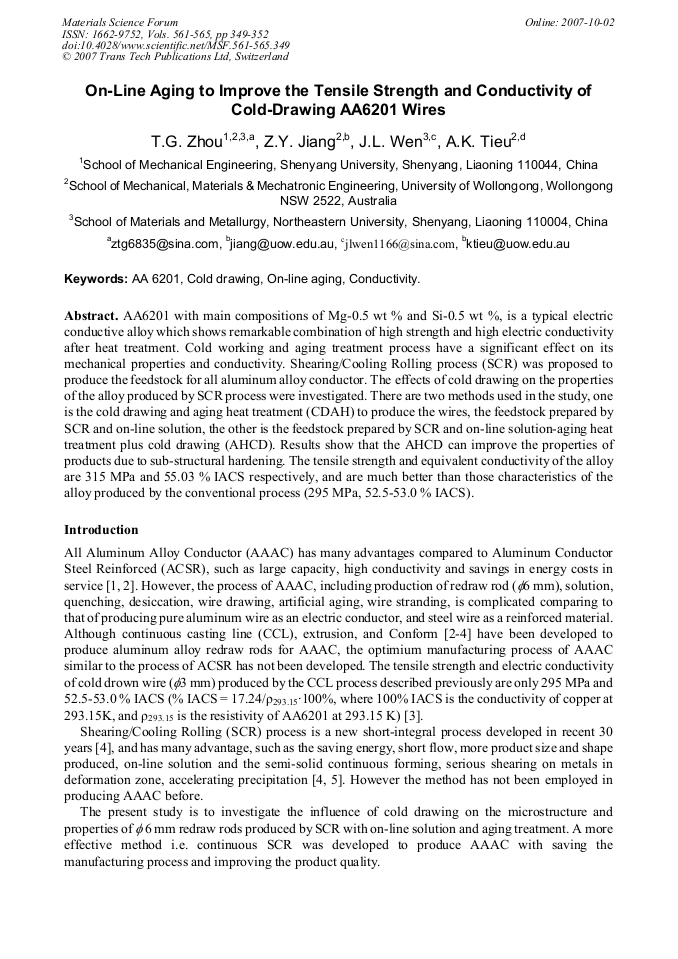

Article Preview

AA6201 with main compositions of Mg-0.5 wt % and Si-0.5 wt %, is a typical electric conductive alloy which shows remarkable combination of high strength and high electric conductivity after heat treatment. Cold working and aging treatment process have a significant effect on its mechanical properties and conductivity. Shearing/Cooling Rolling process (SCR) was proposed to produce the feedstock for all aluminum alloy conductor. The effects of cold drawing on the properties of the alloy produced by SCR process were investigated. There are two methods used in the study, one is the cold drawing and aging heat treatment (CDAH) to produce the wires, the feedstock prepared by SCR and on-line solution, the other is the feedstock prepared by SCR and on-line solution-aging heat treatment plus cold drawing (AHCD). Results show that the AHCD can improve the properties of products due to sub-structural hardening. The tensile strength and equivalent conductivity of the alloy are 315 MPa and 55.03 % IACS respectively, and are much better than those characteristics of the alloy produced by the conventional process (295 MPa, 52.5-53.0 % IACS).

Info:

Periodical:

Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee

Pages:

349-352

Citation:

T. G. Zhou et al., "On-Line Aging to Improve the Tensile Strength and Conductivity of Cold-Drawing AA6201 Wires", Materials Science Forum, Vols. 561-565, pp. 349-352, 2007

Online since:

October 2007

Export:

Price:

$38.00

[1] Y.Z. Zhang, H. Zhang, D.S. Peng and Y.Y. Liu: The Chinese Journal of Nonferrous Metal Vol. 10(4)(2000), p.525.

[2] S. Karabay: Materials & Design Vol. 27(10)(2006), p.821.

[3] S. Karabay, M. Wilma and M. Serene: Journal of Materials Processing Technology Vol. 120(2)(2005), p.138.

[4] T.G. Zhou, Z.Y. Jiang, J.L. Wen, H.B. Xie and A.K. Tieu: Key Engineering Materials Vol. 340-341(2007), p.719.

[5] R.G. Guan, J.L. Wen, X.H. Liu and Y.L. Li: Rare Metals Vol. 21(4)(2002), p.271.

[6] L.Y. Zhang, Z.J. Zhan, Y.Z. Jia, W.K. Wang and B.D. Zhou: Journal of Materials Processing Technology Vol. 187-188(2007), p.791.

[7] M. Murapama and K. Hono: Acta Mater Vol. 5(1999), p.1537.

[8] M. Cai, D.P. Field and G.W. Lorimer: Material Science and Engineering A Vol. 373(2004), p.65.

[9] H. Park and D.N. Lee: Journal of Materials Processing Technology Vol. 113(2001), p.551.
