Oxidation Behavior and Pack Siliconized Oxidation-Resistant Coatings of an Nb-Based Ultrahigh Temperature Alloy

X.P. Guo; L.X. Zhao; Ping Guan; K. Kusabiraki

doi:10.4028/www.scientific.net/MSF.561-565.371

Paper Titles

From Angel Food Cake to Porous Titanium – A Novel Powder Metallurgical Approach for Metallic Foam Utilizing Food Processing and Ceramic Processing Techniques
p.353

Resistance of Thin Al Foam Panels to Deep Indentation
p.357

Preparation of the Al-Cu-Co and Al-Cu-Ni Ternary Intermetallic Powders via a Solid-Liquid Reaction Ball Milling Technique
p.363

Preparation of Ti-Al Intermetallics by Aluminum Melt Infiltration-Diffusion Annealing Technique
p.367

Oxidation Behavior and Pack Siliconized Oxidation-Resistant Coatings of an Nb-Based Ultrahigh Temperature Alloy
p.371

Microstructure and Mechanical Properties of Dual Multi-Phase Intermetallic Alloys Composed of Geometrically Close Packed Ni₃X Structures
p.375

Development of a Second Generation TiAl Turbocharger
p.379

Microstructure and Deformation Behavior of Lamellar Ti-Rich TiAl Crystal with Lotus-Type Aligned Pores
p.383

Microstructures Evolution of a Ni-Base Superalloy after Long-Term Aging at 750°C
p.387

HomeMaterials Science ForumMaterials Science Forum Vols. 561-565Oxidation Behavior and Pack Siliconized...

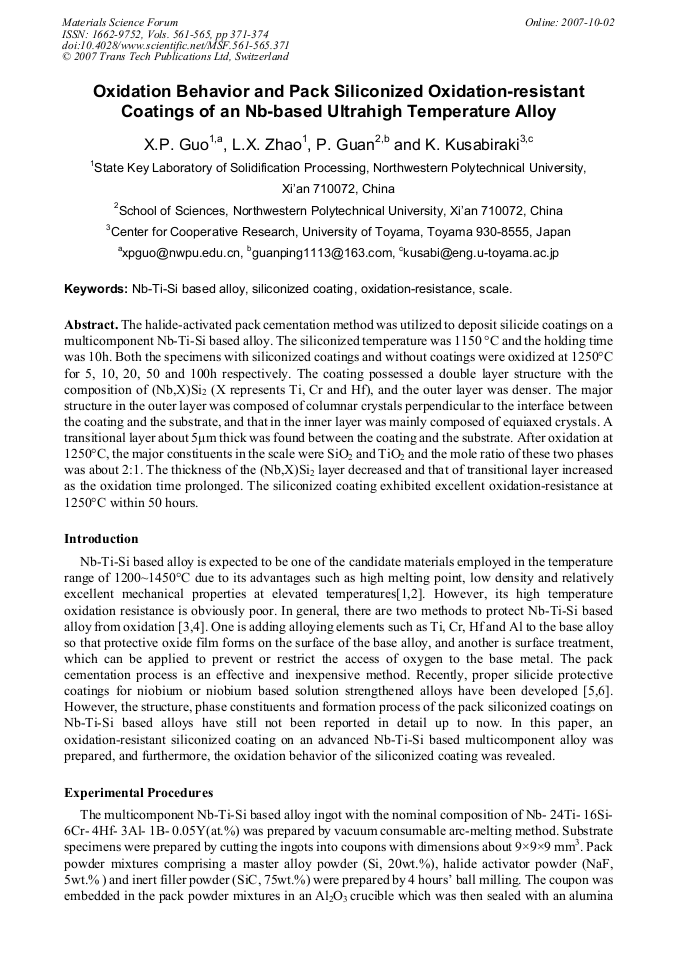

Oxidation Behavior and Pack Siliconized Oxidation-Resistant Coatings of an Nb-Based Ultrahigh Temperature Alloy

Abstract:

The halide-activated pack cementation method was utilized to deposit silicide coatings on a multicomponent Nb-Ti-Si based alloy. The siliconized temperature was 1150 °C and the holding time was 10h. Both the specimens with siliconized coatings and without coatings were oxidized at 1250°C for 5, 10, 20, 50 and 100h respectively. The coating possessed a double layer structure with the composition of (Nb,X)Si2 (X represents Ti, Cr and Hf), and the outer layer was denser. The major structure in the outer layer was composed of columnar crystals perpendicular to the interface between the coating and the substrate, and that in the inner layer was mainly composed of equiaxed crystals. A transitional layer about 5μm thick was found between the coating and the substrate. After oxidation at 1250°C, the major constituents in the scale were SiO2 and TiO2 and the mole ratio of these two phases was about 2:1. The thickness of the (Nb,X)Si2 layer decreased and that of transitional layer increased as the oxidation time prolonged. The siliconized coating exhibited excellent oxidation-resistance at 1250°C within 50 hours.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 561-565)

Pages:

371-374

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.561-565.371

Citation:

Cite this paper

Online since:

October 2007

Authors:

X.P. Guo, L.X. Zhao, Ping Guan, K. Kusabiraki

Keywords:

Microstructure, Nb-Ti-Si Based Alloy, Oxidation Resistance, Scale, Siliconized Coating

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] B.P. Bewlay, M.R. Jackson, J.C. Zhao, et al: Metall. Mater. Trans. A Vol. 34A (2003), p. (2003).

Google Scholar

[2] B.P. Bewlay, M.R. Jackson, J.C. Zhao, et al: MRS Bulletin Vol. 9 (2003), p.646.

Google Scholar

[3] J.R. Nicholls: MRS Bulletin Vol. 9 (2003), p.659.

Google Scholar

[4] J.C. Zhao and J.H. Westbrook: MRS Bulletin Vol. 9 (2003), p.622.

Google Scholar

[5] S. Majumdar, P. Sengupta, G.B. Kale: Surf. Coating Tech. Vol. 200 (2006), p.3713.

Google Scholar

[6] R.O. Suzuki, M. Ishikawa, K. Ono: J. Alloys Comp. Vol. 336 (2002), p.280 ● ■ Fig. 5. Comparison of isothermal oxidation kinetics for silicide coated Nb-Ti-Si based alloy with that of bare Nb-Ti-Si based alloy at 1250°C.

Google Scholar
