Microstructures and Phase Transformations of Ti-50.9at%Ni Alloy Processed by Equal Channel Angular Extrusion at Medium Temperature

Chao Ying Xie; Zhi Guo Fan

doi:10.4028/www.scientific.net/MSF.561-565.877

Paper Titles

A New Method to Produce Superfine and Nano-Sized Fe Powders: Spark Plasma Discharge Process
p.861

Preparing Semisolid Light Alloys by Vibrating Wavelike Sloping Plate Process and Thixoforming
p.865

Optimization of Particle Size and Distribution by Hydrostatic Extrusion
p.869

Synthesis of 3, 3-Biacenaphthene through Coupling Reaction of Acenaphthene Catalyzed by [Bmim]Cl/FeCl₃ Ionic Liquid
p.873

Microstructures and Phase Transformations of Ti-50.9at%Ni Alloy Processed by Equal Channel Angular Extrusion at Medium Temperature
p.877

Effect of Shear Deformation on Deformed Microstructures of Austenitic Grains
p.881

Research on the Blank Selection in the Power Spinning Process of Parts with Transverse Inner Rib
p.885

The Study on the Microstructure Characters of Pure Iron during Cold Rolling by High Energy X-Ray Diffraction
p.889

Distortion Analysis of Aluminum Alloy for Sheet Metal Forming after Solution Treatment
p.893

HomeMaterials Science ForumMaterials Science Forum Vols. 561-565Microstructures and Phase Transformations of...

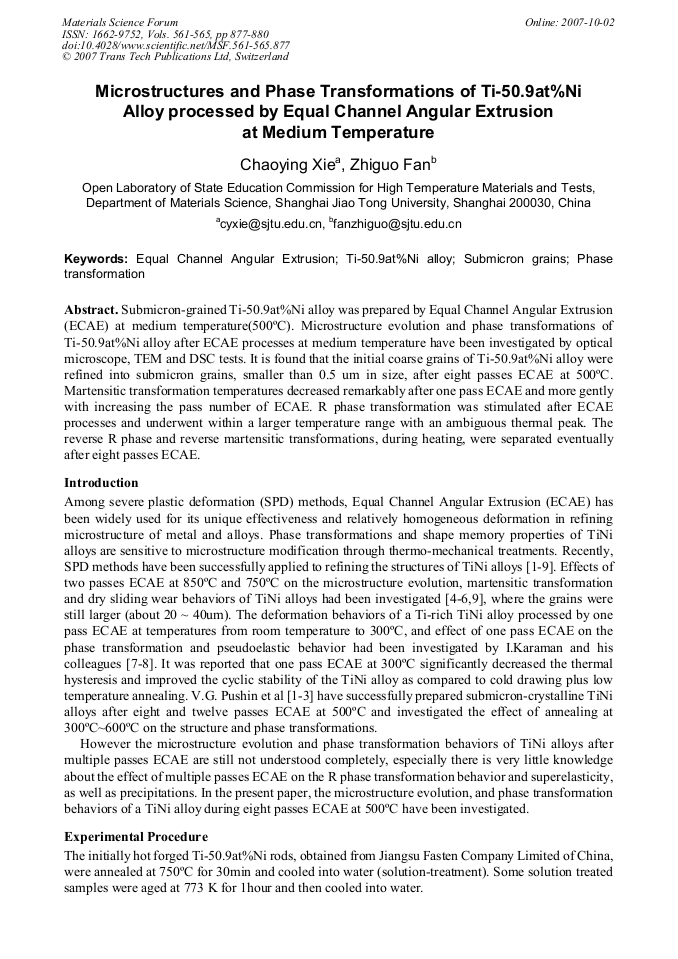

Microstructures and Phase Transformations of Ti-50.9at%Ni Alloy Processed by Equal Channel Angular Extrusion at Medium Temperature

Abstract:

Submicron-grained Ti-50.9at%Ni alloy was prepared by Equal Channel Angular Extrusion (ECAE) at medium temperature(500°C). Microstructure evolution and phase transformations of Ti-50.9at%Ni alloy after ECAE processes at medium temperature have been investigated by optical microscope, TEM and DSC tests. It is found that the initial coarse grains of Ti-50.9at%Ni alloy were refined into submicron grains, smaller than 0.5 um in size, after eight passes ECAE at 500°C. Martensitic transformation temperatures decreased remarkably after one pass ECAE and more gently with increasing the pass number of ECAE. R phase transformation was stimulated after ECAE processes and underwent within a larger temperature range with an ambiguous thermal peak. The reverse R phase and reverse martensitic transformations, during heating, were separated eventually after eight passes ECAE.
