Estimative of the Stacking Fault Energy for a FeNi(50/50) Alloy and a 316L Stainless Steel

Marcos Flavio de Campos; S.A. Loureiro; Daniel Rodrigues; Maria do Carmo Silva; Nelson B. Lima

doi:10.4028/www.scientific.net/MSF.591-593.3

Paper Titles

Committees

Foreword

Estimative of the Stacking Fault Energy for a FeNi(50/50) Alloy and a 316L Stainless Steel
p.3

The Coercivity Mechanisms in Sm(CoFeCuZr)z Nanocrystalline Magnets: Nucleation x Pinning
p.8

Ga-Modified Nanostructured ZnO: Characterization and Application in Dye-Sensitized Solar Cells
p.13

Corrosion Resistance and Cytotoxicity Study of 17-4PH Steels Produced by Conventional Metallurgy and Powder Injection Molding
p.18

Ti-13Nb-13Zr Foams for Surgical Implants
p.24

A Comparison between CoNiCrAlY Bond Coat and Zirconia Plasma Sprayed Coatings on Creep Tests
p.30

Porosity Characterization of Sintered Titanium Scaffolds for Surgical Implants
p.36

HomeMaterials Science ForumMaterials Science Forum Vols. 591-593Estimative of the Stacking Fault Energy for a...

Estimative of the Stacking Fault Energy for a FeNi(50/50) Alloy and a 316L Stainless Steel

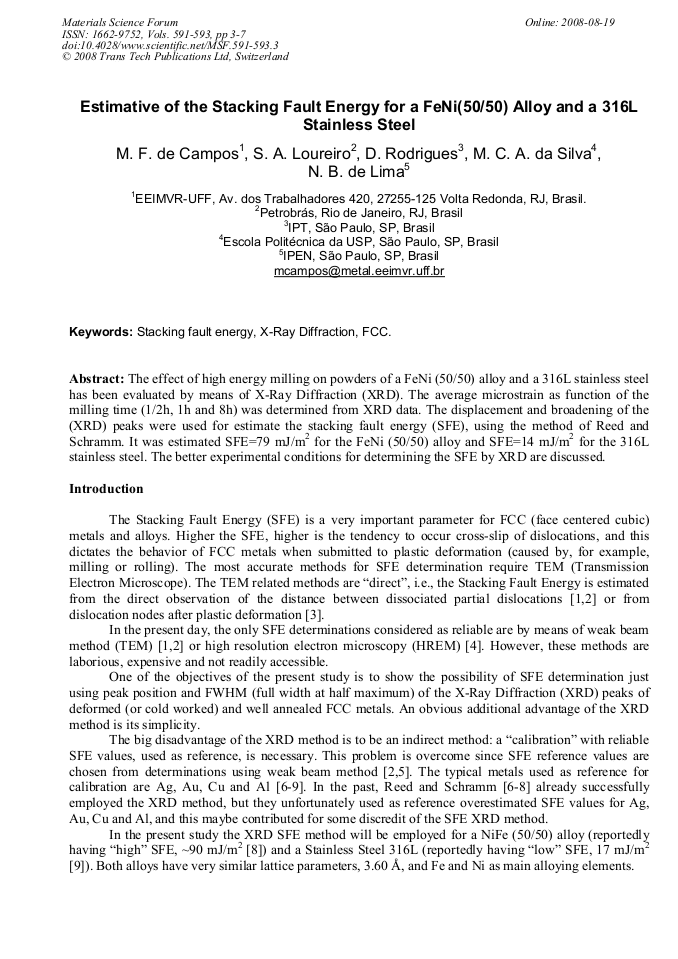

Abstract:

The effect of high energy milling on powders of a FeNi (50/50) alloy and a 316L stainless steel has been evaluated by means of X-Ray Diffraction (XRD). The average microstrain as function of the milling time (1/2h, 1h and 8h) was determined from XRD data. The displacement and broadening of the (XRD) peaks were used for estimate the stacking fault energy (SFE), using the method of Reed and Schramm. It was estimated SFE=79 mJ/m2 for the FeNi (50/50) alloy and SFE=14 mJ/m2 for the 316L stainless steel. The better experimental conditions for determining the SFE by XRD are discussed.
