High Purity Zirconia and Silica Powders via Wet Process: Alkali Fusion of Zircon Sand

Chieko Yamagata; João B. Andrade; Valter Ussui; Nelson B. Lima; José Octavio Armani Paschoal

doi:10.4028/www.scientific.net/MSF.591-593.771

Paper Titles

Morphological and Structural Analysis of Alfa-Al₂O₃ Modified with Zr Prepared by Combustion Reaction
p.750

Synthesis of Potassium Titanate Fibers for Friction Materials
p.755

Synthesis of Silicon Nitride Using Taguchi Planning Methodology
p.760

Obtained of Diamond Nanometric Powders Using High Energy Milling for the Production of Alumina-Diamond Nanocomposites
p.766

High Purity Zirconia and Silica Powders via Wet Process: Alkali Fusion of Zircon Sand
p.771

Combustion Synthesis of NiO/YSZ Composite
p.777

Hydrodynamic Characteristics of Free Rise of Light Spheres and Bubbles in Newtonian and Non-Newtonian Liquids
p.785

Brazilian Bentonites for Geosynthetic Clay Liners (GCL)
p.791

Use of Kaolin Processing Waste for the Production of Mullite Bodies
p.799

HomeMaterials Science ForumMaterials Science Forum Vols. 591-593High Purity Zirconia and Silica Powders via Wet...

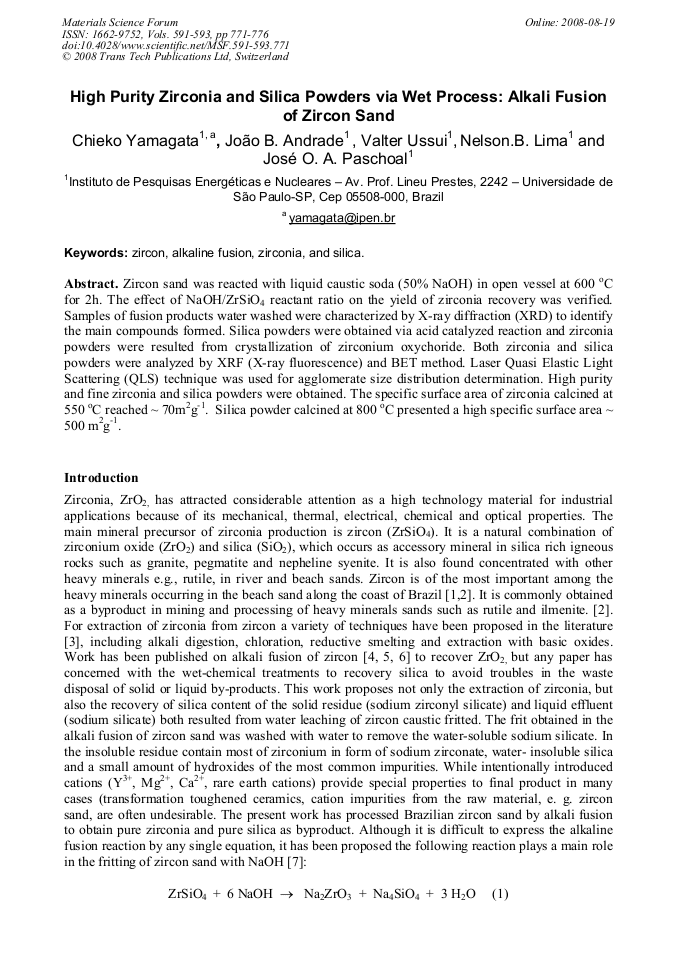

High Purity Zirconia and Silica Powders via Wet Process: Alkali Fusion of Zircon Sand

Abstract:

Zircon sand was reacted with liquid caustic soda (50% NaOH) in open vessel at 600 oC for 2h. The effect of NaOH/ZrSiO4 reactant ratio on the yield of zirconia recovery was verified. Samples of fusion products water washed were characterized by X-ray diffraction (XRD) to identify the main compounds formed. Silica powders were obtained via acid catalyzed reaction and zirconia powders were resulted from crystallization of zirconium oxychoride. Both zirconia and silica powders were analyzed by XRF (X-ray fluorescence) and BET method. Laser Quasi Elastic Light Scattering (QLS) technique was used for agglomerate size distribution determination. High purity and fine zirconia and silica powders were obtained. The specific surface area of zirconia calcined at 550 oC reached ~ 70m2g-1. Silica powder calcined at 800 oC presented a high specific surface area ~ 500 m2g-1.
