A Finite Element Investigation into the Changing Channel Angular Extrusion of Brass Alloy

Abstract:

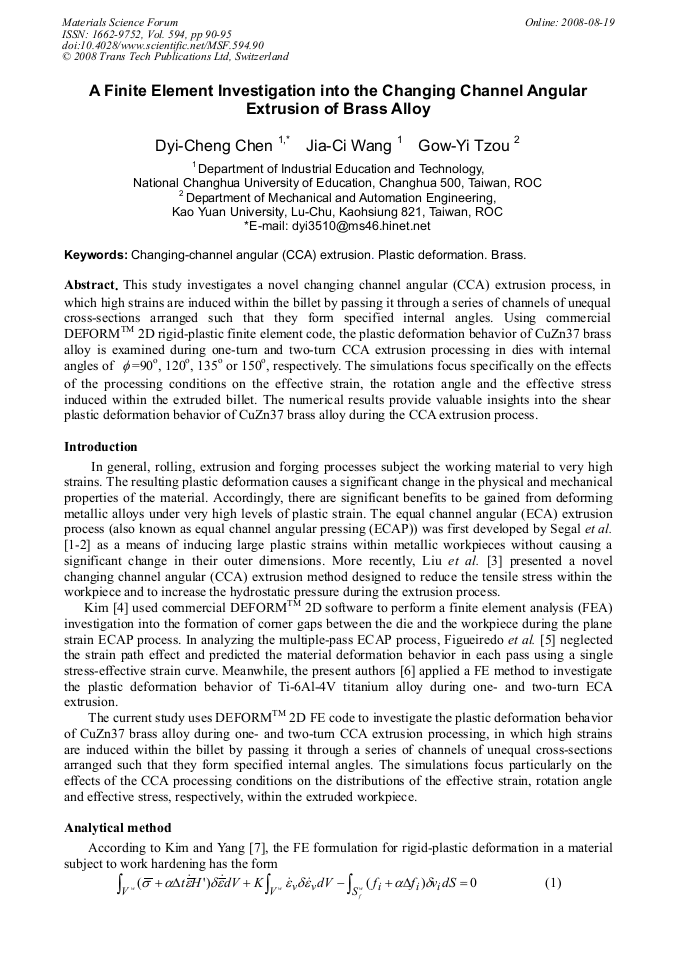

Article Preview

This study investigates a novel changing channel angular (CCA) extrusion process, in which high strains are induced within the billet by passing it through a series of channels of unequal cross-sections arranged such that they form specified internal angles. Using commercial DEFORMTM 2D rigid-plastic finite element code, the plastic deformation behavior of CuZn37 brass alloy is examined during one-turn and two-turn CCA extrusion processing in dies with internal angles of φ =90o, 120o, 135o or 150o, respectively. The simulations focus specifically on the effects of the processing conditions on the effective strain, the rotation angle and the effective stress induced within the extruded billet. The numerical results provide valuable insights into the shear plastic deformation behavior of CuZn37 brass alloy during the CCA extrusion process.

Info:

Periodical:

Main Theme:

Edited by:

Sheng-Jye Hwang and Sen-Yung Lee

Pages:

90-95

DOI:

10.4028/www.scientific.net/MSF.594.90

Citation:

D. C. Chen et al., "A Finite Element Investigation into the Changing Channel Angular Extrusion of Brass Alloy", Materials Science Forum, Vol. 594, pp. 90-95, 2008

Online since:

August 2008

Export:

Price:

$35.00

[1] V.M. Segal, USSR Patent No. 575892 (1977).

[2] V.M. Segal, V.I. Reznikov, A.E. Drobyshevskiy and V.I. Kopylov, Russ. Metall 1(99) (1981).

[3] Z.Y. Liu, G. Liu and Z.R. Wang: Journal of Materials Processing Technology Vol. 102 (2000), p.30.

[4] H.S. Kim: Materials Science and Engineering A Vol. 315 (2001), p.122.

[5] R.B. Figueiredo, I.P. Pinheiro, M.T.P. Aguilar, P.J. Modenesi and P.R. Cetlin: Journal of Materials Processing Technology Vol. 180 (2006), p.30.

[6] D.C. Chen, Y.J. Li and G.Y. Tzou: Key Engineering Materials Vols. 345-346 (2007), p.177.

[7] Y.J. Kim and D.Y. Yang: International Journal of Mechanical Sciences Vol. 27 (1985), p.487. Max. 95. 1 MPa Max. 95. 1 MPa.
