The Controlling Factors in the Content of Cr6+ in Green Strontium Ferrite

Nan Chun Chen; Han Mei Ao; Zhi Liang Zhan

doi:10.4028/www.scientific.net/MSF.610-613.28

Paper Titles

Evaluation of Atmospheric Corrosivity by ACM Technique
p.3

Removal of Cu²⁺ from Aqueous Solution by Alkaline-Activated Konjac Glucomannan
p.9

Synthesis and Characterization of Titania Nanoribbons for Lithium Selective Adsorption
p.14

Multiple Imputation for Missing Data in Life Cycle Inventory
p.21

The Controlling Factors in the Content of Cr⁶⁺ in Green Strontium Ferrite
p.28

Experimental Study on Macro-Kinetics of Flue Gas Desulfurization Using Pyrolusite Pulp by a Double Magnetic Stirred Reactor
p.32

Copper Electrowinning from Gold Plant Cyanide-Containing Solution
p.41

Preparation and Properties of Alginate Salt Fibers: An Inherent Flame-Retardant, Biodegradable Fiber
p.48

Using Demercurated Lighting Phosphor and MSWI Scrubber Residues to Prepare High Performance Plastic Concrete
p.55

HomeMaterials Science ForumMaterials Science Forum Vols. 610-613The Controlling Factors in the Content of Cr6+ in...

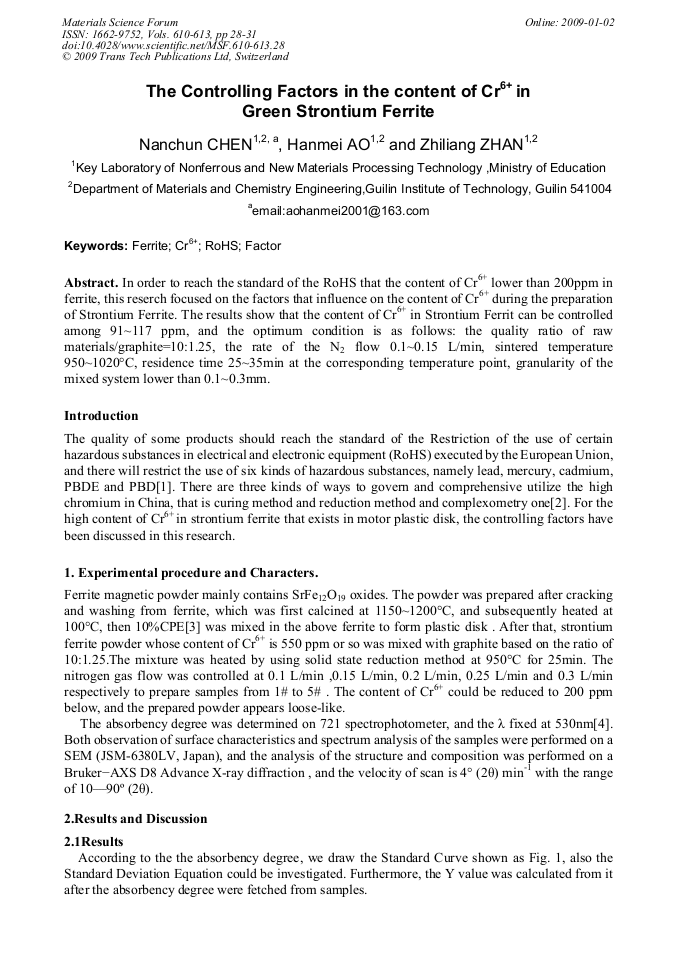

The Controlling Factors in the Content of Cr⁶⁺ in Green Strontium Ferrite

Abstract:

In order to reach the standard of the RoHS that the content of Cr6+ lower than 200ppm in ferrite, this reserch focused on the factors that influence on the content of Cr6+ during the preparation of Strontium Ferrite. The results show that the content of Cr6+ in Strontium Ferrit can be controlled among 91~117 ppm, and the optimum condition is as follows: the quality ratio of raw materials/graphite=10:1.25, the rate of the N2 flow 0.1~0.15 L/min, sintered temperature 950~1020°C, residence time 25~35min at the corresponding temperature point, granularity of the mixed system lower than 0.1~0.3mm.
