Fabrication of Clay Foam Ceramics Using Silicon Carbide and Ferric Oxide as Foaming Agents

Guang Liang Liu; Jian Guang Bai; Jian Feng Yang

doi:10.4028/www.scientific.net/MSF.620-622.777

Paper Titles

Structure Change and Improvement of the Mechanical Properties of Lotus-Type Porous Copper by ECAE Process
p.757

Fabrication and Properties of Pressureless Sintered Si₃N₄/BN Composite Ceramics with La₂O₃-Al₂O₃-Y₂O₃ as Sintering Additives
p.761

Porous Materials with Hybrid Structure Produced by Nitriding Partially-Sintered Silicon
p.765

Abrasive Grain Efficiency and Surface Roughness in Machining Magnesium Alloys by Newly Developed Cup-Type Diamond-Grinding-Wheels
p.769

A Novel Method for the Preparation of Porous SiC
p.773

Fabrication of Clay Foam Ceramics Using Silicon Carbide and Ferric Oxide as Foaming Agents
p.777

Mechanical Behaviour of High Density Polyethylene Based Foams
p.781

Fabrication of Porous Metals with Directional Pores through Solidification of Gas-Dissolved Melt
p.785

Geopolymer Concrete Fabricated by Waste Concrete Sludge with Silica Fume
p.791

HomeMaterials Science ForumMaterials Science Forum Vols. 620-622Fabrication of Clay Foam Ceramics Using Silicon...

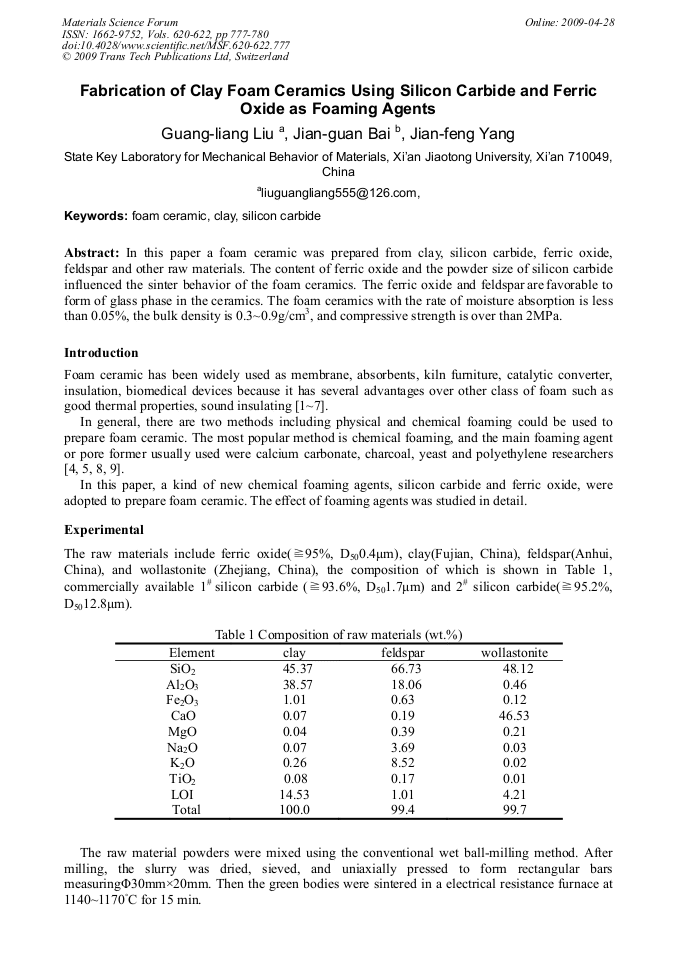

Fabrication of Clay Foam Ceramics Using Silicon Carbide and Ferric Oxide as Foaming Agents

Abstract:

In this paper a foam ceramic was prepared from clay, silicon carbide, ferric oxide, feldspar and other raw materials. The content of ferric oxide and the powder size of silicon carbide influenced the sinter behavior of the foam ceramics. The ferric oxide and feldspar are favorable to form of glass phase in the ceramics. The foam ceramics with the rate of moisture absorption is less than 0.05%, the bulk density is 0.3~0.9g/cm3, and compressive strength is over than 2MPa.
